| Image | Mfr Part # | Series | Package | Product Status | Output Isolation | Internal Switch(s) | Voltage - Breakdown | Topology | Voltage - Supply (Vcc/Vdd) | Duty Cycle | Frequency - Switching |
|---|---|---|---|---|---|---|---|---|---|---|---|
|
LM5021NA-2/NOPB
IC OFFLINE SWITCH MULT TOP 8DIP
|
- | Tube | Obsolete | Isolated | No | - | Flyback, Forward | 8V ~ 30V | 50% | Up to 1MHz |
|
UCC28632D
IC OFFLINE SWITCH FLYBACK 7SOIC
|
- | Bulk | Active | Isolated | No | - | Flyback | 8V ~ 20V | 70% | 200Hz ~ 120kHz |
|

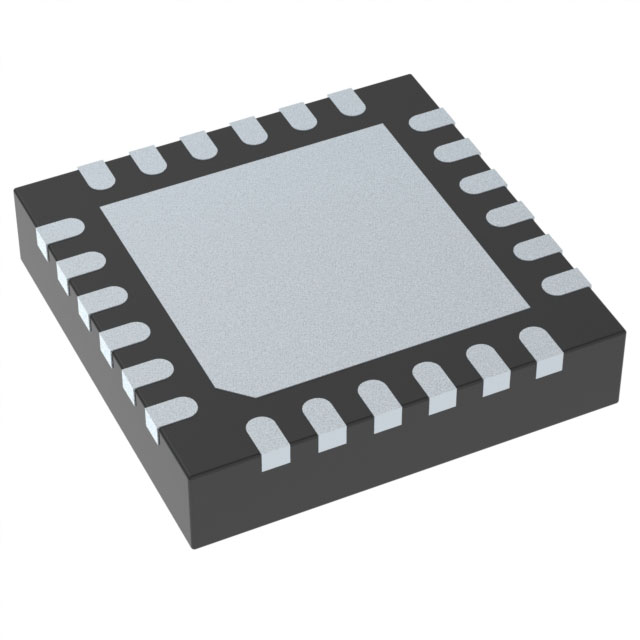

UCC28782ADRTWR
IC ISOLATION
|
- | Tape & Reel (TR) | Active | Isolated | Yes | - | Boost, Flyback | 14V ~ 34V | - | 420kHz |
|
UCC3809PTR-2
IC OFFLINE SW MULT TOP 8VSSOP
|
- | Tape & Reel (TR) | Active | Isolated | No | - | Boost, Buck, Flyback, Forward | 8V ~ 19V | 70% | 1MHz |
|
UCC3808ADTR-1G4
IC OFFLINE SWITCH MULT TOP 8SOIC
|
- | Tape & Reel (TR) | Discontinued at | Isolated | - | - | Boost, Buck, Half-Bridge, Push-Pull | 8.3V ~ 15V | 49% | 1MHz |
|
UCC28221DRG4
IC OFFLINE SWITCH FLYBACK 16SOIC
|
- | Tape & Reel (TR) | Obsolete | Isolated | No | - | Flyback | 8.4V ~ 14.5V | 75% | 2MHz |
|
|
UCC28730DR
IC OFFLINE SWITCH FLYBACK 7SOIC
|
- | Tape & Reel (TR) | Active | Isolated | No | - | Flyback | 9V ~ 35V | - | 32Hz ~ 83kHz |
|
UCC28742DBVT
IC OFFLINE SW FLYBACK SOT23-6
|
- | Tape & Reel (TR) | Active | Isolated | No | - | Flyback | 9V ~ 35V | 99% | 80kHz |
|
|
UCC28711D
IC OFFLINE SWITCH FLYBACK 7SOIC
|
- | Bulk | Active | Isolated | No | - | Flyback | 9V ~ 35V | - | 680Hz ~ 100kHz |
|
UCC28781QRTWRQ1
AUTOMOTIVE, HIGH-DENSITY, ZERO-V
|
Automotive, AEC-Q100 | Tape & Reel (TR) | Active | Isolated | No | - | Flyback, Secondary Side SR | 14V ~ 34V | - | 500kHz |
|
UC3865DW
IC OFFLINE SW MULT TOP 16SOIC
|
- | Tube | Active | Non-Isolated | Yes | - | Full-Bridge, Half-Bridge, Push-Pull | 10.5V ~ 22V | - | 10kHz ~ 1MHz |
|
|
UCC28610D
IC OFFLINE SWITCH FLYBACK 8SOIC
|
- | Tube | Active | Isolated | No | - | Flyback | 8V ~ 25V | - | 30kHz ~ 133kHz |
