| Image | Mfr Part # | Series | Package | Product Status | Output Isolation | Internal Switch(s) | Voltage - Breakdown | Topology | Voltage - Supply (Vcc/Vdd) | Duty Cycle | Frequency - Switching |
|---|---|---|---|---|---|---|---|---|---|---|---|
|

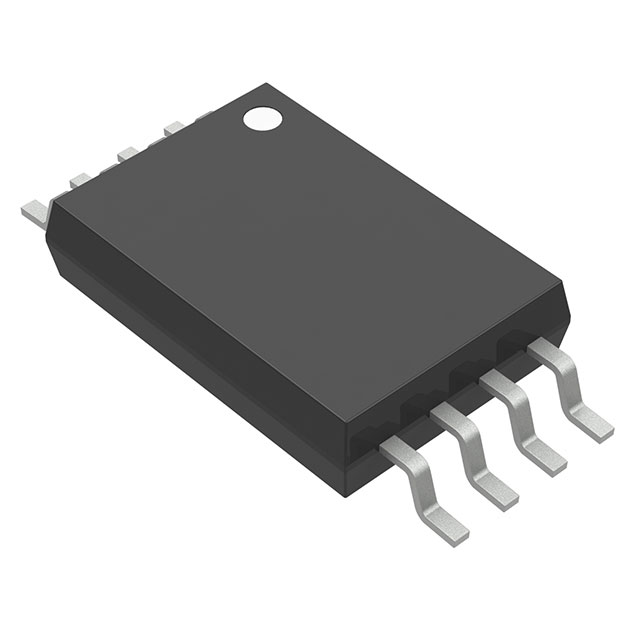

UCC38085PW
IC OFFLINE SW PUSH-PULL 8TSSOP
|
- | Tube | Obsolete | Isolated | No | - | Push-Pull | 8.3V ~ 15V | 49% | 50kHz ~ 1MHz |
|
UC2865N
IC OFFLINE SWITCH MULT TOP 16DIP
|
- | Tube | Obsolete | Non-Isolated | Yes | - | Full-Bridge, Half-Bridge, Push-Pull | 10.5V ~ 22V | - | 10kHz ~ 1MHz |
|
|
UCC3580N-4G4
IC OFFLINE SWITCH MULT TOP 16DIP
|
- | Tube | Obsolete | Isolated | No | - | Flyback, Forward | 8.5V ~ 15V | 66% | - |
|
UCC2580D-4
IC OFFLINE SW MULT TOP 16SOIC
|
- | Bulk | Active | Isolated | No | - | Flyback, Forward | 8.5V ~ 15V | 66% | - |
|
UC3877DWPTR
IC OFFLINE SW FULL-BRDG 28SOIC
|
- | Tape & Reel (TR) | Obsolete | Non-Isolated | - | - | Full-Bridge | 9.5V ~ 20V | 100% | 1MHz |
|

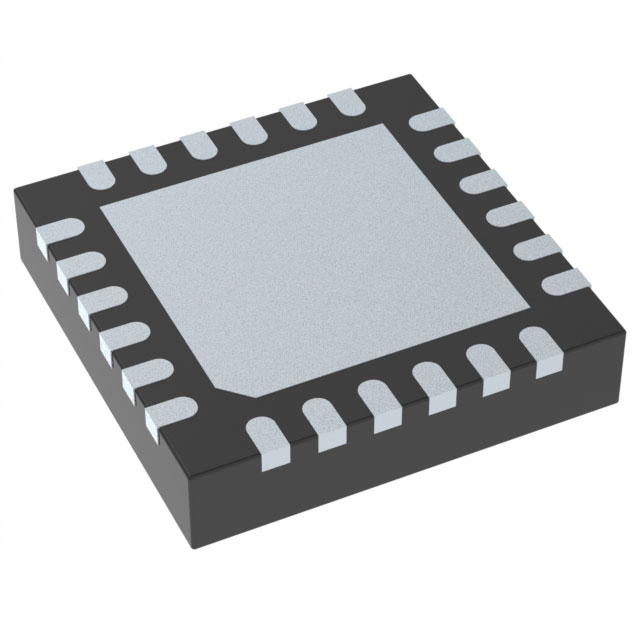

UCC28782BDLRTWR
IC ISOLATION
|
- | Tape & Reel (TR) | Active | Isolated | Yes | - | Boost, Flyback | 14V ~ 34V | - | 420kHz |
|
UCC3809D-1G4
IC OFFLINE SWITCH MULT TOP 8SOIC
|
- | Bulk | Discontinued at | Isolated | No | - | Boost, Buck, Flyback, Forward | 8V ~ 19V | 70% | 1MHz |
|
UCC28634D
IC OFFLINE SWITCH MULT TOP 7SOIC
|
- | Tube | Active | Isolated | Yes | 700V | Buck, Flyback | 13V ~ 16.5V | 70% | 120kHz |
|
UCC3813N-2G4
IC OFFLINE SWITCH MULT TOP 8DIP
|
- | Tube | Obsolete | Non-Isolated | Yes | - | Boost, Buck, Flyback, Forward | 8.3V ~ 12V | 99% | 1MHz |
|
|
UCC2808DTR-1
IC OFFLINE SW PUSH-PULL 8SOIC
|
- | Tape & Reel (TR) | Active | Isolated | No | - | Push-Pull | 8.3V ~ 14V | 50% | 1MHz |
|

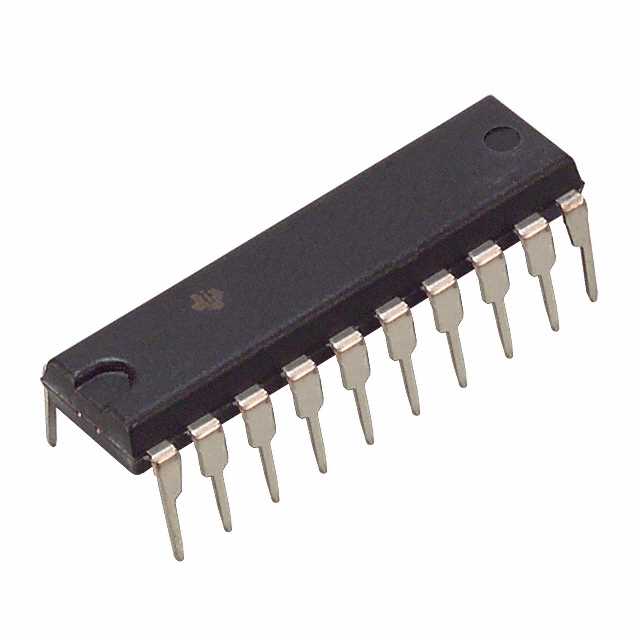

UC2879NG4
IC OFFLINE SW FULL-BRDG 20DIP
|
- | Tube | Discontinued at | Non-Isolated | - | - | Full-Bridge | 9.25V ~ 20V | 50% | 300kHz |
|
UC3865DWTRG4
IC OFFLINE SW MULT TOP 16SOIC
|
- | Tape & Reel (TR) | Obsolete | Non-Isolated | Yes | - | Full-Bridge, Half-Bridge, Push-Pull | 10.5V ~ 22V | - | 10kHz ~ 1MHz |
