| Image | Mfr Part # | Series | Package | Product Status | Type | Circuit | Current - Output High, Low | Voltage Supply Source | Voltage - Supply | Operating Temperature | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|
|

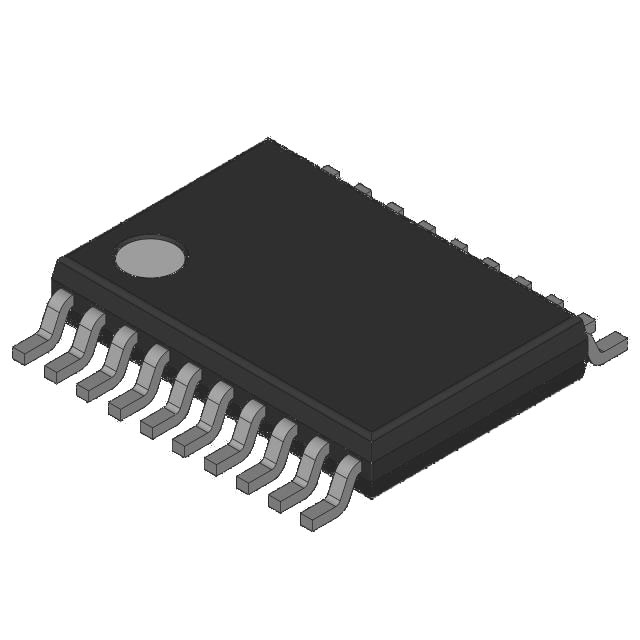

JD54LS253BFA
DUAL 4 INPUT MULTIPLEXER
|
* | Bulk | Active | - | - | - | - | - | - | - |
|
MM54HC153J/883
MUX, 2-FUNC, 4 LINE INPUT
|
54HC | Bulk | Active | Data Selector/Multiplexer | 2 x 4:1 | - | Single Supply | 2V ~ 6V | -55°C ~ 125°C | Through Hole |
|
DM74LS253M
MULTIPLEXER, LS SERIES TTL
|
74LS | Bulk | Active | Data Selector/Multiplexer | 2 x 4:1 | - | Single Supply | 4.75V ~ 5.25V | 0°C ~ 70°C | Surface Mount |
|
54155DM
DECODER/DRIVER, TTL
|
- | Bulk | Active | Decoder/Demultiplexer | 2 x 2:4 | - | Single Supply | 4.5V ~ 5.5V | -55°C ~ 125°C | Through Hole |
|
74F148SJ
ENCODER
|
74F | Bulk | Active | Priority Encoder | 1 x 8:3 | - | Single Supply | 4.5V ~ 5.5V | 0°C ~ 70°C | Surface Mount |
|
9301PCQR
DECIMAL DECODER/DRIVER, TTL
|
- | Bulk | Active | Decoder | 1 x 4:10 | - | Single Supply | 4.75V ~ 5.25V | 0°C ~ 70°C | Through Hole |
|
JM38510/33904BEA
MUX, F/FAST SERIES
|
- | Bulk | Active | Data Selector/Multiplexer | 4 x 2:1 | - | Single Supply | - | -55°C ~ 125°C | Through Hole |
|
|
9309PC
MUX, 2-FUNC, 4 LINE INPUT, TTL
|
- | Bulk | Active | Data Selector/Multiplexer | 2 x 4:1 | - | Single Supply | 4.75V ~ 5.25V | 0°C ~ 70°C | Through Hole |
|
MM54HC157W/883
MUX, 4-FUNC, 2 LINE INPUT
|
54HC | Bulk | Active | Data Selector/Multiplexer | 4 x 2:1 | - | Single Supply | 2V ~ 6V | -55°C ~ 125°C | Surface Mount |
|
10561DM
DECODER/DRIVER, 10K SERIES
|
- | Bulk | Active | - | - | - | - | - | - | - |
|
|
9317BDC
DECODER/DRIVER, TTL
|
9317B | Bulk | Active | Decoder | 1 x 4:7 | - | Single Supply | 4.75V ~ 5.25V | 0°C ~ 70°C | Through Hole |
|
4016BDC
MULTIPLEXERS/SWITCHES
|
4016B | Bulk | Active | Bilateral, FET Switches | 1 x 1:1 | - | - | - | - | Through Hole |
