| Image | Mfr Part # | Series | Package | Product Status | Type | Number of Elements | Output Type | Voltage - Supply, Single/Dual (±) | Voltage - Input Offset (Max) | Current - Input Bias (Max) | Current - Output (Typ) |
|---|---|---|---|---|---|---|---|---|---|---|---|
|
MAX908ESD
IC COMPARATOR 4 GEN PUR 14SOIC
|
MAX908 | Bulk | Active | General Purpose | 4 | Push-Pull, TTL | 4.5V ~ 11V, ±2.25V ~ 5.5V | 2mV @ 5V | 0.3µA @ 5V | - |
|
MAX40000AUT12+T
IC COMPARATOR 1 GEN PUR SOT6
|
nanoPower | Tape & Reel (TR) | Active | with Voltage Reference | 1 | Push-Pull | 1.7V ~ 5.5V | 10mV @ 3.3V | 0.005µA | 2mA |
|
MAX9018AEKA
IC COMPARATOR 2 W/VOLT REF SOT23
|
Automotive, AEC-Q100, Beyond-the-Rails™ | Bulk | Active | with Voltage Reference | 2 | Open-Drain, CMOS, Output | 1.8V ~ 5.5V | 5mV @ 5V | 1000pA @ 5V | 33mA |
|
MAX40005ANS05+
IC COMPARATOR 1 GEN PUR 4WLP
|
Nanopower | Strip | Obsolete | General Purpose | 1 | Push-Pull | 1.7V ~ 5.5V | 32mV @ 3.3V | 0.09µA @ 3.3V | - |
|
MAX9017AEKA/V+T
IC COMPARATOR 2 W/VOLT REF SOT23
|
Automotive, AEC-Q100 | Tape & Reel (TR) | Active | with Voltage Reference | 2 | CMOS, Push-Pull, Rail-to-Rail | 1.8V ~ 5.5V | 5mV @ 5V | 0.001µA @ 5V | 50mA |
|

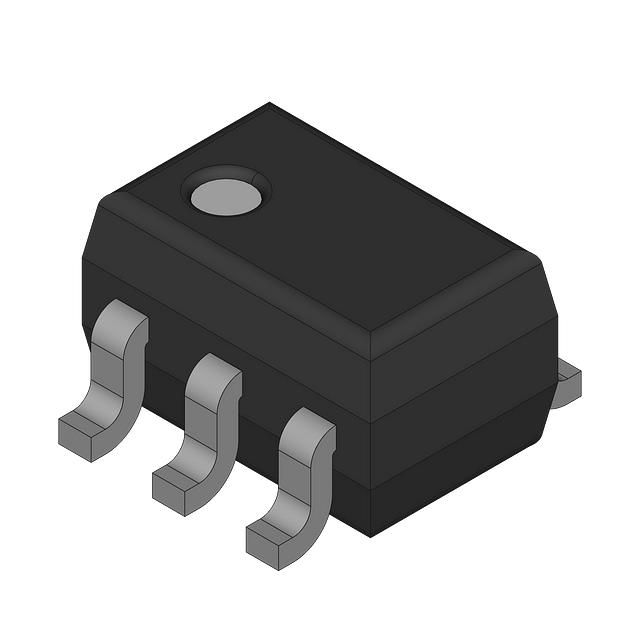

MAX9120EXK
IC COMPARATOR 1 W/VOLT REF SC70
|
Nanopower | Bulk | Active | with Voltage Reference | 1 | Open-Drain, CMOS, Output | 1.6V ~ 5.5V | 5mV @ 5V | 0.001µA @ 5V | 50mA |
|
|
MAX40005ANS+
IC COMPARATOR 1 GEN PUR 4WLP
|
Nanopower | Strip | Obsolete | General Purpose | 1 | Push-Pull | 1.7V ~ 5.5V | 32mV @ 3.3V | 0.09µA @ 3.3V | - |
|

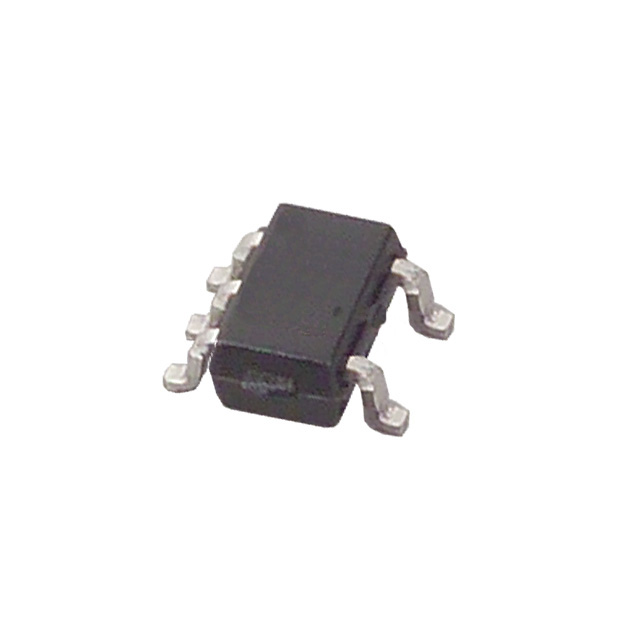

MAX9140AAXK/V+
IC COMPARATOR 1 SC70-5
|
Automotive, AEC-Q100 | Tube | Obsolete | - | 1 | CMOS, Push-Pull, TTL | 2.7V ~ 5.5V | 6mV @ 5V | 0.35µA @ 5V | - |
|
|

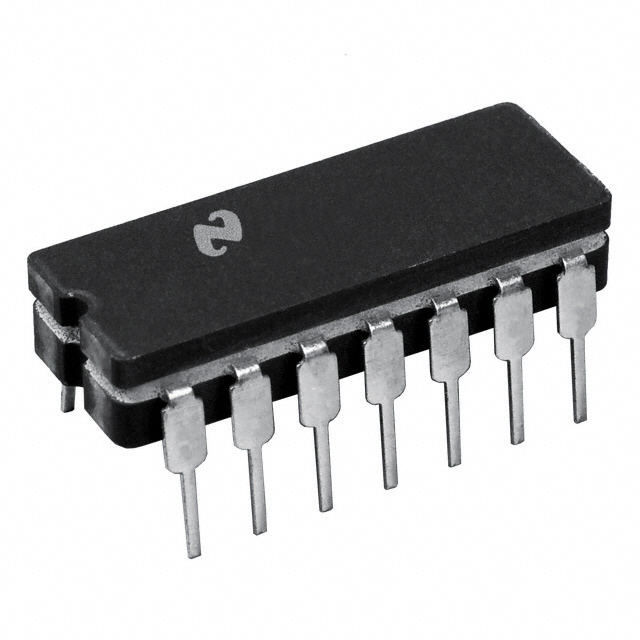

LM139AW
QUAD DIFFERENTIAL COMPARATOR 14-
|
- | Tube | Active | Differential | 4 | Open-Collector, Open-Drain, Rail-to-Rail | 5V ~ 30V, ±2.5V ~ 15V | 2mV @ 5V | 0.1µA @ 5V | 16mA @ 5V |
|
LM311DRE4
IC COMPARATOR 1 GEN PUR 8SOIC
|
- | Tape & Reel (TR) | Discontinued at | General Purpose | 1 | MOS, Open-Collector, Open-Emitter, TTL | 3.5V ~ 30V, ±1.75V ~ 15V | 7.5mV @ ±15V | 0.25µA @ ±15V | - |
|
TLV3702CDGKRG4
IC COMPARATOR 2 GEN PUR 8VSSOP
|
- | Tape & Reel (TR) | Discontinued at | General Purpose | 2 | CMOS, Push-Pull, Rail-to-Rail | 2.5V ~ 16V, ±1.25V ~ 8V | 5mV @ 15V | 250pA @ 15V | 10mA |
|
TL3016CDR
IC COMPARATOR 1 W/LATCH 8SOIC
|
- | Tape & Reel (TR) | Active | with Latch | 1 | Complementary, Push-Pull, TTL | 5V ~ 10V, ±2.5V ~ 5V | 3mV @ ±5V | 10µA @ ±5V | 20mA |
