| Image | Mfr Part # | Series | Package | Product Status | Type | Number of Elements | Output Type | Voltage - Supply, Single/Dual (±) | Voltage - Input Offset (Max) | Current - Input Bias (Max) | Current - Output (Typ) |
|---|---|---|---|---|---|---|---|---|---|---|---|
|
LM339NE3
IC COMPARATOR 4 DIFF 14DIP
|
- | Tube | Active | Differential | 4 | Open-Collector, Rail-to-Rail | 2V ~ 30V, ±1V ~ 15V | 5mV @ 30V | 0.25µA @ 5V | 20mA |
|

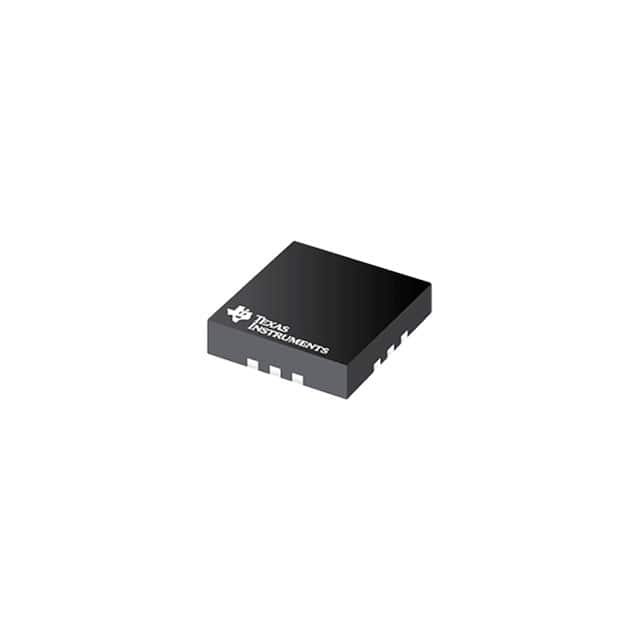

TLV3605RVKT
IC COMPARATOR 1 GEN PUR 12WQFN
|
- | Tape & Reel (TR) | Active | General Purpose | 1 | Complementary, LVDS, Rail-to-Rail | 2.4V ~ 5.5V | 5mV @ 5V | 5µA @ 5V | - |
|
TLV9034QDRQ1
AUTOMOTIVE, 5.5-V, LOW-VOLTAGE,
|
- | Tape & Reel (TR) | Active | General Purpose | 4 | Push-Pull, Rail-to-Rail | 1.65V ~ 5.5V | 1.5mV @ 5V | 5pA (Typ) | 100mA @ 5V |
|
LM339AD
IC COMPARATOR 4 DIFF 14SOIC
|
- | Tube | Active | Differential | 4 | Open-Collector, Rail-to-Rail | 2V ~ 30V, ±1V ~ 15V | 3mV @ 30V | 0.25µA @ 5V | 20mA |
|

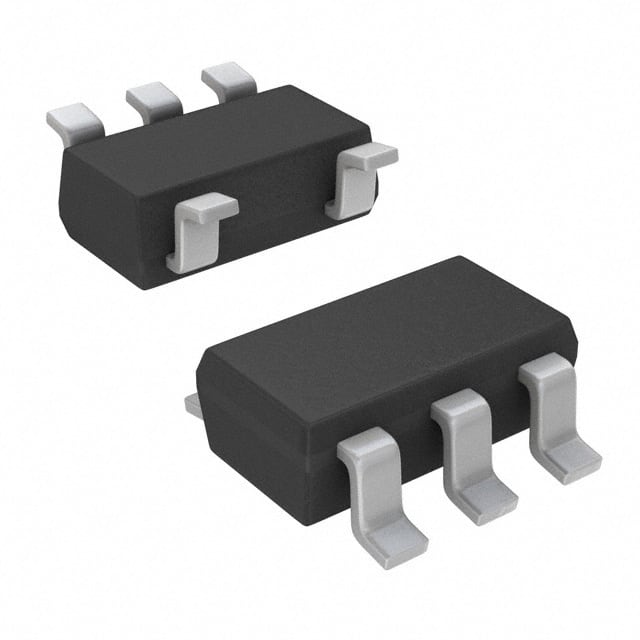

TPS3700DDCT
IC COMPARATOR 2 WINDW SOT23-THIN
|
- | Tape & Reel (TR) | Active | Window | 2 | Open Drain | 1.8V ~ 18V | - | - | - |
|
|
LM2903AVQPWRDL
PROTOTYPE
|
- | Bulk | Active | General Purpose | 2 | Open-Collector, Rail-to-Rail | 2V ~ 32V, ±1V ~ 16V | 2mV @ 30V | 0.25µA @ 5V | 20mA |
|
LM393DG4
IC COMPARATOR 2 DIFF 8SOIC
|
- | Tube | Obsolete | Differential | 2 | Open-Collector, Rail-to-Rail | 2V ~ 36V, ±1V ~ 18V | 5mV @ 30V | 0.25µA @ 5V | 20mA |
|
LM2903AVQPWRG4
IC COMPARATOR 2 DIFF 8TSSOP
|
- | Tape & Reel (TR) | Discontinued at | Differential | 2 | Open-Collector, Rail-to-Rail | 2V ~ 36V, ±1V ~ 18V | 2mV @ 5V | 0.25µA @ 5V | 20mA |
|
|
5962-9673801VDA
LOW POWER LOW OFFSET VOLTAGE QUA
|
- | Tube | Active | Differential | 4 | Open-Collector, CMOS, DTL, ECL, MOS, TTL | 5V ~ 30V, ±2.5V ~ 15V | 2mV @ 30V | 1000pA @ 5V | 20mA |
|
LMV331M7X
IC COMPARATOR 1 GEN PUR SC70-5
|
- | Tape & Reel (TR) | Not For New Designs | General Purpose | 1 | CMOS, Open-Collector, TTL | 2.7V ~ 5.5V | 7mV @ 5V | 0.25µA @ 5V | 84mA @ 5V |
|
LP339N/PB
IC COMPARATOR 4 GEN PUR 14DIP
|
- | Tube | Obsolete | General Purpose | 4 | CMOS, MOS, Open-Collector | 2V ~ 36V, ±1V ~ 18V | 5mV @ 5V | 0.025µA @ 5V | 10mA @ 5V |
|
LPV7215MG
IC COMPARATOR 1 GEN PUR SC70-5
|
- | Tape & Reel (TR) | Obsolete | General Purpose | 1 | CMOS, Push-Pull | 1.8V ~ 5.5V | 3mV @ 5V | 0.4pA @ 5V | 19mA @ 5V |
