| Image | Mfr Part # | Series | Package | Product Status | Logic Type | Number of Inputs | Features | Voltage - Supply | Current - Output High, Low | Input Logic Level - Low | Input Logic Level - High |
|---|---|---|---|---|---|---|---|---|---|---|---|
|
SN74S09DRE4
IC GATE AND OPEN 4CH 2-IN 14SOIC
|
74S | Tape & Reel (TR) | Obsolete | AND Gate | 2 | Open Collector | 4.75V ~ 5.25V | -, 20mA | 0.8V | 2V |
|
SN74S38D
IC GATE NAND OPEN 4CH 2IN 14SOIC
|
74S | Tube | Active | NAND Gate | 2 | Open Collector | 4.75V ~ 5.25V | -, 60mA | 0.8V | 2V |
|

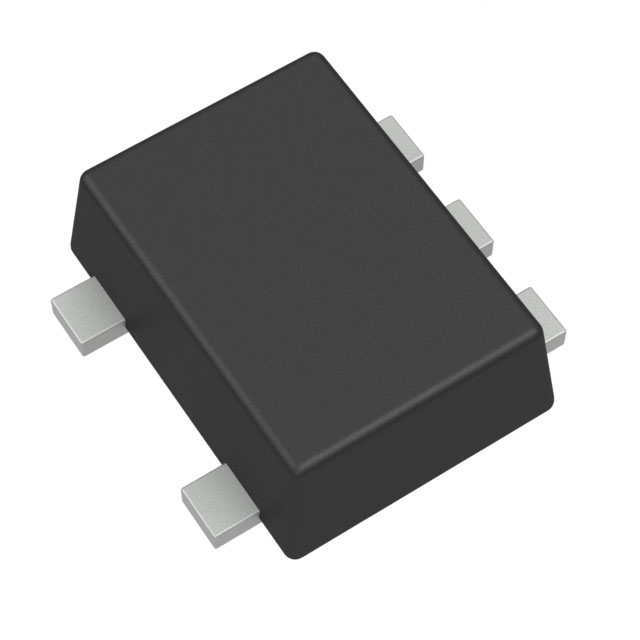

SN74AHCT1G08DRLR
IC GATE AND 1CH 2-INP SOT5
|
74AHCT | Tape & Reel (TR) | Active | AND Gate | 2 | - | 4.5V ~ 5.5V | 8mA, 8mA | 0.8V | 2V |
|
|
SN74AHCT08D
IC GATE AND 4CH 2-INP 14SOIC
|
74AHCT | Tube | Discontinued at | AND Gate | 2 | - | 4.5V ~ 5.5V | 8mA, 8mA | 0.8V | 2V |
|
SN74AHCT00PWR
IC GATE NAND 4CH 2-INP 14TSSOP
|
74AHCT | Tape & Reel (TR) | Active | NAND Gate | 2 | - | 4.5V ~ 5.5V | 8mA, 8mA | 0.8V | 2V |
|
74AHCT1G14DBVRG4
IC INVERTER 1CH 1-INP SOT23-5
|
74AHCT | Tape & Reel (TR) | Discontinued at | Inverter | 1 | Schmitt Trigger | 4.5V ~ 5.5V | 8mA, 8mA | 0.5V ~ 0.6V | 2V |
|
SN74AHCT08DRG4
IC GATE AND 4CH 2-INP 14SOIC
|
74AHCT | Tape & Reel (TR) | Discontinued at | AND Gate | 2 | - | 4.5V ~ 5.5V | 8mA, 8mA | 0.8V | 2V |
|
SN74S04N
IC INVERTER 6CH 1-INP 14DIP
|
74S | Tube | Active | Inverter | 1 | - | 4.75V ~ 5.25V | 1mA, 20mA | 0.8V | 2V |
|
SN74AHCT86BQAR
IC GATE XOR 4CH 2-INP 14WQFN
|
74AHCT | Tape & Reel (TR) | Active | XOR (Exclusive OR) | 2 | - | 4.5V ~ 5.5V | 8mA, 8mA | 0.8V | 2V |
|
|
SN74AHCT14PWR-P
PROTOTYPE
|
74AHCT | Bulk | Active | Inverter | 6 | Schmitt Trigger | 4.5V ~ 5.5V | 8mA, 8mA | - | 1.9V ~ 2.1V |
|
SN74S00NSRE4
IC GATE NAND 4CH 2-INP 14SOP
|
74S | Tape & Reel (TR) | Obsolete | NAND Gate | 2 | - | 4.75V ~ 5.25V | 1mA, 20mA | 0.8V | 2V |
|
SN74AHCT00PW
IC GATE NAND 4CH 2-INP 14TSSOP
|
74AHCT | Bulk | Discontinued at | NAND Gate | 2 | - | 4.5V ~ 5.5V | 8mA, 8mA | 0.8V | 2V |
