| Image | Mfr Part # | Series | Package | Product Status | Logic Type | Number of Inputs | Features | Voltage - Supply | Current - Output High, Low | Input Logic Level - Low | Input Logic Level - High |
|---|---|---|---|---|---|---|---|---|---|---|---|
|

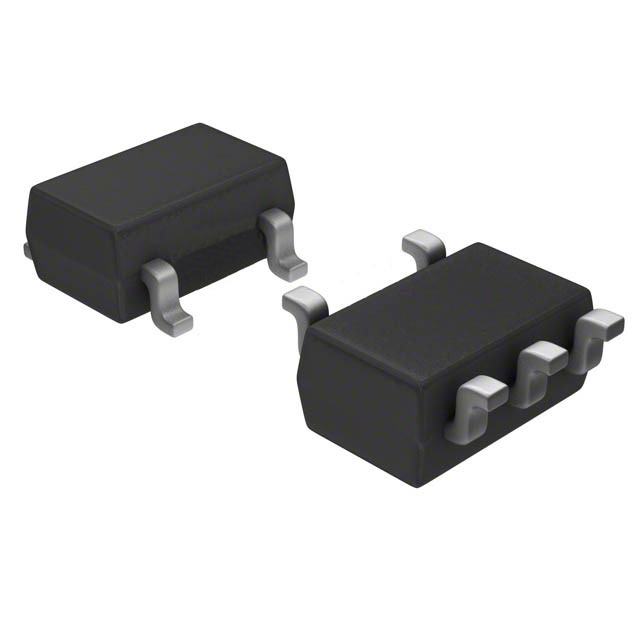

SN74LV1T02DBVRG4
IC GATE NOR 1CH 2-INP SOT23-5
|
74LV | Tape & Reel (TR) | Discontinued at | NOR Gate | 2 | - | 1.6V ~ 5.5V | 8mA, 8mA | 0.58V ~ 0.8V | 0.94V ~ 2.1V |
|
SN74HC20PWTG4
IC GATE NAND 2CH 4-INP 14TSSOP
|
74HC | Tape & Reel (TR) | Discontinued at | NAND Gate | 4 | - | 2V ~ 6V | 5.2mA, 5.2mA | 0.5V ~ 1.8V | 1.5V ~ 4.2V |
|

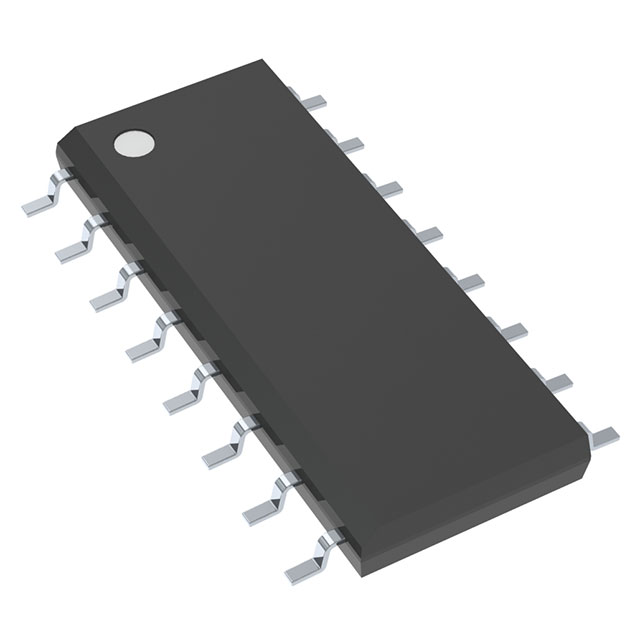

74AC11086DRE4
IC GATE XOR 4CH 2-INP 16SOIC
|
74AC | Tape & Reel (TR) | Obsolete | XOR (Exclusive OR) | 2 | - | 3V ~ 5.5V | 24mA, 24mA | 0.9V ~ 1.65V | 2.1V ~ 3.85V |
|
SN74HC14DB
IC INV SCHMITT 6CH 1-IN 14SSOP
|
74HC | Bulk | Active | Inverter | 1 | Schmitt Trigger | 2V ~ 6V | 5.2mA, 5.2mA | 0.3V ~ 1.2V | 1.5V ~ 4.2V |
|
SN74HC11ANS
IC GATE AND 3CH 3-INP 14SO
|
74HC | Bulk | Active | AND Gate | 3 | - | 2V ~ 6V | 5.2mA, 5.2mA | 0.1V ~ 0.26V | 1.9V ~ 5.9V |
|
SN74HC00QDRHT
IC GATE NAND 4CH 2-INP 14SOIC
|
74HC | Bulk | Active | NAND Gate | 2 | - | 2V ~ 6V | 5.2mA, 5.2mA | 0.5V ~ 1.8V | 1.5V ~ 4.2V |
|
CD74HC00ADBLE
IC GATE NAND 4CH 2-INP 14SSOP
|
74HC | Bulk | Active | NAND Gate | 2 | - | 2V ~ 6V | 5.2mA, 5.2mA | 0.5V ~ 1.8V | 1.5V ~ 4.2V |
|
SN74HC11D
IC GATE AND 3CH 3-INP 14SOIC
|
74HC | Tube | Discontinued at | AND Gate | 3 | - | 2V ~ 6V | 5.2mA, 5.2mA | 0.5V ~ 1.8V | 1.5V ~ 4.2V |
|
SN74HC10PWT
IC GATE NAND 3CH 3-INP 14TSSOP
|
74HC | Tape & Reel (TR) | Discontinued at | NAND Gate | 3 | - | 2V ~ 6V | 5.2mA, 5.2mA | 0.5V ~ 1.8V | 1.5V ~ 4.2V |
|
SN74HC10ANS
IC GATE NAND 3CH 3-INP 14SOP
|
74HC | Bulk | Active | NAND Gate | 3 | - | 2V ~ 6V | 5.2mA, 5.2mA | 0.5V ~ 1.8V | 1.5V ~ 4.2V |
|
|
CD74HC00EE4
4-CH, 2-INPUT, 2-V TO 6-V NAND G
|
74HC | Tube | Active | NAND Gate | 2 | - | 2V ~ 6V | 5.2mA, 5.2mA | 0.5V ~ 1.8V | 1.5V ~ 4.2V |
|

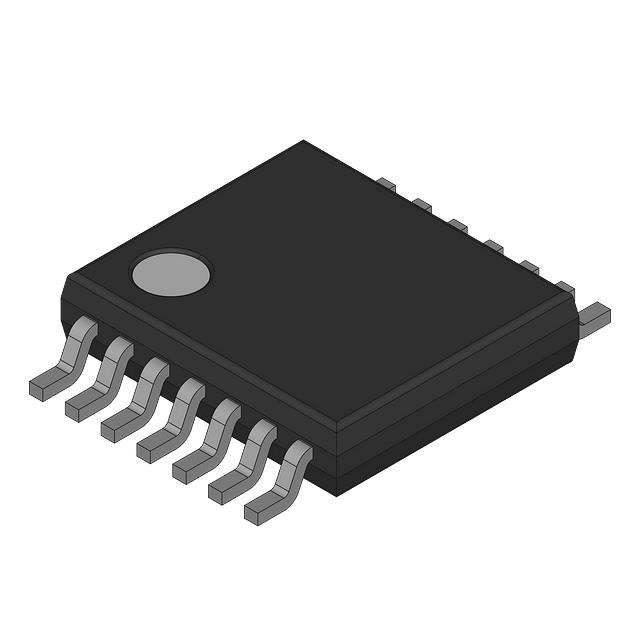

SN74HC32APW
IC GATE XNOR 4CH 2-INP 14TSSOP
|
74HC | Bulk | Active | XNOR (Exclusive NOR) | 2 | - | 2V ~ 6V | 5.2mA, 5.2mA | 0.3V ~ 1.2V | 1.5V ~ 4.2V |
