| Image | Mfr Part # | Series | Package | Product Status | Logic Type | Number of Inputs | Features | Voltage - Supply | Current - Output High, Low | Input Logic Level - Low | Input Logic Level - High |
|---|---|---|---|---|---|---|---|---|---|---|---|
|

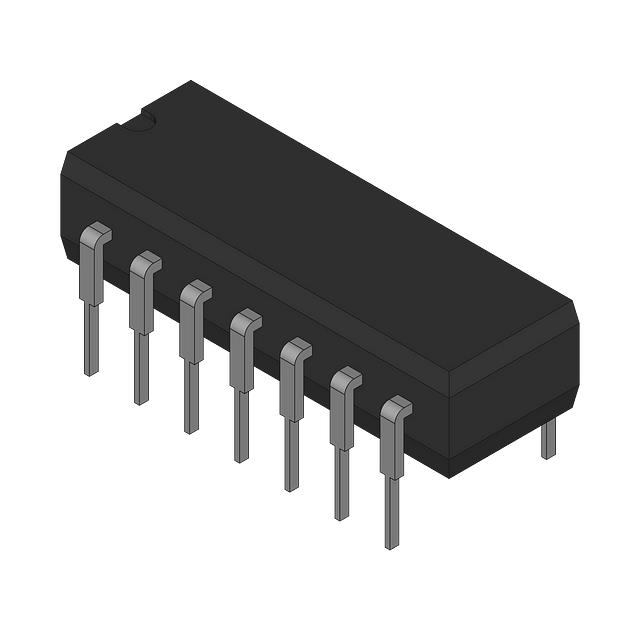

SN74ALS86NE4
SN74ALS86 QUADRUPLE 2-INPUT EXCL
|
* | Bulk | Active | - | - | - | - | - | - | - |
|
SN74ALVC04DE4
IC INVERTER HEX 6CH 1-IN 14SOIC
|
74ALVC | Tube | Active | Inverter | 1 | - | 1.65V ~ 3.6V | 24mA, 24mA | 0.7V ~ 0.8V | 1.7V ~ 2V |
|
SN74H87N3
GATE- ALU, TTL, PDIP14
|
* | Bulk | Active | - | - | - | - | - | - | - |
|
SNJ54F10FK
MILITARY 3-CH, 3-INPUT, 4.5-V TO
|
54F | Tube | Active | NAND Gate | 3 | - | 4.5V ~ 5.5V | 1mA, 20mA | 0.8V | 2V |
|
SN74ALS02ADBR
NOR GATE 4-ELEMENT 2-IN BIPOLAR
|
* | Bulk | Active | - | - | - | - | - | - | - |
|
SN74ALVC08DE4
IC GATE AND 4CH 2-INP 14-SOIC
|
74ALVC | Tube | Active | AND Gate | 2 | - | 1.65V ~ 3.6V | 24mA, 24mA | 0.7V ~ 0.8V | 1.7V ~ 2V |
|

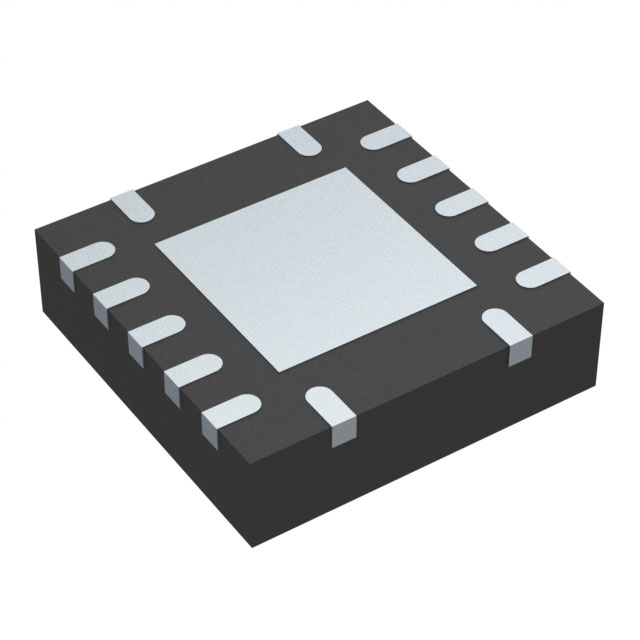

SN74ALVC08RGYRG4
IC GATE AND 4CH 2-INP 14VQFN
|
74ALVC | Tape & Reel (TR) | Discontinued at | AND Gate | 2 | - | 1.65V ~ 3.6V | 24mA, 24mA | 0.7V ~ 0.8V | 1.7V ~ 2V |
|
|
JM54AC00SDA-RH
54AC00 - QUAD 2-INPUT NAND GATE
|
54AC | Bulk | Active | NAND Gate | 2 | - | 2V ~ 6V | 24mA, 24mA | 0.9V ~ 1.65V | 2.1V ~ 3.85V |
|
SNJ54HC32FK
54HC32 QUADRUPLE 2-INPUT POSITIV
|
* | Bulk | Active | - | - | - | - | - | - | - |
|
|
JM54AC08BDA-RH
54AC08 - QUAD 2-INPUT AND GATE -
|
54AC | Bulk | Active | AND Gate | 2 | - | 2V ~ 6V | 24mA, 24mA | 0.9V ~ 1.65V | 2.1V ~ 3.85V |
|
SN7414NE4
INVERTER, 7414 SERIES, 6-FUNC, 1
|
* | Bulk | Active | - | - | - | - | - | - | - |
|
|
JM54AC08SDA-RH
54AC08 - QUAD 2-INPUT AND GATE -
|
54AC | Bulk | Active | AND Gate | 2 | - | 2V ~ 6V | 24mA, 24mA | 0.9V ~ 1.65V | 2.1V ~ 3.85V |
