| Image | Mfr Part # | Series | Package | Product Status | Logic Type | Number of Inputs | Features | Voltage - Supply | Current - Output High, Low | Input Logic Level - Low | Input Logic Level - High |
|---|---|---|---|---|---|---|---|---|---|---|---|
|
100121DC
INVERTER, 100K SERIES
|
- | Bulk | Active | Inverter | 9 | - | 4.2V ~ 5.7V | - | 1.49V | 0.88V |
|
CD74AC04M96G4
IC INVERTER 6CH 1-INP 14SOIC
|
74AC | Tape & Reel (TR) | Discontinued at | Inverter | 1 | - | 1.5V ~ 5.5V | 24mA, 24mA | 0.3V ~ 1.65V | 1.2V ~ 3.85V |
|
SN72515N
8-INPUT NAND GATE
|
* | Bulk | Active | - | - | - | - | - | - | - |
|
DM5400N
NAND GATE, TTL, PDIP14
|
- | Bulk | Active | NAND Gate | 2 | - | 4.5V ~ 5.5V | 400µA, 16mA | 0.8V | 2V |
|
|
CD4070BEE4
4-CH, 2-INPUT, 3-V TO 18-V XOR (
|
4000B | Tube | Active | XOR (Exclusive OR) | 2 | - | 3V ~ 18V | 6.8mA, 6.8mA | 1.5V ~ 4V | 3.5V ~ 11V |
|
SN74LV32ANS
OR GATE, LV/LV-A/LVX/H SERIES
|
* | Bulk | Active | - | - | - | - | - | - | - |
|

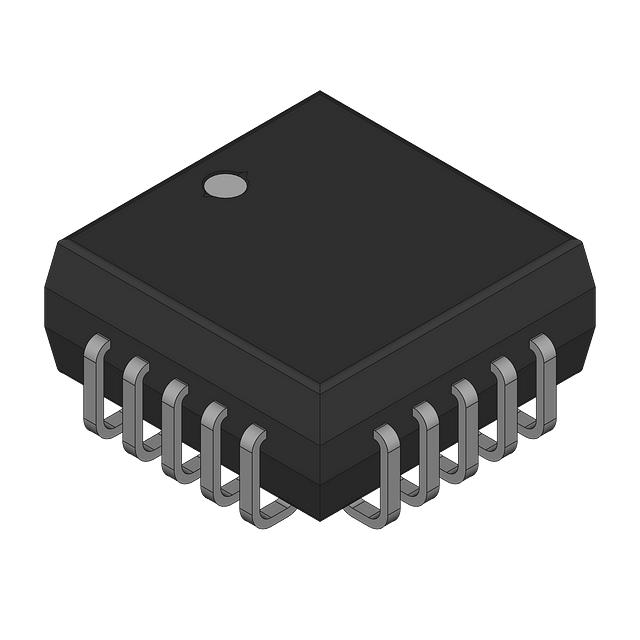

SN74AS20FN
NAND GATE, TTL, PQCC20
|
* | Bulk | Active | - | - | - | - | - | - | - |
|
DM7400M
NAND GATE, TTL/H/L SERIES, TTL
|
- | Bulk | Active | NAND Gate | 2 | - | 4.75V ~ 5.25V | 400µA, 16mA | 0.8V | 2V |
|
|
CD4077BF3A
MILITARY 4-CH, 4-INPUT, 3-V TO 1
|
4000B | Tube | Active | XNOR (Exclusive NOR) | 2 | - | 3V ~ 18V | 6.8mA, 6.8mA | 1.5V ~ 4V | 3.5V ~ 11V |
|
SN74LVC1G04DCK3
IC INVERTER 1CH 1-INP SC70-5
|
74LVC | Tape & Reel (TR) | Active | Inverter | 1 | - | 1.65V ~ 5.5V | 32mA, 32mA | 0.58V ~ 1.65V | 1.07V ~ 3.85V |
|
SN74LS28DR
NOR GATE, LS SERIES TTL
|
* | Bulk | Active | - | - | - | - | - | - | - |
|
|
CD4070BF3A
MILITARY 4-CH, 2-INPUT, 3-V TO 1
|
4000B | Tube | Active | XOR (Exclusive OR) | 2 | - | 3V ~ 18V | 6.8mA, 6.8mA | 1.5V ~ 4V | 3.5V ~ 11V |
