| Image | Mfr Part # | Series | Package | Product Status | Logic Type | Number of Inputs | Features | Voltage - Supply | Current - Output High, Low | Input Logic Level - Low | Input Logic Level - High |
|---|---|---|---|---|---|---|---|---|---|---|---|
|
8404101CA
MILITARY 4-CH, 2-INPUT, 2-V TO 6
|
54HC | Tube | Active | NOR Gate | 2 | - | 2V ~ 6V | 5.2mA, 5.2mA | 0.5V ~ 1.8V | 1.5V ~ 4.2V |
|
|
SN74HC132N-P2
PROTOTYPE
|
74HC | Bulk | Active | NAND Gate | 2 | Schmitt Trigger | 2V ~ 6V | 5.2mA, 5.2mA | 1V ~ 3.2V | 1.5V ~ 4.2V |
|
SN74AHCU04NS
IC INVERTER HEX 14SO
|
* | Bulk | Active | - | - | - | - | - | - | - |
|
SN74HCT04DR
IC INVERTER 6CH 1-INP 14SOIC
|
74HCT | Tape & Reel (TR) | Active | Inverter | 1 | - | 4.5V ~ 5.5V | 4mA, 4mA | 0.8V | 2V |
|
SN74HCT04PWR
IC INVERTER 6CH 1-INP 14TSSOP
|
74HCT | Tape & Reel (TR) | Active | Inverter | 1 | - | 4.5V ~ 5.5V | 4mA, 4mA | 0.8V | 2V |
|
|
SN54HC132TDG2
IC GATE NAND SCHMITT 4CH DIE
|
54HC | Tube | Active | NAND Gate | 2 | Schmitt Trigger | - | - | - | - |
|

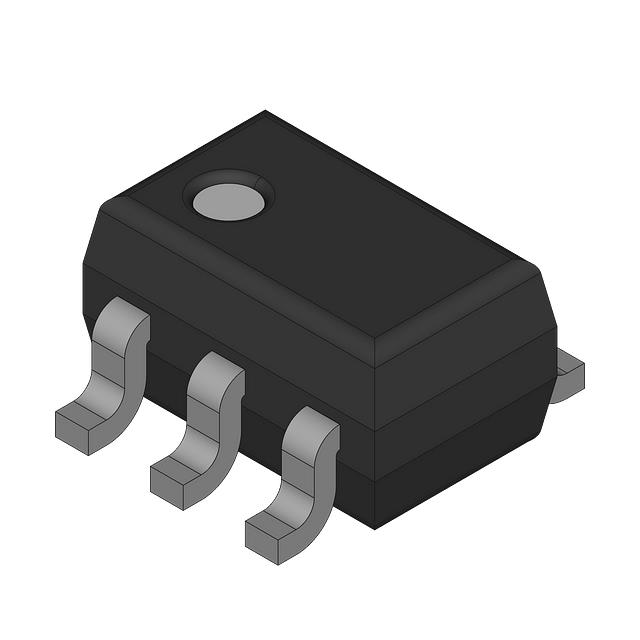

SN74AHC1G00HDCKR
NAND GATE 2-IN CMOS 5PIN SC-70 T
|
* | Bulk | Active | - | - | - | - | - | - | - |
|
SNJ54H11W
AND GATE, 3-INPUT, TTL
|
* | Bulk | Active | - | - | - | - | - | - | - |
|
JM38510/30203BDA
54LS38 QUADRUPLE 2-INPUT POSITIV
|
* | Bulk | Active | - | - | - | - | - | - | - |
|
5962-9757901QCA
SN54F10 TRIPLE 3-INPUT POSITIVE-
|
* | Bulk | Active | - | - | - | - | - | - | - |
|
|
SN74HC14QPWRNSG4
PROTOTYPE
|
74HC | Bulk | Active | Inverter | 6 | Schmitt Trigger | 2V ~ 6V | 5.2mA, 5.2mA | 1V ~ 3.2V | 1.5V ~ 4.2V |
|
|
5962-8857601CA
MILITARY 2-CH, 4-INPUT, 2-V TO 6
|
54HC | Tube | Active | AND Gate | 4 | - | 2V ~ 6V | 5.2mA, 5.2mA | 0.5V ~ 1.8V | 1.5V ~ 4.2V |
