| Image | Mfr Part # | Series | Package | Product Status | Logic Type | Number of Inputs | Features | Voltage - Supply | Current - Output High, Low | Input Logic Level - Low | Input Logic Level - High |
|---|---|---|---|---|---|---|---|---|---|---|---|
|
CD4081BNS
IC GATE AND 4CH 2-INP 14SO
|
4000B | Tube | Last Time Buy | AND Gate | 2 | - | 3V ~ 18V | 6.8mA, 6.8mA | 1.5V ~ 4V | 3.5V ~ 11V |
|
SNJ54HC08J
54HC08 QUADRUPLE 2-INPUT POSITIV
|
* | Bulk | Active | - | - | - | - | - | - | - |
|

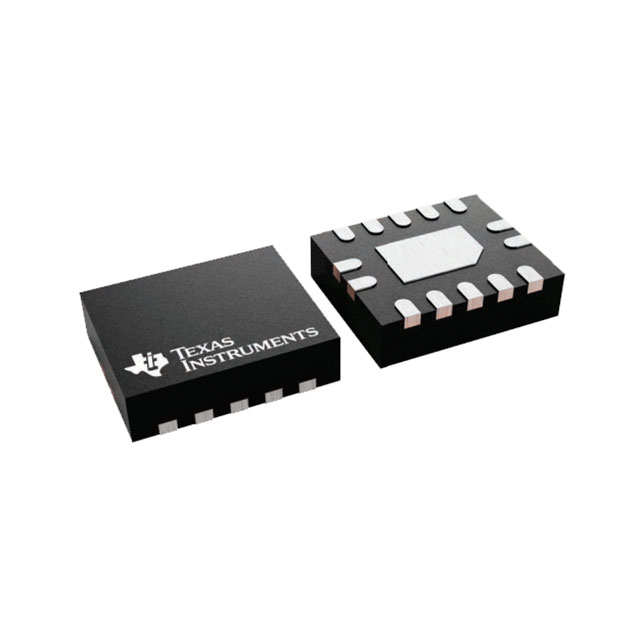

SN74HCS00QBQARQ1
AUTOMOTIVE 4-CH, 2-INPUT, 2-V TO
|
Automotive, AEC-Q100, 74HCS | Tape & Reel (TR) | Active | NAND Gate | 2 | Schmitt Trigger Input | 2V ~ 6V | 7.8mA, 7.8mA | 1V ~ 3V | 1.5V ~ 4.2V |
|
|
SN74AHC32PWR-P
PROTOTYPE
|
74AHC | Bulk | Active | OR Gate | 2 | - | 2V ~ 5.5V | 8mA, 8mA | 0.5V ~ 1.65V | 1.5V ~ 3.85V |
|
SN74LVC2G86DCUTE4
IC GATE XOR 2CH 2-INP 8VSSOP
|
74LVC | Tape & Reel (TR) | Obsolete | XOR (Exclusive OR) | 2 | - | 1.65V ~ 5.5V | 32mA, 32mA | 0.58V ~ 1.65V | 1.07V ~ 3.85V |
|
SNJ54L00J
NAND GATE, TTL/H/L SERIES, TTL
|
* | Bulk | Active | - | - | - | - | - | - | - |
|
|
M38510/05052BCA
IC GATE NAND 2CH 4-INP 14CDIP
|
4000B | Tube | Active | NAND Gate | 4 | - | 3V ~ 18V | 6.8mA, 6.8mA | 1.5V ~ 4V | 3.5V ~ 11V |
|
SN74HCS05DYYR
6-CH, 2V TO 6V INVERTERS WITH OP
|
74HCS | Tape & Reel (TR) | Active | Inverter | 6 | Schmitt Trigger Input, Open Drain | 2V ~ 6V | -, 7.8mA | 1V ~ 3V | 1.5V ~ 4.2V |
|
SN74AHC1G32DCKTE4
IC GATE OR 1CH 2-INP SC70-5
|
74AHC | Tape & Reel (TR) | Discontinued at | OR Gate | 2 | - | 2V ~ 5.5V | 8mA, 8mA | 0.5V ~ 1.65V | 1.5V ~ 3.85V |
|
SN74HCS02PWR
IC GATE NOR 4CH 2-INP 14TSSOP
|
74HCS | Tape & Reel (TR) | Active | NOR Gate | 2 | Schmitt Trigger Input | 2V ~ 6V | 7.8mA, 7.8mA | 1V ~ 3V | 1.5V ~ 4.2V |
|
SN74AHC02RGYRG4
IC GATE NOR 4CH 2-INP 14VQFN
|
74AHC | Tape & Reel (TR) | Discontinued at | NOR Gate | 2 | - | 2V ~ 5.5V | 8mA, 8mA | 0.5V ~ 1.65V | 1.5V ~ 3.85V |
|

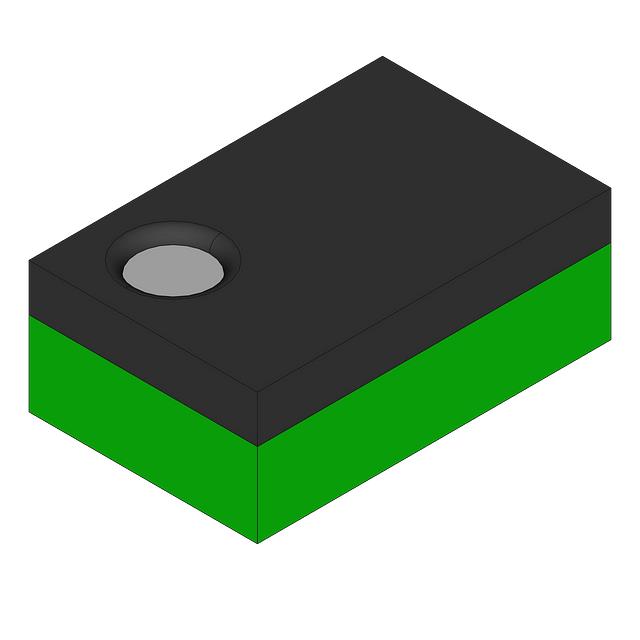

SN74AUC2G00YZTR
NAND GATE 2-ELEMENT 2-IN CMOS 8-
|
* | Bulk | Active | - | - | - | - | - | - | - |
