| Image | Mfr Part # | Series | Package | Product Status | Logic Type | Number of Inputs | Features | Voltage - Supply | Current - Output High, Low | Input Logic Level - Low | Input Logic Level - High |
|---|---|---|---|---|---|---|---|---|---|---|---|
|
SN74AHC1G02DCKRG4
IC GATE NOR 1CH 2-INP SC70-5
|
74AHC | Tape & Reel (TR) | Discontinued at | NOR Gate | 2 | - | 2V ~ 5.5V | 8mA, 8mA | 0.5V ~ 1.65V | 1.5V ~ 3.85V |
|
SN74LVC1G04DCKR-S
PROTOTYPE
|
74LVC | Bulk | Active | Inverter | 1 | - | 1.65V ~ 5.5V | 32mA, 32mA | 0.58V ~ 1.65V | 1.07V ~ 3.85V |
|
SN74LVC2G02DCUTE4
IC GATE NOR 2CH 2-INP 8VSSOP
|
74LVC | Tape & Reel (TR) | Obsolete | NOR Gate | 2 | - | 1.65V ~ 5.5V | 32mA, 32mA | 0.7V ~ 0.8V | 1.7V ~ 2V |
|
54S08L1M
AND GATE, TTL
|
* | Bulk | Active | - | - | - | - | - | - | - |
|
SN74LVC1G332DCKRG4
IC GATE OR 1CH 3-INP SC70-6
|
74LVC | Tape & Reel (TR) | Discontinued at | OR Gate | 3 | - | 1.65V ~ 5.5V | 32mA, 32mA | 0.7V ~ 0.8V | 1.7V ~ 2V |
|

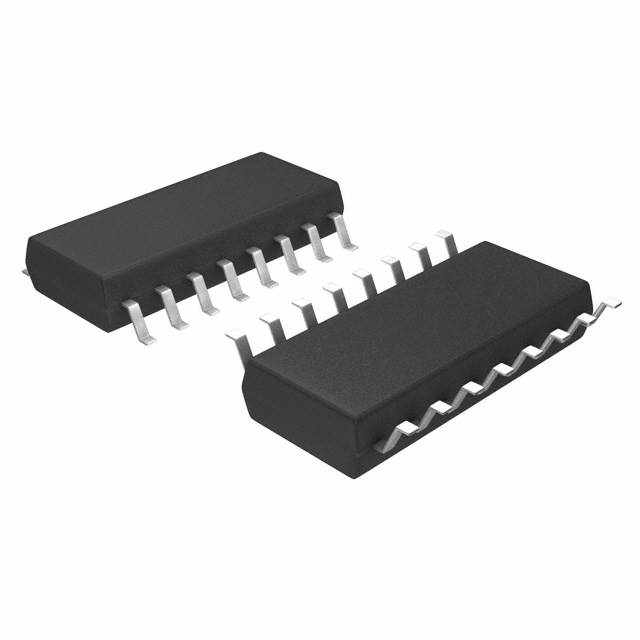

CD4009UBNSR
IC INVERTER 6CH 1-INP 16SO
|
4000B | Tape & Reel (TR) | Obsolete | Inverter | 1 | - | 3V ~ 18V | 1.5mA, 24mA | 1V ~ 2.5V | 4V ~ 12.5V |
|
CD4009UBNSRG4
IC INVERTER 6CH 1-INP 16SO
|
4000B | Tape & Reel (TR) | Obsolete | Inverter | 1 | - | 3V ~ 18V | 1.5mA, 24mA | 1V ~ 2.5V | 4V ~ 12.5V |
|
SN74AHC02NSR
IC GATE NOR 4CH 2-INP 14SOP
|
74AHC | Tape & Reel (TR) | Active | NOR Gate | 2 | - | 2V ~ 5.5V | 8mA, 8mA | 0.5V ~ 1.65V | 1.5V ~ 3.85V |
|
SN74LVC1G14DBVTE4
IC INVERTER 1CH 1-INP SOT23-5
|
74LVC | Tape & Reel (TR) | Discontinued at | Inverter | 1 | Schmitt Trigger | 1.65V ~ 5.5V | 32mA, 32mA | 0.39V ~ 1.87V | 1.16V ~ 3.33V |
|
|
JM38510/03005BDA
NAND GATE, QUAD 2-INPUT
|
* | Bulk | Active | - | - | - | - | - | - | - |
|
SN74HCS11QPWRQ1
IC GATE AND 3CH 3-INP 14TSSOP
|
Automotive, AEC-Q100, 74HCS | Tape & Reel (TR) | Active | AND Gate | 3 | Schmitt Trigger Input | 2V ~ 6V | 7.8mA, 7.8mA | 1V ~ 3V | 1.5V ~ 4.2V |
|
|
CD4081BNS
IC GATE AND 4CH 2-INP 14SO
|
4000B | Tube | Last Time Buy | AND Gate | 2 | - | 3V ~ 18V | 6.8mA, 6.8mA | 1.5V ~ 4V | 3.5V ~ 11V |
