| Image | Mfr Part # | Series | Package | Product Status | Driven Configuration | Channel Type | Number of Drivers | Gate Type | Voltage - Supply | Logic Voltage - VIL, VIH | Current - Peak Output (Source, Sink) |
|---|---|---|---|---|---|---|---|---|---|---|---|
|
LM5114BSD/NOPB
IC GATE DRVR LOW-SIDE 6WSON
|
- | Tape & Reel (TR) | Active | Low-Side | Single | 1 | N-Channel MOSFET | 4V ~ 12.6V | 0.8V, 2.4V | 1.3A, 7.6A |
|
LM5060Q1MMX/NOPB
IC GATE DRVR HIGH-SIDE 10VSSOP
|
Automotive, AEC-Q100 | Tape & Reel (TR) | Active | High-Side | Single | 1 | N-Channel MOSFET | 5.5V ~ 65V | 0.8V, 2V | 24µA, 2.2mA |
|
UCC27611DRVT
IC GATE DRVR LOW-SIDE 6WSON
|
- | Tape & Reel (TR) | Active | Low-Side | Single | 1 | N-Channel MOSFET | 4V ~ 18V | 1.3V, 1.85V | 4A, 6A |
|
UCC27537DBVR
IC GATE DRVR LOW-SIDE SOT23-5
|
- | Tape & Reel (TR) | Active | Low-Side | Single | 1 | IGBT, N-Channel MOSFET | 10V ~ 32V | 1.2V, 2.2V | 2.5A, 5A |
|
UCC27201ADDAR
IC GATE DRVR HALF-BRIDGE 8SOPWR
|
- | Tape & Reel (TR) | Active | Half-Bridge | Independent | 2 | N-Channel MOSFET | 8V ~ 17V | 0.8V, 2.5V | 3A, 3A |
|
LM5113SDX/NOPB
IC GATE DRVR HALF-BRIDGE 10WSON
|
- | Tape & Reel (TR) | Not For New Designs | Half-Bridge | Independent | 2 | N-Channel MOSFET | 4.5V ~ 5.5V | 1.76V, 1.89V | 1.2A, 5A |
|
UC3706DW
IC GATE DRVR LOW-SIDE 16SOIC
|
- | Tube | Active | Low-Side | Independent | 2 | N-Channel MOSFET | 5V ~ 40V | 0.8V, 2.2V | 1.5A, 1.5A |
|
LM5110-2SD/NOPB
IC GATE DRVR LOW-SIDE 10WSON
|
- | Tape & Reel (TR) | Active | Low-Side | Independent | 2 | N-Channel MOSFET | 3.5V ~ 14V | 0.8V, 2.2V | 3A, 5A |
|
LM5111-2MY/NOPB
IC GATE DRVR LOW-SIDE 8MSOP
|
- | Tape & Reel (TR) | Active | Low-Side | Independent | 2 | N-Channel MOSFET | 3.5V ~ 14V | 0.8V, 2.2V | 3A, 5A |
|

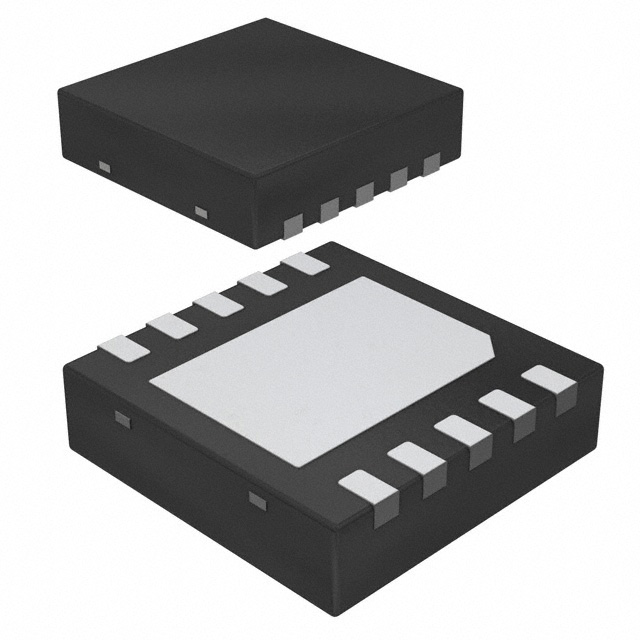

LM5105SDX/NOPB
IC GATE DRVR HALF-BRIDGE 10WSON
|
- | Tape & Reel (TR) | Active | Half-Bridge | Synchronous | 2 | N-Channel MOSFET | 8V ~ 14V | 0.8V, 2.2V | 1.8A, 1.8A |
|

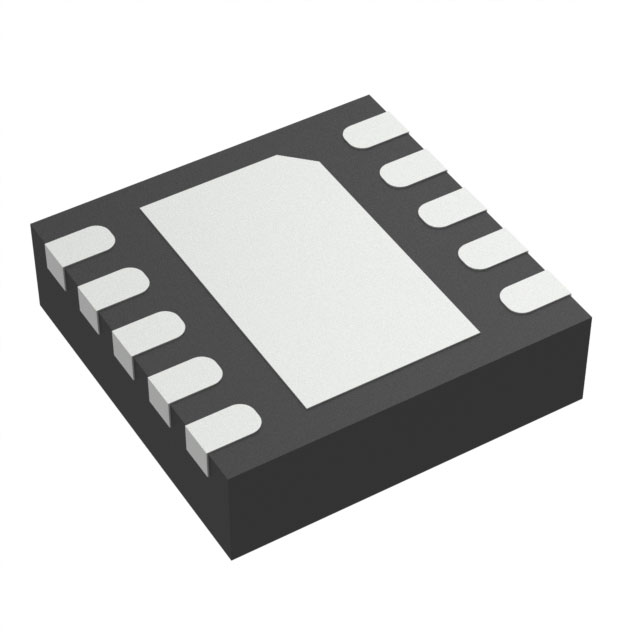

UCC27282QDRCTQ1
120V LOW COST HS/LS DRIVER
|
Automotive, AEC-Q100 | Tape & Reel (TR) | Active | Half-Bridge | Synchronous | 2 | N-Channel MOSFET | 5.5V ~ 16V | 1.3V, 1.9V | 2.5A, 3.5A |
|
|
UCC27211DPRT
IC GATE DRVR HALF-BRIDGE 10WSON
|
- | Tape & Reel (TR) | Active | Half-Bridge | Independent | 2 | N-Channel MOSFET | 8V ~ 17V | 1.3V, 2.7V | 4A, 4A |
