| Image | Mfr Part # | Series | Package | Product Status | Voltage - Supply | Mounting Type | Operating Temperature | Package / Case | Supplier Device Package | Programmable | Number of Logic Elements/Cells |
|---|---|---|---|---|---|---|---|---|---|---|---|
|

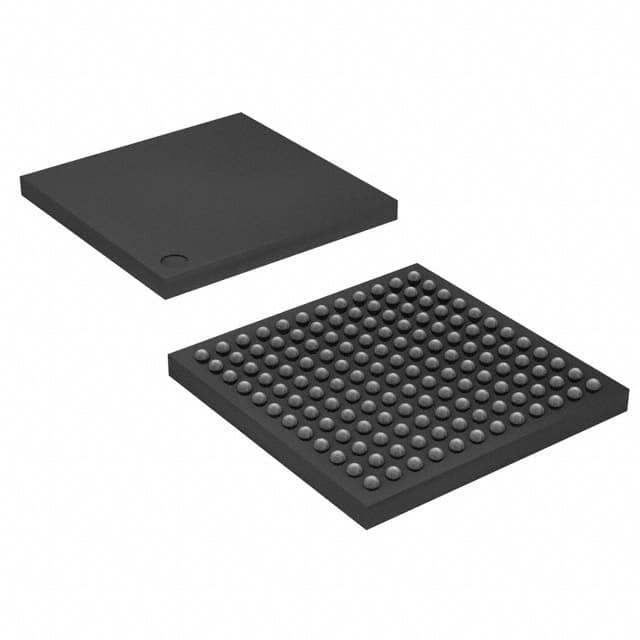

EP20K100EFC144-2N
IC FPGA 93 I/O 144FBGA
|
APEX-20KE® | Tray | Obsolete | 1.71V ~ 1.89V | Surface Mount | 0°C ~ 85°C (TJ) | 144-BGA | 144-FBGA (13x13) | Not Verified | 4160 |
|
EP3SL50F484C4G
IC FPGA 296 I/O 484FBGA
|
Stratix® III L | Tray | Active | 0.86V ~ 1.15V | Surface Mount | 0°C ~ 85°C (TJ) | 484-BBGA, FCBGA | 484-FBGA (23x23) | Not Verified | 47500 |
|

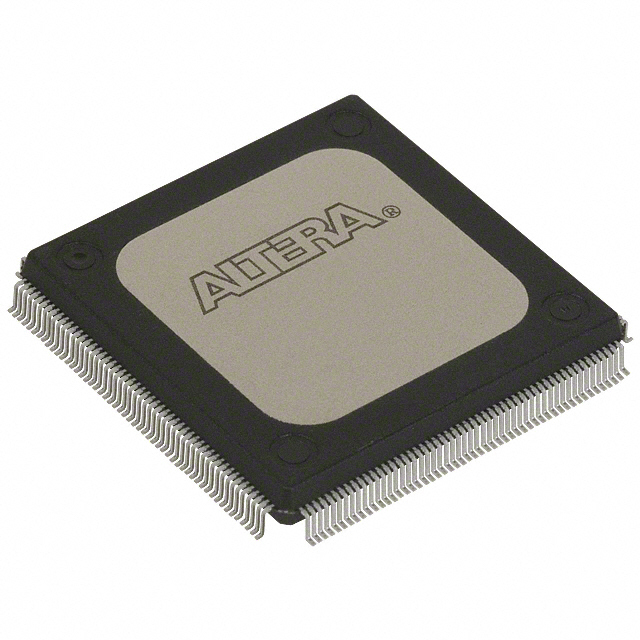

EP20K400ERI208-3
IC FPGA 208RQFP
|
APEX-20KE® | Tray | Obsolete | 1.71V ~ 1.89V | Surface Mount | -40°C ~ 100°C (TJ) | 208-BFQFP Exposed Pad | 208-RQFP (28x28) | Not Verified | 16640 |
|
EP3SL340F1760I4N
IC FPGA 1120 I/O 1760FBGA
|
Stratix® III L | Tray | Obsolete | 0.86V ~ 1.15V | Surface Mount | -40°C ~ 100°C (TJ) | 1760-BBGA, FCBGA | 1760-FCBGA (42.5x42.5) | Not Verified | 337500 |
|
|
EP3SL50F780C4G
IC FPGA 488 I/O 780FBGA
|
Stratix® III L | Tray | Active | 0.86V ~ 1.15V | Surface Mount | 0°C ~ 85°C (TJ) | 780-BBGA | 780-FBGA (29x29) | Not Verified | 47500 |
|
EP4SGX290FF35C2XAA
IC FPGA 116480 I/O 1152FBGA
|
Stratix® IV GX | Tray | Obsolete | 0.87V ~ 0.93V | Surface Mount | 0°C ~ 85°C (TJ) | 1152-BBGA, FCBGA | 1152-FBGA (35x35) | Not Verified | - |
|
|
EP20K1000EB652C1GZ
IC FPGA 488 I/O 652BGA
|
APEX-20KE® | Tray | Obsolete | 1.71V ~ 1.89V | Surface Mount | 0°C ~ 85°C (TJ) | 652-BBGA | 652-BGA (45x45) | Not Verified | 38400 |
|

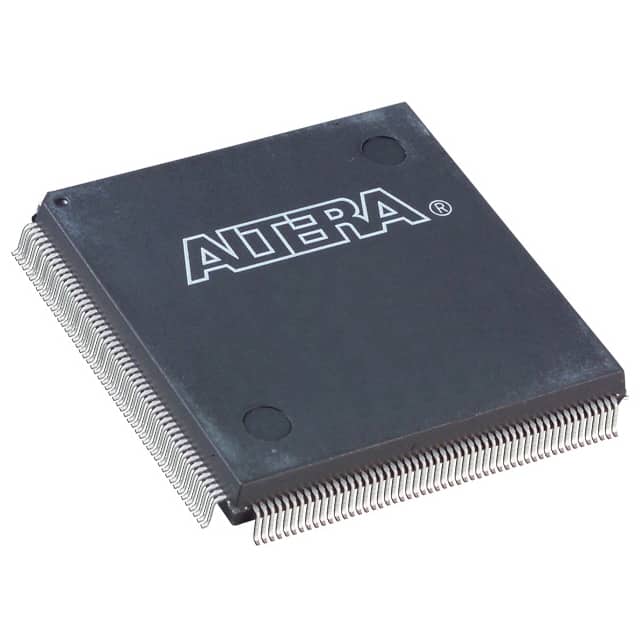

EP20K60EQC208-3N
IC FPGA 148 I/O 208QFP
|
APEX-20KE® | Tray | Obsolete | 1.71V ~ 1.89V | Surface Mount | 0°C ~ 85°C (TJ) | 208-BFQFP | 208-PQFP (28x28) | Not Verified | 2560 |
|

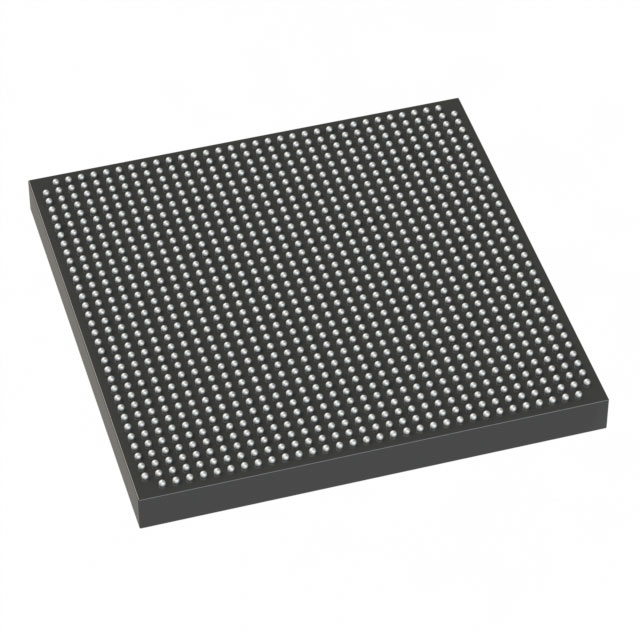

EP4SGX110FF35I4
IC FPGA 372 I/O 1152FBGA
|
Stratix® IV GX | Tray | Obsolete | 0.87V ~ 0.93V | Surface Mount | -40°C ~ 100°C (TJ) | 1152-BBGA, FCBGA | 1152-FBGA (35x35) | Not Verified | 105600 |
|
EP4SGX180KF40I4
IC FPGA 744 I/O 1517FBGA
|
Stratix® IV GX | Tray | Obsolete | 0.87V ~ 0.93V | Surface Mount | -40°C ~ 100°C (TJ) | 1517-BBGA, FCBGA | 1517-FBGA (40x40) | Not Verified | 175750 |
|
EP20K160ETC144-3
IC FPGA 88 I/O 144TQFP
|
APEX-20KE® | Tray | Obsolete | 1.71V ~ 1.89V | Surface Mount | 0°C ~ 85°C (TJ) | 144-LQFP | 144-TQFP (20x20) | Not Verified | 6400 |
|
EP4SGX180KF40C4NGB
IC FPGA 1517FBGA
|
Stratix® IV GX | Tray | Obsolete | 0.87V ~ 0.93V | Surface Mount | 0°C ~ 85°C (TJ) | 1517-BBGA, FCBGA | 1517-FBGA (40x40) | Not Verified | 175750 |
