| Image | Mfr Part # | Series | Package | Product Status | Voltage - Supply | Mounting Type | Operating Temperature | Package / Case | Supplier Device Package | Programmable | Number of Logic Elements/Cells |
|---|---|---|---|---|---|---|---|---|---|---|---|
|
EP4SE360F35I3
IC FPGA 744 I/O 1152FBGA
|
STRATIX® IV E | Tray | Obsolete | 0.87V ~ 0.93V | Surface Mount | -40°C ~ 100°C (TJ) | 1152-BBGA, FCBGA | 1152-FBGA (35x35) | Not Verified | 353600 |
|
EP4SGX290FF35C4
IC FPGA 564 I/O 1152FBGA
|
Stratix® IV GX | Tray | Obsolete | 0.87V ~ 0.93V | Surface Mount | 0°C ~ 85°C (TJ) | 1152-BBGA, FCBGA | 1152-FBGA (35x35) | Not Verified | 291200 |
|

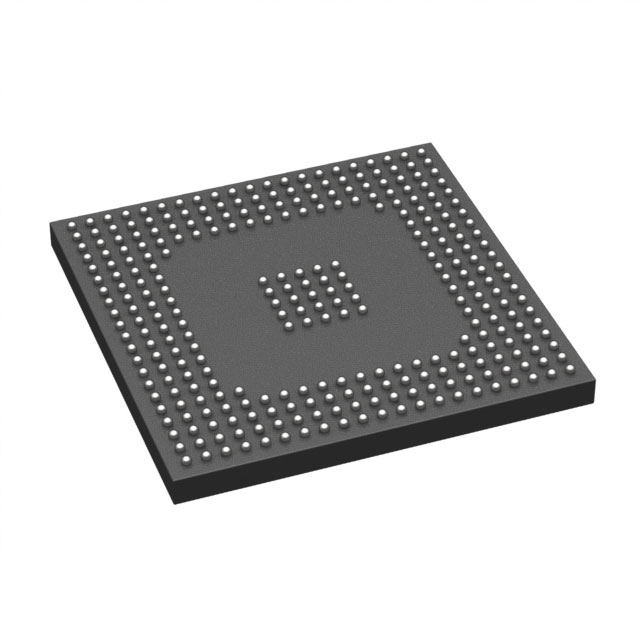

5CGXFC4F6M11C6N
IC FPGA 129 I/O 301MBGA
|
Cyclone® V GX | Tray | Active | 1.07V ~ 1.13V | Surface Mount | 0°C ~ 85°C (TJ) | 301-TFBGA | 301-MBGA (11x11) | Not Verified | 50000 |
|
EP4SGX70HF35C4G
IC FPGA 488 I/O 1152FBGA
|
Stratix® IV GX | Tray | Active | 0.87V ~ 0.93V | Surface Mount | 0°C ~ 85°C (TJ) | 1152-BBGA, FCBGA | 1152-FBGA (35x35) | Not Verified | 72600 |
|
EP4SGX230DF29C3
IC FPGA 372 I/O 780FBGA
|
Stratix® IV GX | Tray | Obsolete | 0.87V ~ 0.93V | Surface Mount | 0°C ~ 85°C (TJ) | 780-BBGA, FCBGA | 780-FBGA (29x29) | Not Verified | 228000 |
|
EP2C8Q208I8
IC FPGA 138 I/O 208QFP
|
Cyclone® II | Tray | Active | 1.15V ~ 1.25V | Surface Mount | -40°C ~ 100°C (TJ) | 208-BFQFP | 208-PQFP (28x28) | Not Verified | 8256 |
|
EP4SGX70DF29C2XN
IC FPGA 372 I/O 780FBGA
|
Stratix® IV GX | Tray | Obsolete | 0.87V ~ 0.93V | Surface Mount | 0°C ~ 85°C (TJ) | 780-BBGA, FCBGA | 780-FBGA (29x29) | Not Verified | 72600 |
|
5CGXBC9E6F31C7N
IC FPGA 480 I/O 896FBGA
|
Cyclone® V GX | Tray | Active | 1.07V ~ 1.13V | Surface Mount | 0°C ~ 85°C (TJ) | 896-BGA | 896-FBGA (31x31) | Not Verified | 301000 |
|
EP4SGX290FH29I4N
IC FPGA 289 I/O 780HBGA
|
Stratix® IV GX | Tray | Obsolete | 0.87V ~ 0.93V | Surface Mount | -40°C ~ 100°C (TJ) | 780-BBGA, FCBGA | 780-HBGA (33x33) | Not Verified | 291200 |
|
EP2C20AF484I8N
IC FPGA 315 I/O 484FBGA
|
Cyclone® II | Tray | Active | 1.15V ~ 1.25V | Surface Mount | -40°C ~ 100°C (TJ) | 484-BGA | 484-FBGA (23x23) | Not Verified | 18752 |
|
EP2C5T144C7
IC FPGA 89 I/O 144TQFP
|
Cyclone® II | Tray | Active | 1.15V ~ 1.25V | Surface Mount | 0°C ~ 85°C (TJ) | 144-LQFP | 144-TQFP (20x20) | Not Verified | 4608 |
|

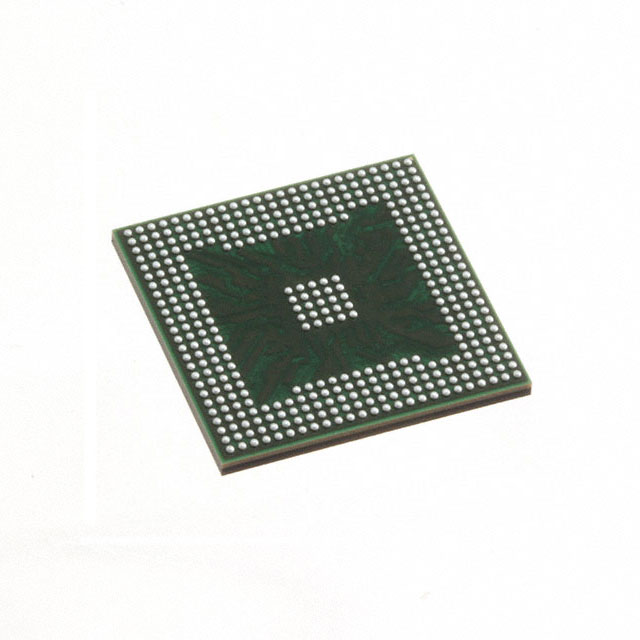

5CGXFC5C6M13C6N
IC FPGA 175 I/O 383MBGA
|
Cyclone® V GX | Tray | Active | 1.07V ~ 1.13V | Surface Mount | 0°C ~ 85°C (TJ) | 383-TFBGA | 383-MBGA (13x13) | Not Verified | 77000 |
