| Image | Mfr Part # | Series | Package | Product Status | Voltage - Supply | Mounting Type | Operating Temperature | Package / Case | Supplier Device Package | Programmable | Number of Logic Elements/Cells |
|---|---|---|---|---|---|---|---|---|---|---|---|
|

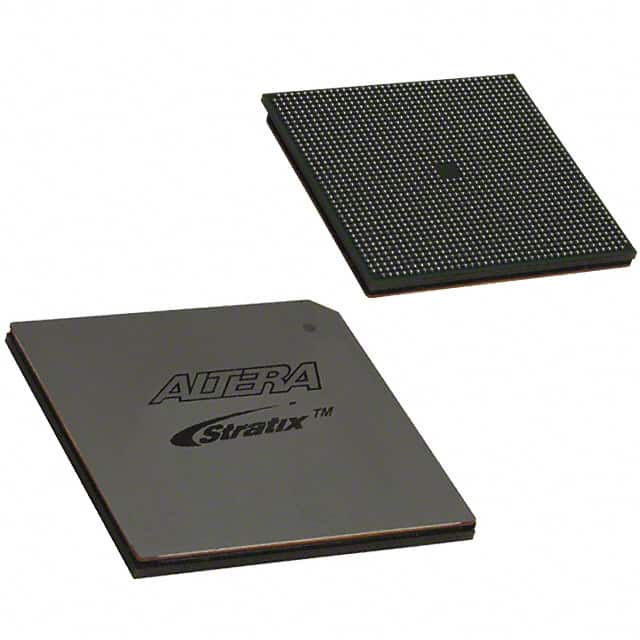

EP2S130F1508C4RB
IC FPGA 1126 I/O 1508FBGA
|
Stratix® II | Tray | Obsolete | 1.15V ~ 1.25V | Surface Mount | 0°C ~ 85°C (TJ) | 1508-BBGA, FCBGA | 1508-FBGA, FC (40x40) | Not Verified | 132540 |
|
1SG280LN2F43E2VGS3
IC FPGA 688 I/O 1760FBGA
|
Stratix® 10 GX | Tray | Active | 0.77V ~ 0.97V | Surface Mount | 0°C ~ 100°C (TJ) | 1760-BBGA, FCBGA | 1760-FBGA (42.5x42.5) | Not Verified | 2800000 |
|
1SG280LN3F43I2LP
IC FPGA 688 I/O 1760FBGA
|
Stratix® 10 GX | Tray | Active | 0.82V ~ 0.88V | Surface Mount | -40°C ~ 100°C (TJ) | 1760-BBGA, FCBGA | 1760-FBGA (42.5x42.5) | Not Verified | 2800000 |
|
EP4CE55F29I8L
IC FPGA 374 I/O 780FBGA
|
Cyclone® IV E | Tray | Active | 0.97V ~ 1.03V | Surface Mount | -40°C ~ 100°C (TJ) | 780-BGA | 780-FBGA (29x29) | Not Verified | 55856 |
|
EP2S180F1020C3N
IC FPGA 742 I/O 1020FBGA
|
Stratix® II | Bulk | Active | 1.15V ~ 1.25V | Surface Mount | 0°C ~ 85°C (TJ) | 1020-BBGA, FCBGA | 1020-FBGA (33x33) | Not Verified | 179400 |
|
1SG280HN2F43E2LG
IC FPGA 688 I/O 1760FBGA
|
Stratix® 10 GX | Tray | Active | 0.82V ~ 0.88V | Surface Mount | 0°C ~ 100°C (TJ) | 1760-BBGA, FCBGA | 1760-FBGA (42.5x42.5) | Not Verified | 2800000 |
|
EP4CE55F29I7
IC FPGA 374 I/O 780FBGA
|
Cyclone® IV E | Tray | Active | 1.15V ~ 1.25V | Surface Mount | -40°C ~ 100°C (TJ) | 780-BGA | 780-FBGA (29x29) | Not Verified | 55856 |
|
EP20K200RC208-2
IC FPGA 144 I/O 208RQFP
|
APEX-20K® | Tray | Obsolete | 2.375V ~ 2.625V | Surface Mount | 0°C ~ 85°C (TJ) | 208-BFQFP Exposed Pad | 208-RQFP (28x28) | Not Verified | 8320 |
|
EP20K100CF144C9
IC FPGA 93 I/O 144TQFP
|
APEX-20K® | Tray | Obsolete | 2.375V ~ 2.625V | Surface Mount | 0°C ~ 85°C (TJ) | 144-LQFP | 144-TQFP (20x20) | Not Verified | 4160 |
|
10M16SAE144C8G
IC FPGA 101 I/O 144EQFP
|
MAX® 10 | Tray | Active | 2.85V ~ 3.465V | Surface Mount | 0°C ~ 85°C (TJ) | 144-LQFP Exposed Pad | 144-EQFP (20x20) | Not Verified | 16000 |
|
EP2S180F1508C4N
IC FPGA 1170 I/O 1508FBGA
|
Stratix® II | Tray | Obsolete | 1.15V ~ 1.25V | Surface Mount | 0°C ~ 85°C (TJ) | 1508-BBGA, FCBGA | 1508-FBGA, FC (40x40) | Not Verified | 179400 |
|
1SG211HN1F43E2LG
IC FPGA 688 I/O 1760FBGA
|
Stratix® 10 GX | Tray | Active | 0.82V ~ 0.88V | Surface Mount | 0°C ~ 100°C (TJ) | 1760-BBGA, FCBGA | 1760-FBGA (42.5x42.5) | Not Verified | 2110000 |
