| Image | Mfr Part # | Series | Package | Product Status | Voltage - Supply | Mounting Type | Operating Temperature | Package / Case | Supplier Device Package | Programmable | Number of Logic Elements/Cells |
|---|---|---|---|---|---|---|---|---|---|---|---|
|
EP2S90F1508C5N
IC FPGA 902 I/O 1508FBGA
|
Stratix® II | Tray | Obsolete | 1.15V ~ 1.25V | Surface Mount | 0°C ~ 85°C (TJ) | 1508-BBGA, FCBGA | 1508-FBGA, FC (40x40) | Not Verified | 90960 |
|
EP4CE10E22C7
IC FPGA 91 I/O 144EQFP
|
Cyclone® IV E | Tray | Active | 1.15V ~ 1.25V | Surface Mount | 0°C ~ 85°C (TJ) | 144-LQFP Exposed Pad | 144-EQFP (20x20) | Not Verified | 10320 |
|
1SG280HN3F43I1VG
IC FPGA 688 I/O 1760FBGA
|
Stratix® 10 GX | Tray | Active | 0.77V ~ 0.97V | Surface Mount | -40°C ~ 100°C (TJ) | 1760-BBGA, FCBGA | 1760-FBGA (42.5x42.5) | Not Verified | 2800000 |
|
EP2S130F1020I4RB
IC FPGA 742 I/O 1020FBGA
|
Stratix® II | Tray | Obsolete | 1.15V ~ 1.25V | Surface Mount | -40°C ~ 100°C (TJ) | 1020-BBGA | 1020-FBGA (33x33) | Not Verified | 132540 |
|
EP4CE30F23I8LN
IC FPGA 328 I/O 484FBGA
|
Cyclone® IV E | Tray | Active | 0.97V ~ 1.03V | Surface Mount | -40°C ~ 100°C (TJ) | 484-BGA | 484-FBGA (23x23) | Not Verified | 28848 |
|

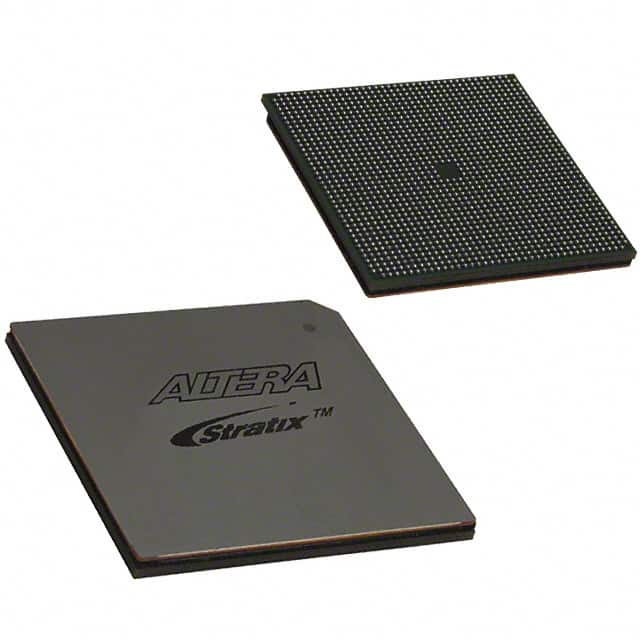

EP2S130F1508C5NRB
IC FPGA 1126 I/O 1508FBGA
|
Stratix® II | Tray | Obsolete | 1.15V ~ 1.25V | Surface Mount | 0°C ~ 85°C (TJ) | 1508-BBGA, FCBGA | 1508-FBGA, FC (40x40) | Not Verified | 132540 |
|
1SG280HU1F50E2VGS3
IC FPGA 704 I/O 2397FBGA
|
Stratix® 10 GX | Tray | Discontinued at | 0.77V ~ 0.97V | Surface Mount | 0°C ~ 100°C (TJ) | 2397-BBGA, FCBGA | 2397-FBGA, FC (50x50) | Not Verified | 2800000 |
|
5AGXFB7H6F35C6G
IC FPGA 544 I/O 1152FBGA
|
Arria V GX | Tray | Active | 1.07V ~ 1.13V | Surface Mount | 0°C ~ 85°C (TJ) | 1152-BBGA, FCBGA | 1152-FBGA, FC (35x35) | Not Verified | 504140 |
|
EP2S90F1508I4N
IC FPGA 902 I/O 1508FBGA
|
Stratix® II | Tray | Obsolete | 1.15V ~ 1.25V | Surface Mount | -40°C ~ 100°C (TJ) | 1508-BBGA, FCBGA | 1508-FBGA, FC (40x40) | Not Verified | 90960 |
|
EP2S130F1508C4RB
IC FPGA 1126 I/O 1508FBGA
|
Stratix® II | Tray | Obsolete | 1.15V ~ 1.25V | Surface Mount | 0°C ~ 85°C (TJ) | 1508-BBGA, FCBGA | 1508-FBGA, FC (40x40) | Not Verified | 132540 |
|

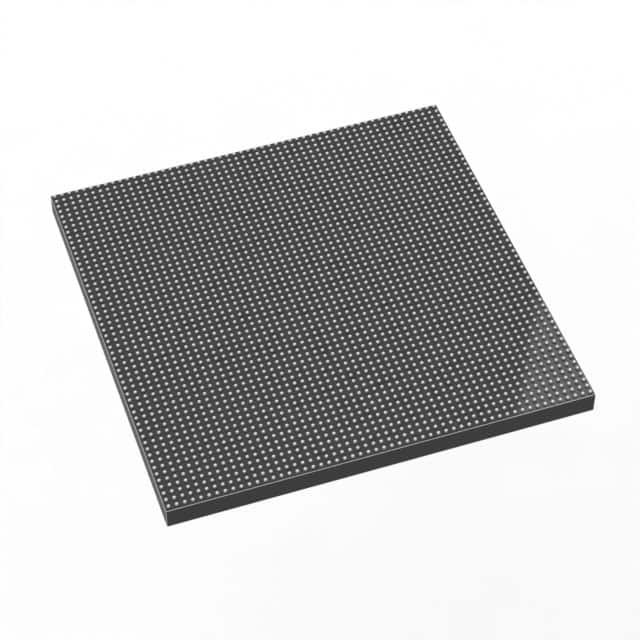

1SG280HH2F55E2VGS3
IC FPGA 1160 I/O 2912BGA
|
Stratix® 10 GX | Tray | Active | 0.77V ~ 0.97V | Surface Mount | 0°C ~ 100°C (TJ) | 2912-BBGA, FCBGA | 2912-FBGA, FC (55x55) | Not Verified | 2800000 |
|
EP20K100FC144-3
IC FPGA 93 I/O 144TQFP
|
APEX-20K® | Tray | Obsolete | 2.375V ~ 2.625V | Surface Mount | 0°C ~ 85°C (TJ) | 144-LQFP | 144-TQFP (20x20) | Not Verified | 4160 |
