| Image | Mfr Part # | Series | Package | Product Status | Voltage - Supply | Mounting Type | Operating Temperature | Package / Case | Supplier Device Package | Programmable | Number of Logic Elements/Cells |
|---|---|---|---|---|---|---|---|---|---|---|---|
|
EP20K200EQC240-1X
IC FPGA 168 I/O 240QFP
|
APEX-20KE® | Tray | Obsolete | 1.71V ~ 1.89V | Surface Mount | 0°C ~ 85°C (TJ) | 240-BFQFP | 240-PQFP (32x32) | Not Verified | 8320 |
|
EP2C15AF484A7N
IC FPGA 315 I/O 484FBGA
|
Cyclone® II | Tray | Active | 1.15V ~ 1.25V | Surface Mount | -40°C ~ 125°C (TJ) | 484-BGA | 484-FBGA (23x23) | Not Verified | 14448 |
|
10AX066K4F35E3SG
IC FPGA 396 I/O 1152FBGA
|
Arria 10 GX | Tray | Active | 0.87V ~ 0.93V | Surface Mount | 0°C ~ 100°C (TJ) | 1152-BBGA, FCBGA | 1152-FCBGA (35x35) | Not Verified | 660000 |
|
|
10AX048H2F34I1HG
IC FPGA 492 I/O 1152FBGA
|
Arria 10 GX | Tray | Active | 0.87V ~ 0.98V | Surface Mount | -40°C ~ 100°C (TJ) | 1152-BBGA, FCBGA | 1152-FCBGA (35x35) | Not Verified | 480000 |
|
EP20K160EFC484-1
IC FPGA 316 I/O 484FBGA
|
APEX-20KE® | Tray | Obsolete | 1.71V ~ 1.89V | Surface Mount | 0°C ~ 85°C (TJ) | 484-BBGA | 484-FBGA (23x23) | Not Verified | 6400 |
|

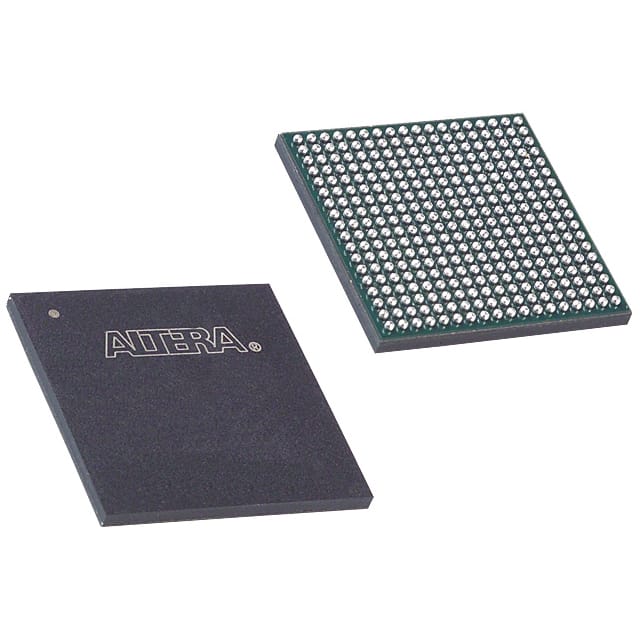

EP20K60EFC324-1N
IC FPGA 196 I/O 324FBGA
|
APEX-20KE® | Tray | Obsolete | 1.71V ~ 1.89V | Surface Mount | 0°C ~ 85°C (TJ) | 324-BGA | 324-FBGA (19x19) | Not Verified | 2560 |
|
EP2C5T144C6
IC FPGA 89 I/O 144TQFP
|
Cyclone® II | Tray | Active | 1.15V ~ 1.25V | Surface Mount | 0°C ~ 85°C (TJ) | 144-LQFP | 144-TQFP (20x20) | Not Verified | 4608 |
|
|
10AX066H1F34E1HG
IC FPGA 492 I/O 1152FBGA
|
Arria 10 GX | Tray | Active | 0.87V ~ 0.98V | Surface Mount | 0°C ~ 100°C (TJ) | 1152-BBGA, FCBGA | 1152-FCBGA (35x35) | Not Verified | 660000 |
|

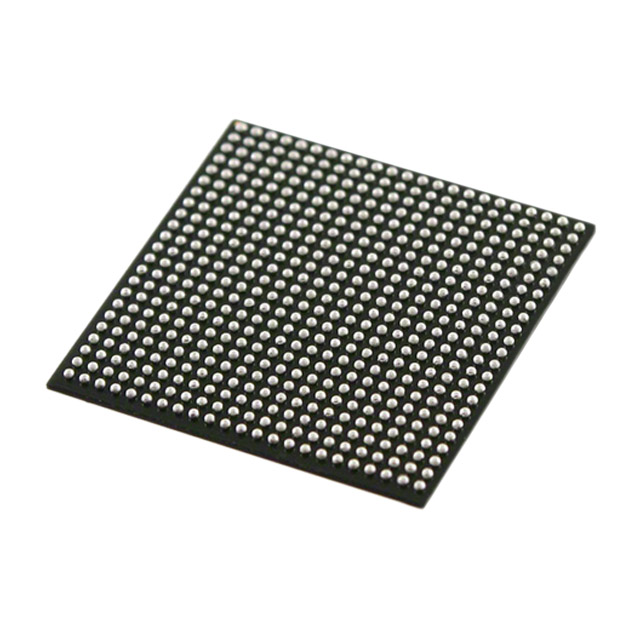

5CGXFC5C6F23C6N
IC FPGA 240 I/O 484FBGA
|
Cyclone® V GX | Tray | Active | 1.07V ~ 1.13V | Surface Mount | 0°C ~ 85°C (TJ) | 484-BGA | 484-FBGA (23x23) | Not Verified | 77000 |
|
|
10AX057H2F34E1HG
IC FPGA 492 I/O 1152FBGA
|
Arria 10 GX | Tray | Active | 0.87V ~ 0.98V | Surface Mount | 0°C ~ 100°C (TJ) | 1152-BBGA, FCBGA | 1152-FCBGA (35x35) | Not Verified | 570000 |
|
5CGXFC7D6F27I7
IC FPGA 336 I/O 672FBGA
|
Cyclone® V GX | Tray | Active | 1.07V ~ 1.13V | Surface Mount | -40°C ~ 100°C (TJ) | 672-BGA | 672-FBGA (27x27) | Not Verified | 149500 |
|
EP20K160EFC484-2X
IC FPGA 316 I/O 484FBGA
|
APEX-20KE® | Tray | Obsolete | 1.71V ~ 1.89V | Surface Mount | 0°C ~ 85°C (TJ) | 484-BBGA | 484-FBGA (23x23) | Not Verified | 6400 |
