| Image | Mfr Part # | Series | Package | Product Status | Voltage - Supply | Mounting Type | Operating Temperature | Package / Case | Supplier Device Package | Programmable | Number of Logic Elements/Cells |
|---|---|---|---|---|---|---|---|---|---|---|---|
|
EP20K1500EFC1020-2X
IC FPGA 808 I/O 1020FBGA
|
APEX-20KE® | Tray | Obsolete | 1.71V ~ 1.89V | Surface Mount | 0°C ~ 85°C (TJ) | 1020-BBGA | 1020-FBGA (33x33) | Not Verified | 51840 |
|
EP20K30EQC240-2
IC FPGA 240QFP
|
APEX-20KE® | Tray | Obsolete | 1.71V ~ 1.89V | Surface Mount | 0°C ~ 85°C (TJ) | 240-BFQFP | 240-PQFP (32x32) | Not Verified | 1200 |
|
10AX048E1F29I1SG
IC FPGA 360 I/O 780FBGA
|
Arria 10 GX | Tray | Discontinued at | 0.87V ~ 0.98V | Surface Mount | -40°C ~ 100°C (TJ) | 780-BBGA, FCBGA | 780-FBGA (29x29) | Not Verified | 480000 |
|

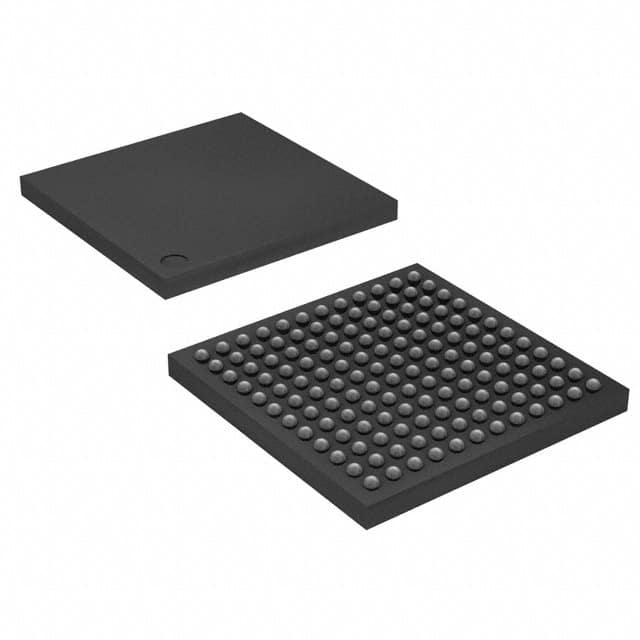

EP20K60EFC144-2XN
IC FPGA 93 I/O 144FBGA
|
APEX-20KE® | Tray | Obsolete | 1.71V ~ 1.89V | Surface Mount | 0°C ~ 85°C (TJ) | 144-BGA | 144-FBGA (13x13) | Not Verified | 2560 |
|

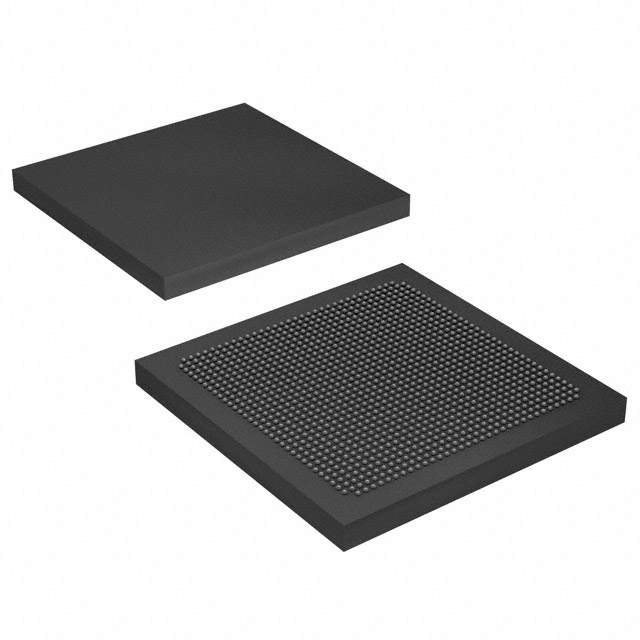

10AX066K3F35I3SGES
IC FPGA 396 I/O 1152FCBGA
|
Arria 10 GX | Tray | Obsolete | 0.87V ~ 0.93V | Surface Mount | -40°C ~ 100°C (TJ) | 1152-BBGA, FCBGA | 1152-FCBGA (35x35) | Not Verified | 660000 |
|

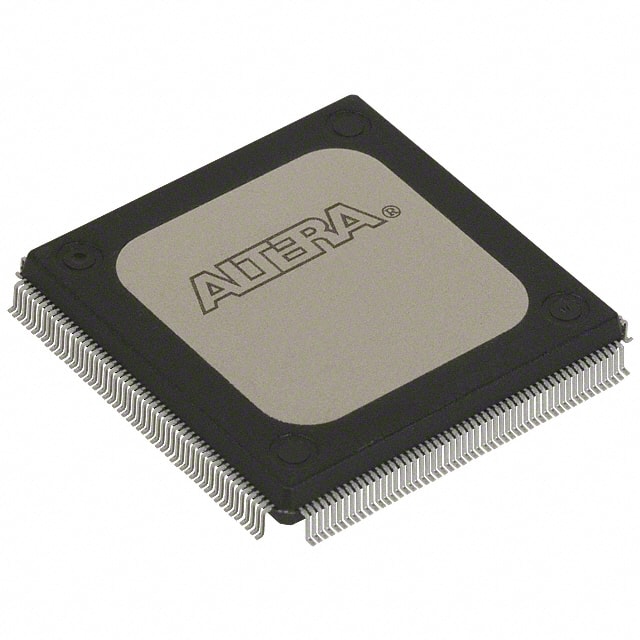

EP20K300ERC208-1X
IC FPGA 208RQFP
|
APEX-20KE® | Tray | Obsolete | 1.71V ~ 1.89V | Surface Mount | 0°C ~ 85°C (TJ) | 208-BFQFP Exposed Pad | 208-RQFP (28x28) | Not Verified | 11520 |
|
10AX032H1F34E1HG
IC FPGA 384 I/O 1152FBGA
|
Arria 10 GX | Tray | Active | 0.87V ~ 0.98V | Surface Mount | 0°C ~ 100°C (TJ) | 1152-BBGA, FCBGA | 1152-FCBGA (35x35) | Not Verified | 320000 |
|
EP20K300EBC652-1X
IC FPGA 408 I/O 652BGA
|
APEX-20KE® | Tray | Obsolete | 1.71V ~ 1.89V | Surface Mount | 0°C ~ 85°C (TJ) | 652-BGA | 652-BGA (45x45) | Not Verified | 11520 |
|
10AX048E2F29E2SG
IC FPGA 360 I/O 780FBGA
|
Arria 10 GX | Tray | Active | 0.87V ~ 0.98V | Surface Mount | 0°C ~ 100°C (TJ) | 780-BBGA, FCBGA | 780-FBGA, FC (29x29) | Not Verified | 480000 |
|
EP20K200EQC240-2X
IC FPGA 168 I/O 240QFP
|
APEX-20KE® | Tray | Obsolete | 1.71V ~ 1.89V | Surface Mount | 0°C ~ 85°C (TJ) | 240-BFQFP | 240-PQFP (32x32) | Not Verified | 8320 |
|
EP4SE820H35I4N
IC FPGA 744 I/O 1152HBGA
|
STRATIX® IV E | Tray | Obsolete | 0.87V ~ 0.93V | Surface Mount | -40°C ~ 100°C (TJ) | 1152-BBGA, FCBGA | 1152-HBGA (42.5x42.5) | Not Verified | 813050 |
|
10AX022C4U19I3SG
IC FPGA 240 I/O 484UBGA
|
Arria 10 GX | Tray | Active | 0.87V ~ 0.98V | Surface Mount | -40°C ~ 100°C (TJ) | 484-BFBGA | 484-UBGA (19x19) | Not Verified | 220000 |
