| Image | Mfr Part # | Series | Package | Product Status | Voltage - Supply | Mounting Type | Operating Temperature | Package / Case | Supplier Device Package | Programmable | Number of Logic Elements/Cells |
|---|---|---|---|---|---|---|---|---|---|---|---|
|
EP4SGX290KF43I3N
IC FPGA 880 I/O 1760FBGA
|
Stratix® IV GX | Tray | Obsolete | 0.87V ~ 0.93V | Surface Mount | -40°C ~ 100°C (TJ) | 1760-BBGA, FCBGA | 1760-FCBGA (42.5x42.5) | Not Verified | 291200 |
|
1ST280EY2F55I2VG
IC FPGA 296 I/O 2912BGA
|
Stratix® 10 TX | Tray | Active | 0.77V ~ 0.97V | Surface Mount | -40°C ~ 100°C (TJ) | 2912-BBGA, FCBGA | 2912-FBGA, FC (55x55) | Not Verified | 2800000 |
|
5SGSMD5H3F35I4G
IC FPGA 552 I/O 1152FBGA
|
Stratix® V GS | Tray | Active | 0.82V ~ 0.88V | Surface Mount | -40°C ~ 100°C (TJ) | 1152-BBGA, FCBGA | 1152-FBGA (35x35) | Not Verified | 457000 |
|

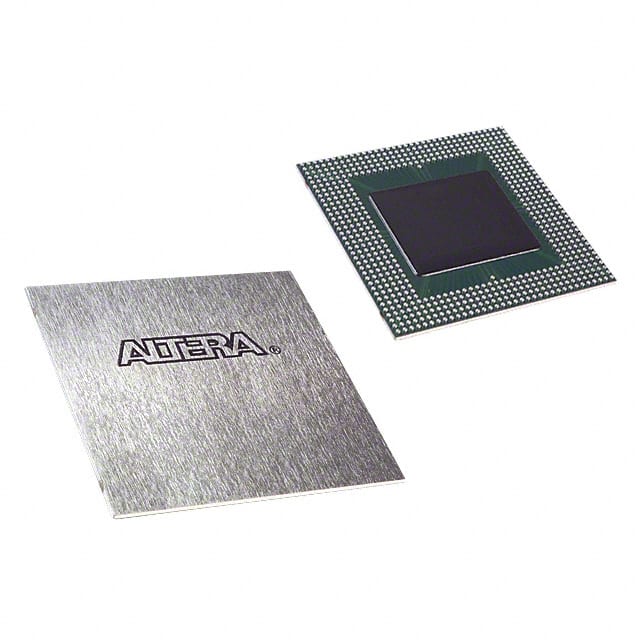

EP20K400EBC652-1N
IC FPGA 488 I/O 652BGA
|
APEX-20KE® | Tray | Obsolete | 1.71V ~ 1.89V | Surface Mount | 0°C ~ 85°C (TJ) | 652-BGA | 652-BGA (45x45) | Not Verified | 16640 |
|
|
1ST280EY3F55I3XG
IC FPGA 296 I/O 2912BGA
|
Stratix® 10 TX | Tray | Active | 0.82V ~ 0.88V | Surface Mount | -40°C ~ 100°C (TJ) | 2912-BBGA, FCBGA | 2912-FBGA, FC (55x55) | Not Verified | 2800000 |
|
EP4SGX110DF29I3
IC FPGA 372 I/O 780FBGA
|
Stratix® IV GX | Tray | Obsolete | 0.87V ~ 0.93V | Surface Mount | -40°C ~ 100°C (TJ) | 780-BBGA, FCBGA | 780-FBGA (29x29) | Not Verified | 105600 |
|
1SG085HN3F43E1VG
IC FPGA 688 I/O 1760FBGA
|
Stratix® 10 GX | Tray | Active | 0.77V ~ 0.97V | Surface Mount | 0°C ~ 100°C (TJ) | 1760-BBGA, FCBGA | 1760-FBGA (42.5x42.5) | Not Verified | 850000 |
|

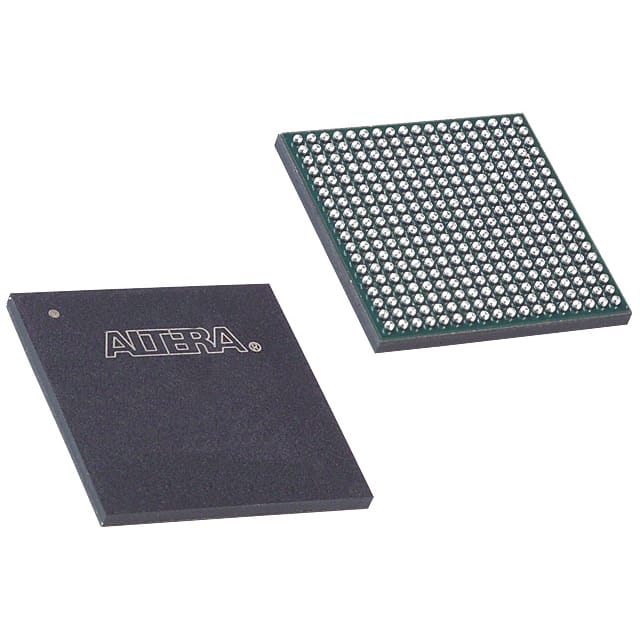

EP20K100EFC324-1N
IC FPGA 246 I/O 324FBGA
|
APEX-20KE® | Tray | Obsolete | 1.71V ~ 1.89V | Surface Mount | 0°C ~ 85°C (TJ) | 324-BGA | 324-FBGA (19x19) | Not Verified | 4160 |
|
EP20K1500CB652C7ES
IC FPGA 488 I/O 652BGA
|
APEX-20KE® | Tray | Obsolete | 2.375V ~ 2.625V | Surface Mount | 0°C ~ 85°C (TJ) | 652-BBGA | 652-BGA (45x45) | Not Verified | 51840 |
|
1SG110HN3F43E2LG
IC FPGA 688 I/O 1760FBGA
|
Stratix® 10 GX | Tray | Active | 0.82V ~ 0.88V | Surface Mount | 0°C ~ 100°C (TJ) | 1760-BBGA, FCBGA | 1760-FBGA (42.5x42.5) | Not Verified | 1100000 |
|
EP20K160EQC240-1X
IC FPGA 175 I/O 240QFP
|
APEX-20KE® | Tray | Obsolete | 1.71V ~ 1.89V | Surface Mount | 0°C ~ 85°C (TJ) | 240-BFQFP | 240-PQFP (32x32) | Not Verified | 6400 |
|
EP4SGX360KF40I3NAC
IC FPGA 744 I/O 1517FBGA
|
Stratix® IV GX | Tray | Obsolete | 0.87V ~ 0.93V | Surface Mount | -40°C ~ 100°C (TJ) | 1517-BBGA, FCBGA | 1517-FBGA (40x40) | Not Verified | 353600 |
