| Image | Mfr Part # | Series | Package | Product Status | Voltage - Supply | Mounting Type | Operating Temperature | Package / Case | Supplier Device Package | Programmable | Number of Logic Elements/Cells |
|---|---|---|---|---|---|---|---|---|---|---|---|
|
5SGSMD3E3H29C4G
IC FPGA 360 I/O 780HBGA
|
Stratix® V GS | Tray | Active | 0.82V ~ 0.88V | Surface Mount | 0°C ~ 85°C (TJ) | 780-BBGA, FCBGA | 780-HBGA (33x33) | Not Verified | 236000 |
|
1ST250EY1F55E2VG
IC FPGA 296 I/O 2912BGA
|
Stratix® 10 TX | Tray | Active | 0.77V ~ 0.97V | Surface Mount | 0°C ~ 100°C (TJ) | 2912-BBGA, FCBGA | 2912-FBGA, FC (55x55) | Not Verified | 2500000 |
|
5SGSMD3H3F35C2LG
IC FPGA 432 I/O 1152FBGA
|
Stratix® V GS | Tray | Active | 0.82V ~ 0.88V | Surface Mount | 0°C ~ 85°C (TJ) | 1152-BBGA, FCBGA | 1152-FBGA (35x35) | Not Verified | 236000 |
|
5SGSED6K3F40C2G
IC FPGA 696 I/O 1517FBGA
|
Stratix® V GS | Tray | Active | 0.87V ~ 0.93V | Surface Mount | 0°C ~ 85°C (TJ) | 1517-BBGA, FCBGA | 1517-FBGA (40x40) | Not Verified | 583000 |
|

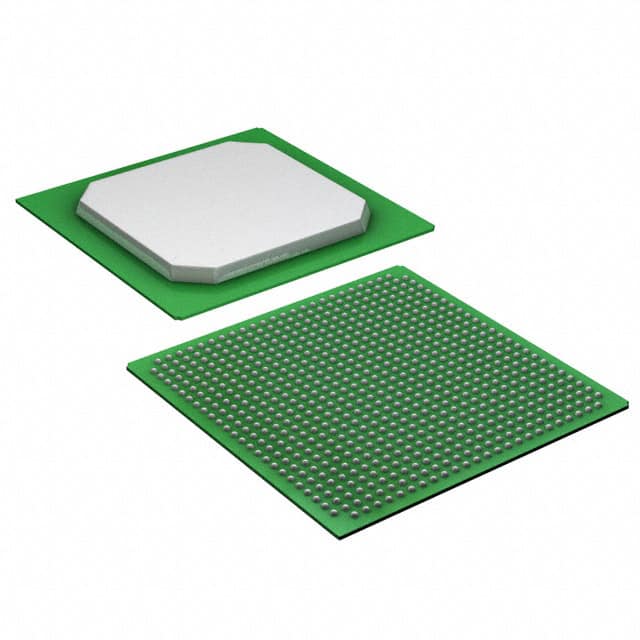

EP4CGX50DF27I7N
IC FPGA 310 I/O 672FBGA
|
Cyclone® IV GX | Tray | Active | 1.16V ~ 1.24V | Surface Mount | -40°C ~ 100°C (TJ) | 672-BGA | 672-FBGA (27x27) | Not Verified | 49888 |
|
1ST210EU2F50I1VGAS
IC FPGA 440 I/O 2397BGA
|
Stratix® 10 TX | Tray | Active | 0.77V ~ 0.97V | Surface Mount | -40°C ~ 100°C (TJ) | 2397-BBGA, FCBGA | 2397-FBGA, FC (50x50) | Not Verified | 2100000 |
|
EP1S20F780C7N
IC FPGA 586 I/O 780FBGA
|
Stratix® | Tray | Obsolete | 1.425V ~ 1.575V | Surface Mount | 0°C ~ 85°C (TJ) | 780-BBGA, FCBGA | 780-FBGA (29x29) | Not Verified | 18460 |
|
5SGSED6N3F45C2G
IC FPGA 840 I/O 1932FBGA
|
Stratix® V GS | Tray | Active | 0.87V ~ 0.93V | Surface Mount | 0°C ~ 85°C (TJ) | 1932-BBGA, FCBGA | 1932-FBGA, FC (45x45) | Not Verified | 583000 |
|

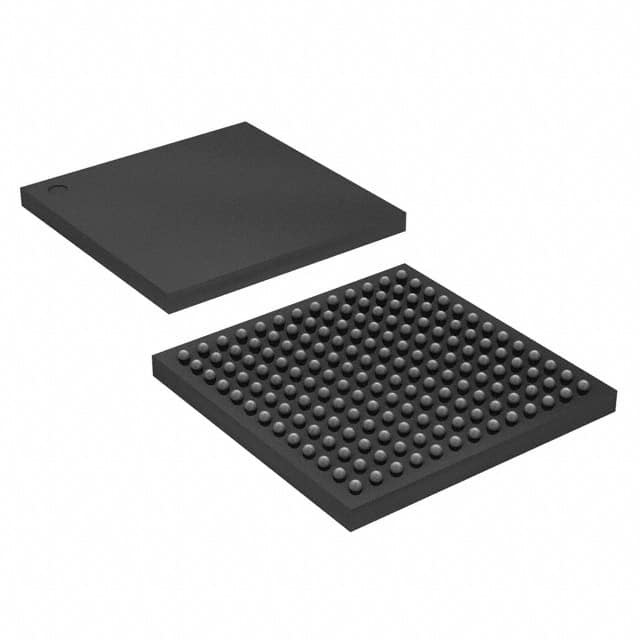

EP4CGX30BF14C6N
IC FPGA 72 I/O 169FBGA
|
Cyclone® IV GX | Tray | Active | 1.16V ~ 1.24V | Surface Mount | 0°C ~ 85°C (TJ) | 169-LBGA | 169-FBGA (14x14) | Not Verified | 29440 |
|
|
1ST210EU2F50I2LGAS
IC FPGA 440 I/O 2397BGA
|
Stratix® 10 TX | Tray | Active | 0.82V ~ 0.88V | Surface Mount | -40°C ~ 100°C (TJ) | 2397-BBGA, FCBGA | 2397-FBGA, FC (50x50) | Not Verified | 2100000 |
|
5SGSMD5H2F35I2LG
IC FPGA 552 I/O 1152FBGA
|
Stratix® V GS | Tray | Active | 0.82V ~ 0.88V | Surface Mount | -40°C ~ 100°C (TJ) | 1152-BBGA, FCBGA | 1152-FBGA (35x35) | Not Verified | 457000 |
|
EP20K160EFC400-2X
IC FPGA 400BGA
|
APEX-20KE® | Tray | Obsolete | 1.71V ~ 1.89V | Surface Mount | 0°C ~ 85°C (TJ) | 400-BGA | 400-BGA | Not Verified | 6400 |
