| Image | Mfr Part # | Series | Package | Product Status | Function | Delay to 1st Tap | Available Total Delays | Number of Independent Delays | Voltage - Supply | Mounting Type | Package / Case |
|---|---|---|---|---|---|---|---|---|---|---|---|
|
DS1004Z-4
IC DELAY LINE 5TAP 21NS 8SOIC
|
- | Tube | Obsolete | Nonprogrammable | 5ns | 21ns | 1 | 4.75V ~ 5.25V | Surface Mount | 8-SOIC (0.154", 3.90mm Width) |
|
DS1010S-250
IC DELAY LINE 10TAP 250NS 16SOIC
|
- | Tube | Obsolete | Nonprogrammable | 25ns | 250ns | 1 | 4.75V ~ 5.25V | Surface Mount | 16-SOIC (0.295", 7.50mm Width) |
|

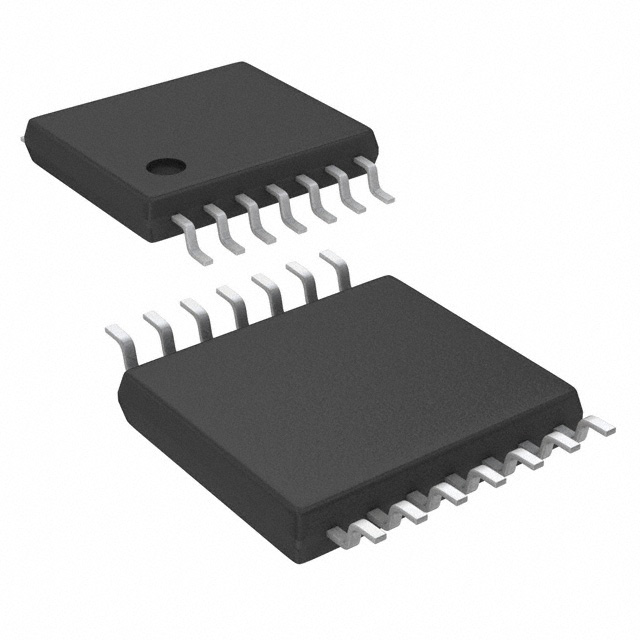

DS1110LE-200+
IC DELAY LN 10TAP 200NS 14TSSOP
|
- | Tube | Active | Nonprogrammable | 20ns | 200ns | 1 | 2.7V ~ 3.6V | Surface Mount | 14-TSSOP (0.173", 4.40mm Width) |
|
DS1100Z-100
IC DELAY LINE 5TAP 100NS 8SOIC
|
- | Tube | Obsolete | Nonprogrammable | 20ns | 100ns | 1 | 4.75V ~ 5.25V | Surface Mount | 8-SOIC (0.154", 3.90mm Width) |
|

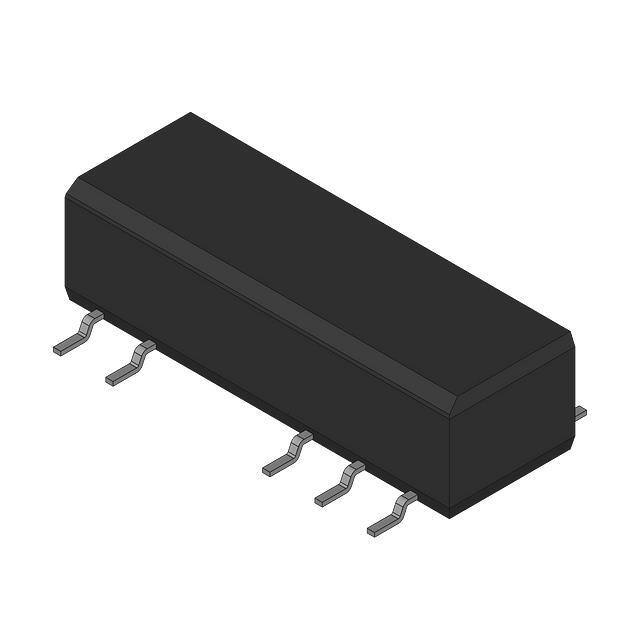

DS1000M-35
DS1000 5-TAP SILICON DELAY LINE
|
- | Bulk | Active | Nonprogrammable | 7ns | 35ns | 1 | 4.75V ~ 5.25V | Through Hole | 8-DIP (0.300", 7.62mm) |
|
DS1100U-20
IC DELAY LINE 5TAP 20NS 8UMAX
|
- | Tube | Discontinued at | Nonprogrammable | 4ns | 20ns | 1 | 4.75V ~ 5.25V | Surface Mount | 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) |
|
MXD1013PA030
3-IN-1 SILICON DELAY LINE
|
- | Bulk | Active | Multiple | 30ns | 30ns | 3 | 4.75V ~ 5.25V | Through Hole | 8-DIP (0.300", 7.62mm) |
|
DS1007S-1
IC DELAY LINE PROG 16SOIC
|
- | Tube | Obsolete | Multiple, NonProgrammable | 3ns | 3ns ~ 10ns, 9ns ~ 40ns | 7 | 4.75V ~ 5.25V | Surface Mount | 16-SOIC (0.295", 7.50mm Width) |
|
DS1000-300
DS1000 5-TAP SILICON DELAY LINE
|
- | Bulk | Active | Nonprogrammable | - | - | 1 | 4.75V ~ 5.25V | Through Hole | 14-DIP (0.300", 7.62mm) |
|
DS1135U-20
IC DELAY LINE 20NS 8UMAX
|
- | Tube | Obsolete | Multiple, NonProgrammable | 20ns | 20ns | 3 | 4.75V ~ 5.25V | Surface Mount | 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) |
|
DS1045S-3
IC DELAY LINE 16TAP 54NS 16SOIC
|
- | Tube | Obsolete | Multiple, Programmable | 9ns | 54ns | 2 | 4.75V ~ 5.25V | Surface Mount | 16-SOIC (0.295", 7.50mm Width) |
|
DS1000-250
DS1000 5-TAP SILICON DELAY LINE
|
- | Bulk | Active | Nonprogrammable | 50ns | 250ns | 1 | 4.75V ~ 5.25V | Through Hole | 14-DIP (0.300", 7.62mm) |
