| Image | Mfr Part # | Series | Package | Product Status | Function | Delay to 1st Tap | Available Total Delays | Number of Independent Delays | Voltage - Supply | Mounting Type | Package / Case |
|---|---|---|---|---|---|---|---|---|---|---|---|
|
DS1013M-50+
IC DELAY LINE 50NS 8DIP
|
- | Tube | Obsolete | Multiple, NonProgrammable | 50ns | 50ns | 3 | 4.75V ~ 5.25V | Through Hole | 8-DIP (0.300", 7.62mm) |
|
DS1100U-30+
IC DELAY LINE 5TAP 30NS 8UMAX
|
- | Tube | Active | Nonprogrammable | 6ns | 30ns | 1 | 4.75V ~ 5.25V | Surface Mount | 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) |
|
DS1135LU-25+
IC DELAY LINE 25NS 8UMAX
|
- | Tube | Obsolete | Multiple, NonProgrammable | 25ns | 25ns | 3 | 2.7V ~ 3.6V | Surface Mount | 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) |
|
DS1100LZ-150+
IC DELAY LINE 5TAP 150NS 8SOIC
|
- | Tube | Active | Nonprogrammable | 30ns | 150ns | 1 | 3V ~ 3.6V | Surface Mount | 8-SOIC (0.154", 3.90mm Width) |
|

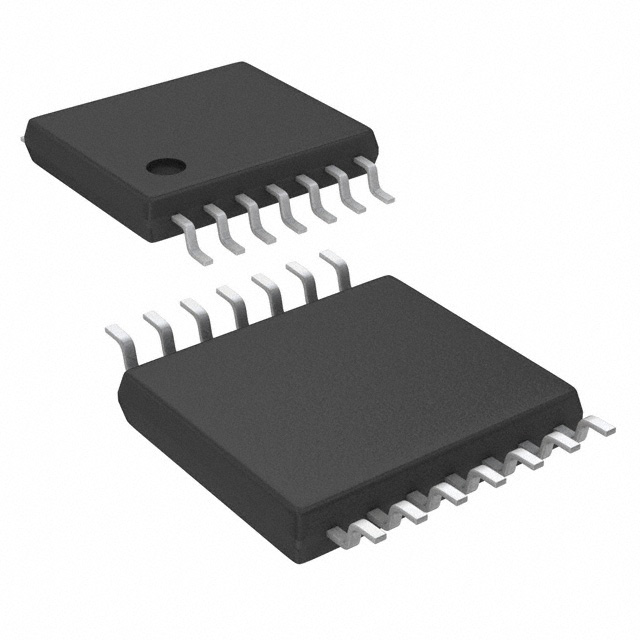

DS1110E-60+
IC DELAY LINE 10TAP 60NS 14TSSOP
|
- | Tube | Obsolete | Nonprogrammable | 6ns | 60ns | 1 | 4.75V ~ 5.25V | Surface Mount | 14-TSSOP (0.173", 4.40mm Width) |
|
DS1007S-7
DS1007 7-IN-1 SILICON DELAY LINE
|
- | Bulk | Active | Multiple | 7ns | 3 ~ 10ns, 9 ~ 40ns | 7 | 5V | Surface Mount | 16-SOIC (0.295", 7.50mm Width) |
|
DS1135LU-20+T&R
IC DELAY LINE 20NS 8UMAX
|
- | Tape & Reel (TR) | Active | Multiple, NonProgrammable | 20ns | 20ns | 3 | 2.7V ~ 3.6V | Surface Mount | 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) |
|
DS1100U-100
IC DELAY LINE 5TAP 100NS 8UMAX
|
- | Tube | Discontinued at | Nonprogrammable | 20ns | 100ns | 1 | 4.75V ~ 5.25V | Surface Mount | 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) |
|
DS1100M-40+
IC DELAY LINE 5TAP 40NS 8DIP
|
- | Tube | Obsolete | Nonprogrammable | 8ns | 40ns | 1 | 4.75V ~ 5.25V | Through Hole | 8-DIP (0.300", 7.62mm) |
|
DS1013-70
DELAY LINE 3TAP 70NS MAX 14-DIP
|
* | Tube | Obsolete | Multiple | 70ns | 70, 70, 70ns | 3 | 5V | Through Hole | 14-DIP (0.300", 7.62mm) |
|
DS1013-10
IC DELAY LINE 10NS 14DIP
|
- | Tube | Obsolete | Multiple, NonProgrammable | 10ns | 10ns | 3 | 4.75V ~ 5.25V | Through Hole | 14-DIP (0.300", 7.62mm) |
|
DS1100M-50
IC DELAY LINE 5TAP 50NS 8DIP
|
- | Tube | Obsolete | Nonprogrammable | 10ns | 50ns | 1 | 4.75V ~ 5.25V | Through Hole | 8-DIP (0.300", 7.62mm) |
