| Image | Mfr Part # | Series | Package | Product Status | Function | Delay to 1st Tap | Available Total Delays | Number of Independent Delays | Voltage - Supply | Mounting Type | Package / Case |
|---|---|---|---|---|---|---|---|---|---|---|---|
|

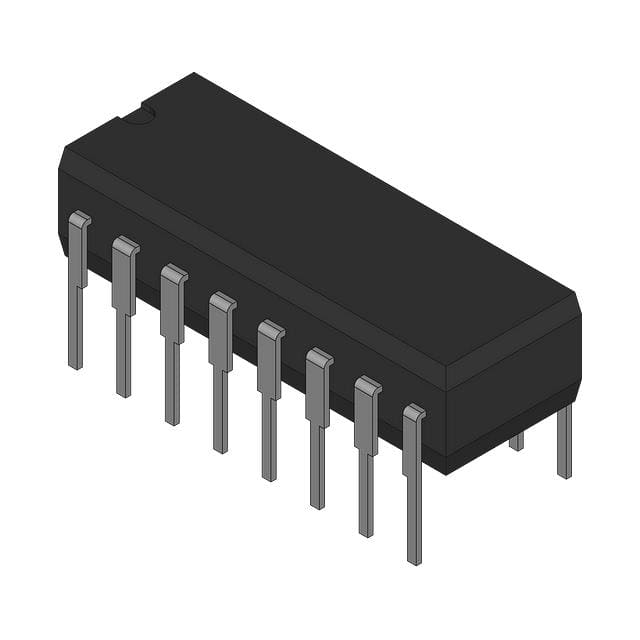

DS1013-30+
IC DELAY LINE 30NS 14DIP
|
- | Tube | Obsolete | Multiple, NonProgrammable | 30ns | 30ns | 3 | 4.75V ~ 5.25V | Through Hole | 14-DIP (0.300", 7.62mm) |
|
DS1110LE-100+T&R
IC DELAY LN 10TAP 100NS 14TSSOP
|
- | Tape & Reel (TR) | Active | Nonprogrammable | 10ns | 100ns | 1 | 2.7V ~ 3.6V | Surface Mount | 14-TSSOP (0.173", 4.40mm Width) |
|
DS1100Z-500/T&R
IC DELAY LINE 5TAP 500NS 8-SOIC
|
- | Tape & Reel (TR) | Obsolete | Nonprogrammable | 100ns | 500ns | 1 | 4.75V ~ 5.25V | Surface Mount | 8-SOIC (0.154", 3.90mm Width) |
|
DS1010S-50+
IC DELAY LINE 10TAP 50NS 16SOIC
|
- | Tube | Obsolete | Nonprogrammable | 5ns | 50ns | 1 | 4.75V ~ 5.25V | Surface Mount | 16-SOIC (0.295", 7.50mm Width) |
|
DS1013-40+
IC DELAY LINE 40NS 14DIP
|
- | Tube | Obsolete | Multiple, NonProgrammable | 40ns | 40ns | 3 | 4.75V ~ 5.25V | Through Hole | 14-DIP (0.300", 7.62mm) |
|
DS1100LZ-40+T
IC DELAY LINE 5TAP 40NS 8SOIC
|
- | Tape & Reel (TR) | Active | Nonprogrammable | 8ns | 40ns | 1 | 3V ~ 3.6V | Surface Mount | 8-SOIC (0.154", 3.90mm Width) |
|
DS1044R-10+T&R
IC DELAY LINE 10NS 14SOIC
|
- | Tape & Reel (TR) | Obsolete | Multiple, NonProgrammable | 10ns | 10ns | 4 | 4.75V ~ 5.25V | Surface Mount | 14-SOIC (0.154", 3.90mm Width) |
|
DS1023S-25+T
IC DEL LN 256TAP 63.75NS 16SOIC
|
- | Tape & Reel (TR) | Active | 1-Shot, Programmable | 16.5ns | 63.75ns | 1 | 4.75V ~ 5.25V | Surface Mount | 16-SOIC (0.295", 7.50mm Width) |
|
DS1135LU-20+T&R
IC DELAY LINE 20NS 8UMAX
|
- | Tape & Reel (TR) | Active | Multiple, NonProgrammable | 20ns | 20ns | 3 | 2.7V ~ 3.6V | Surface Mount | 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) |
|
DS1100U-100
IC DELAY LINE 5TAP 100NS 8UMAX
|
- | Tube | Discontinued at | Nonprogrammable | 20ns | 100ns | 1 | 4.75V ~ 5.25V | Surface Mount | 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) |
|
DS1100LU-100+T&R
IC DELAY LINE 5TAP 100NS 8UMAX
|
- | Tape & Reel (TR) | Active | Nonprogrammable | 20ns | 100ns | 1 | 3V ~ 3.6V | Surface Mount | 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) |
|
DS1100Z-500+
IC DELAY LINE 5TAP 500NS 8SOIC
|
- | Tube | Active | Nonprogrammable | 100ns | 500ns | 1 | 4.75V ~ 5.25V | Surface Mount | 8-SOIC (0.154", 3.90mm Width) |
