| Image | Mfr Part # | Series | Package | Product Status | Function | Delay to 1st Tap | Available Total Delays | Number of Independent Delays | Voltage - Supply | Mounting Type | Package / Case |
|---|---|---|---|---|---|---|---|---|---|---|---|
|
DS1100Z-100+T&R
IC DELAY LINE 5TAP 100NS 8SOIC
|
- | Tape & Reel (TR) | Active | Nonprogrammable | 20ns | 100ns | 1 | 4.75V ~ 5.25V | Surface Mount | 8-SOIC (0.154", 3.90mm Width) |
|

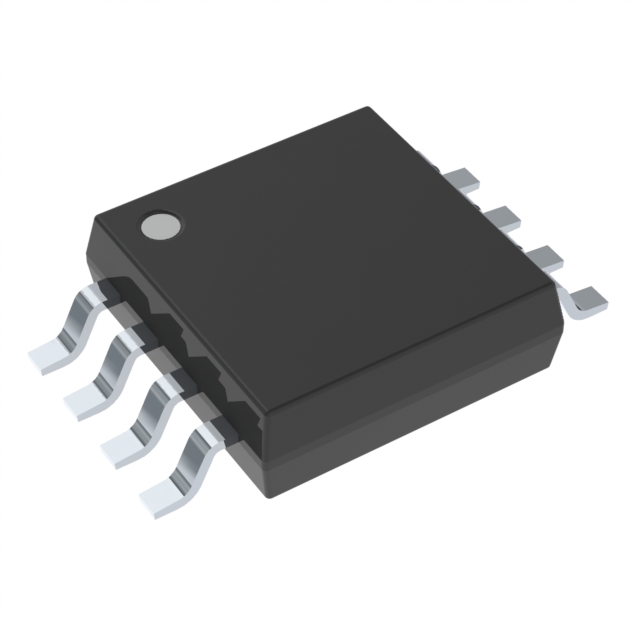

DS1135U-25+
IC DELAY LINE 25NS 8UMAX
|
- | Bulk | Active | Multiple, NonProgrammable | 25ns | 25ns | 3 | 4.75V ~ 5.25V | Surface Mount | 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) |
|
DS1013H-60
DS1013 3-IN-1 SILICON DELAY LINE
|
- | Bulk | Active | Multiple, NonProgrammable | 60ns | 60ns | 3 | 4.75V ~ 5.25V | - | - |
|
DS1000M-250
DS1000 5-TAP SILICON DELAY LINE
|
- | Bulk | Active | Nonprogrammable | 50ns | 250ns | 1 | 4.75V ~ 5.25V | Through Hole | 8-DIP (0.300", 7.62mm) |
|
DS1005M-75
IC DELAY LINE 5TAP 75NS 8DIP
|
- | Tube | Obsolete | Nonprogrammable | 15ns | 75ns | 1 | 4.75V ~ 5.25V | Through Hole | 8-DIP (0.300", 7.62mm) |
|
DS1040Z-150
PROGRAMMABLE PULSE GENERATOR
|
- | Bulk | Active | 1-Shot, Programmable | 30ns | 150ns | 1 | 4.75V ~ 5.25V | Surface Mount | 8-SOIC (0.154", 3.90mm Width) |
|
DS1135U-25/T&R
IC DELAY LINE 25NS 8UMAX
|
- | Tape & Reel (TR) | Obsolete | Multiple, NonProgrammable | 25ns | 25ns | 3 | 4.75V ~ 5.25V | Surface Mount | 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) |
|
DS1013S-40/T&R
IC DELAY LINE 40NS 16SOIC
|
- | Tape & Reel (TR) | Obsolete | Multiple, NonProgrammable | 40ns | 40ns | 3 | 4.75V ~ 5.25V | Surface Mount | 16-SOIC (0.295", 7.50mm Width) |
|
DS1100Z-50/T&R
IC DELAY LINE 5TAP 50NS 8SOIC
|
- | Tape & Reel (TR) | Obsolete | Nonprogrammable | 10ns | 50ns | 1 | 4.75V ~ 5.25V | Surface Mount | 8-SOIC (0.154", 3.90mm Width) |
|
DS1100LU-35
DELAY LINE 3V 5TAP 35NS 8-USOP
|
* | Tube | Discontinued at | Tapped | 7ns | 35ns | - | 3.3V | Surface Mount | 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) |
|
DS1100LZ-175
IC DELAY LINE 5TAP 175NS 8SOIC
|
- | Tube | Obsolete | Nonprogrammable | 35ns | 175ns | 1 | 3V ~ 3.6V | Surface Mount | 8-SOIC (0.154", 3.90mm Width) |
|
DS1135Z-6+
IC DELAY LINE 6NS 8SOIC
|
- | Tube | Active | Multiple, NonProgrammable | 6ns | 6ns | 3 | 4.75V ~ 5.25V | Surface Mount | 8-SOIC (0.154", 3.90mm Width) |
