| Image | Mfr Part # | Series | Package | Product Status | Function | Delay to 1st Tap | Available Total Delays | Number of Independent Delays | Voltage - Supply | Mounting Type | Package / Case |
|---|---|---|---|---|---|---|---|---|---|---|---|
|
DS1010-200
IC DELAY LINE 10TAP 200NS 14DIP
|
- | Tube | Obsolete | Nonprogrammable | 20ns | 200ns | 1 | 4.75V ~ 5.25V | Through Hole | 14-DIP (0.300", 7.62mm) |
|
DS1010S-150
DELAY LINE 10TAP 150NS 16-SOIC
|
* | Tube | Obsolete | Tapped | 15ns | 150ns | - | 5V | Surface Mount | 16-SOIC (0.295", 7.50mm Width) |
|
DS1013M-10+
IC DELAY LINE 10NS 8DIP
|
- | Tube | Obsolete | Multiple, NonProgrammable | 10ns | 10ns | 3 | 4.75V ~ 5.25V | Through Hole | 8-DIP (0.300", 7.62mm) |
|

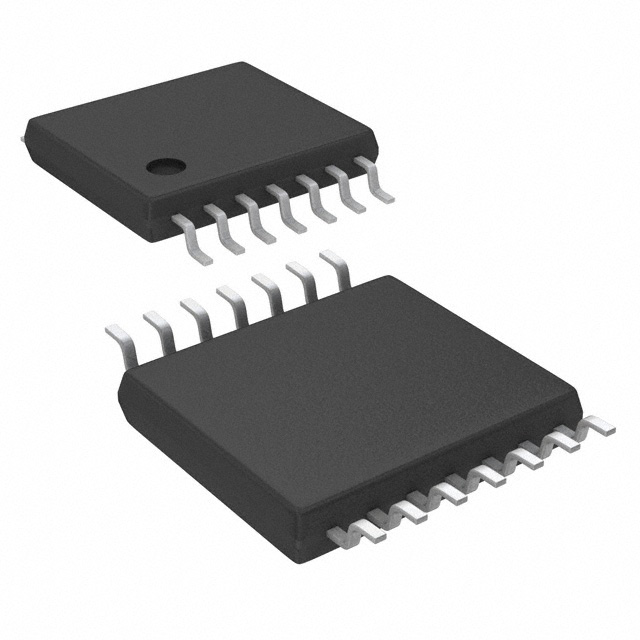

DS1110E-450+
IC DELAY LN 10TAP 450NS 14TSSOP
|
- | Tube | Obsolete | Nonprogrammable | 45ns | 450ns | 1 | 4.75V ~ 5.25V | Surface Mount | 14-TSSOP (0.173", 4.40mm Width) |
|
DS1013S-60+
IC DELAY LINE 60NS 16SOIC
|
- | Tube | Obsolete | Multiple, NonProgrammable | 60ns | 60ns | 3 | 4.75V ~ 5.25V | Surface Mount | 16-SOIC (0.295", 7.50mm Width) |
|
DS1005S-250
IC DELAY LINE 5TAP 250NS 16SOIC
|
- | Tube | Obsolete | Nonprogrammable | 50ns | 250ns | 1 | 4.75V ~ 5.25V | Surface Mount | 16-SOIC (0.295", 7.50mm Width) |
|
DS1110LE-50+
IC DELAY LINE 10TAP 14-TSSOP
|
- | Tube | Obsolete | Nonprogrammable | 5ns | 50ns | 1 | 2.7V ~ 3.6V | Surface Mount | 14-TSSOP (0.173", 4.40mm Width) |
|
DS1100LZ-500+
IC DELAY LINE 5TAP 500NS 8SOIC
|
- | Tube | Active | Nonprogrammable | 100ns | 500ns | 1 | 3V ~ 3.6V | Surface Mount | 8-SOIC (0.154", 3.90mm Width) |
|
DS1040Z-200+
IC DELAY LINE 5TAP 200NS 8SOIC
|
- | Tube | Obsolete | 1-Shot, Programmable | 40ns | 200ns | 1 | 4.75V ~ 5.25V | Surface Mount | 8-SOIC (0.154", 3.90mm Width) |
|
DS1100U-30
IC DELAY LINE 5TAP 30NS 8UMAX
|
- | Tube | Discontinued at | Nonprogrammable | 6ns | 30ns | 1 | 4.75V ~ 5.25V | Surface Mount | 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) |
|
DS1004Z-3
IC DELAY LINE 5TAP 17NS 8SOIC
|
- | Tube | Obsolete | Nonprogrammable | 5ns | 17ns | 1 | 4.75V ~ 5.25V | Surface Mount | 8-SOIC (0.154", 3.90mm Width) |
|
DS1033Z-20
IC DELAY LINE 20NS 8-SOIC
|
- | Tube | Obsolete | Multiple, NonProgrammable | 20ns | 20ns | 3 | 2.7V ~ 3.6V | Surface Mount | 8-SOIC (0.154", 3.90mm Width) |
