| Image | Mfr Part # | Series | Package | Product Status | Output Isolation | Internal Switch(s) | Voltage - Breakdown | Topology | Voltage - Supply (Vcc/Vdd) | Duty Cycle | Frequency - Switching |
|---|---|---|---|---|---|---|---|---|---|---|---|
|
UCC25701PW
IC OFFLINE SW MULT TOP 14TSSOP
|
- | Bulk | Active | Isolated | No | - | Boost, Flyback, Forward | 9V ~ 15V | 99% | 700kHz |
|

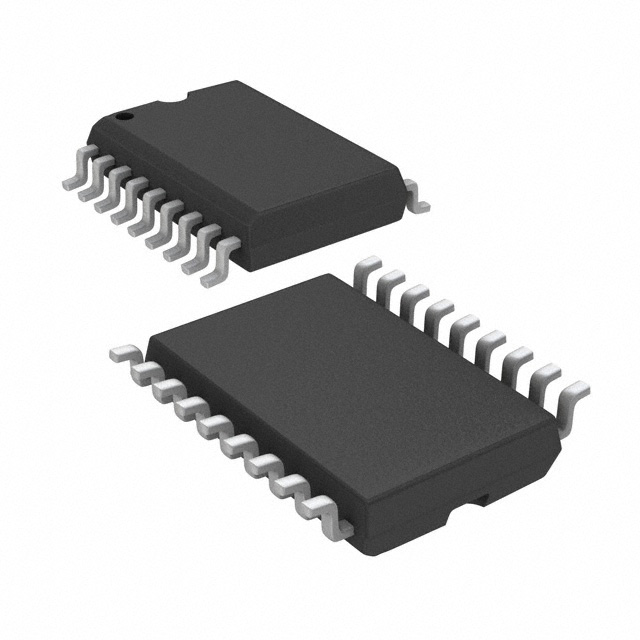

UC2851DW
IC OFFLINE SW MULT TOP 18SOIC
|
- | Bulk | Active | - | No | - | Boost, Buck, Flyback, Forward | 7.8V ~ 32V | 50% | Up to 500kHz |
|
UCC28221DR
IC OFFLINE SWITCH FLYBACK 16SOIC
|
- | Tape & Reel (TR) | Obsolete | Isolated | No | - | Flyback | 8.4V ~ 14.5V | 75% | 2MHz |
|
UCC2889N
IC OFFLINE SWITCH FLYBACK 8DIP
|
- | Bulk | Obsolete | Non-Isolated | No | - | Flyback | 6.3V ~ 9.3V | - | - |
|

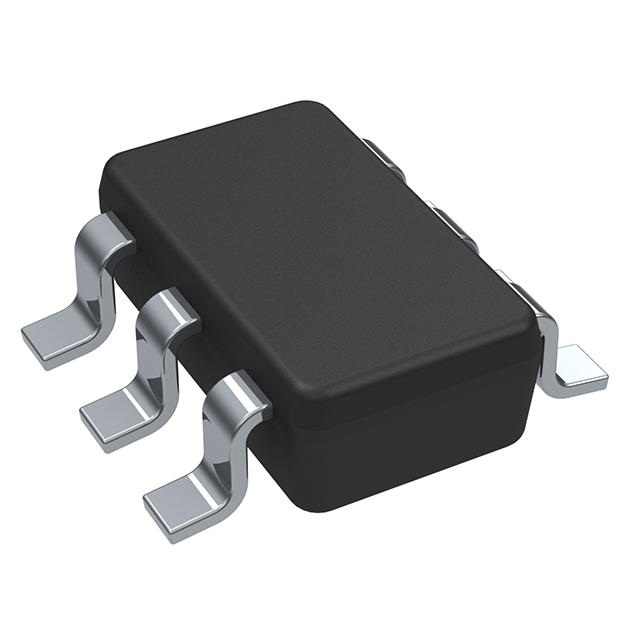

UCC287502DBVR
CURRENT-MODE FLYBACK CONTROLLER
|
- | - | - | - | - | - | - | - | - | - |
|
UCC28881QDRQ1
PROTOTYPE
|
- | Bulk | Active | - | - | - | - | - | - | - |
|

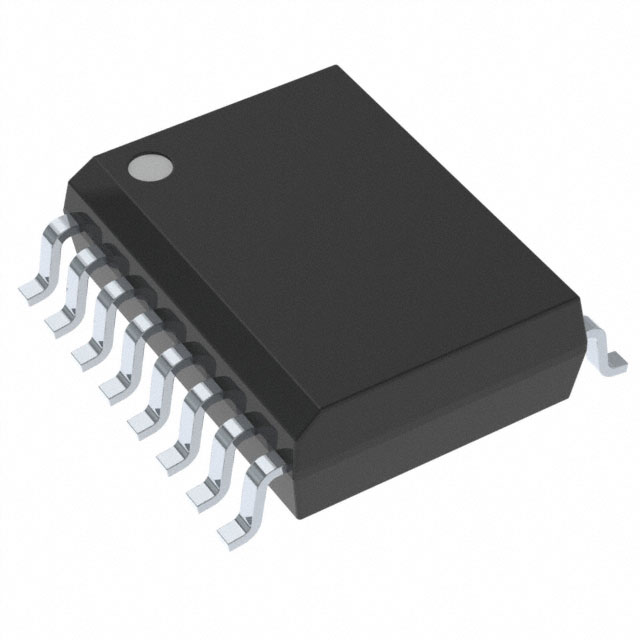

UC3865DWTR
IC OFFLINE SW MULT TOP 16SOIC
|
- | Tape & Reel (TR) | Obsolete | Non-Isolated | Yes | - | Full-Bridge, Half-Bridge, Push-Pull | 10.5V ~ 22V | - | 10kHz ~ 1MHz |
|

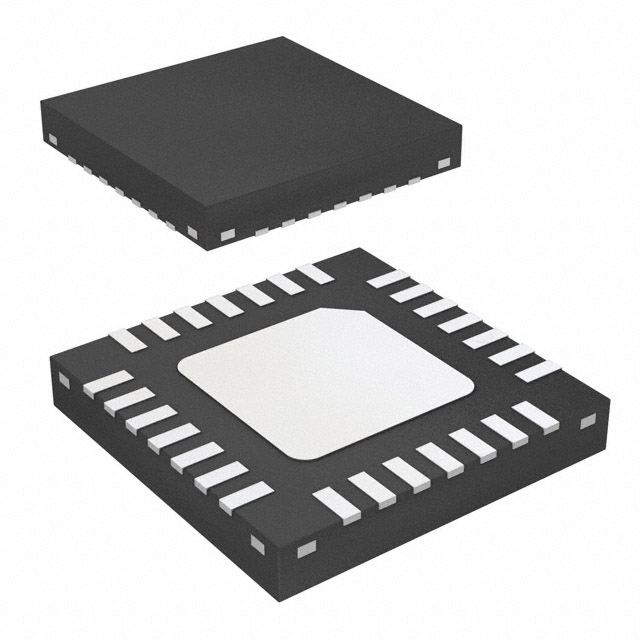

LM5045SQX/NOPB
IC OFFLINE SW FULL-BRDG 28WQFN
|
- | Tape & Reel (TR) | Active | Isolated | No | - | Full-Bridge | 14V ~ 100V | - | Up to 2MHz |
|
UCC2810NG4
IC OFFLINE SWITCH MULT TOP 16DIP
|
- | Tube | Discontinued at | Isolated | No | - | Boost, Flyback, Forward | 8.3V ~ 11V | 49% | 1MHz |
|
|
UCC25706P
IC OFFLINE SWITCH MULT TOP 8DIP
|
- | Bulk | Obsolete | Isolated | No | - | Boost, Flyback, Forward | 8V ~ 15V | 93% | 1MHz |
|
LM5045SQ/NOPB
IC OFFLINE SW FULL-BRDG 28WQFN
|
- | Tape & Reel (TR) | Active | Isolated | No | - | Full-Bridge | 14V ~ 100V | - | Up to 2MHz |
|
|
UC3823BN
IC OFFLINE SWITCH MULT TOP 16DIP
|
- | Tube | Obsolete | Non-Isolated | No | - | Boost, Buck, Flyback, Forward | 10V ~ 22V | 100% | 1MHz |
