| Image | Mfr Part # | Series | Package | Product Status | Mounting Type | Package / Case | Supplier Device Package | Operating Temperature | Logic Type | Supply Voltage | Number of Bits |
|---|---|---|---|---|---|---|---|---|---|---|---|
|
SN74ABT18245ADL
IC SCAN-TEST-DEV/TXRX 56-SSOP
|
74ABT | Tube | Active | Surface Mount | 56-BSSOP (0.295", 7.50mm Width) | 56-SSOP | -40°C ~ 85°C | Scan Test Device with Bus Transceivers | 4.5V ~ 5.5V | 18 |
|
SN74LVTH18646APM
IC SCAN-TEST-DEV/XCVR 64-LQFP
|
74LVTH | Tray | Active | Surface Mount | 64-LQFP | 64-LQFP (10x10) | -40°C ~ 85°C | ABT Scan Test Device With Transceivers and Registers | 2.7V ~ 3.6V | 18 |
|
|
SN74LVTH18646APMG4
IC SCAN-TEST-DEV/XCVR 64-LQFP
|
74LVTH | Bulk | Active | Surface Mount | 64-LQFP | 64-LQFP (10x10) | -40°C ~ 85°C | ABT Scan Test Device With Transceivers and Registers | 2.7V ~ 3.6V | 18 |
|
SN74LS31DR
IC HEX DELAY ELEMENT 16-SOIC
|
74LS | Tape & Reel (TR) | Obsolete | Surface Mount | 16-SOIC (0.154", 3.90mm Width) | 16-SOIC | 0°C ~ 70°C | Delay Element | 4.75V ~ 5.25V | 6 |
|
SN74LS283DRG4
IC BINARY FULL ADDER 16SOIC
|
74LS | Tape & Reel (TR) | Obsolete | Surface Mount | 16-SOIC (0.154", 3.90mm Width) | 16-SOIC | 0°C ~ 70°C | Binary Full Adder with Fast Carry | 4.75V ~ 5.25V | 4 |
|
SN74LVT8980ADWRG4
IC TEST-BUS CONTROLLER 24-SOIC
|
74LVT | Tape & Reel (TR) | Discontinued at | Surface Mount | 24-SOIC (0.295", 7.50mm Width) | 24-SOIC | -40°C ~ 85°C | Embedded Test-Bus Controllers | 2.7V ~ 3.6V | 8 |
|
SNJ54BCT8374AJT
SCAN TEST DEVICES WITH OCTAL D-T
|
54BCT | Tube | Active | Through Hole | 24-CDIP (0.300", 7.62mm) | 24-CDIP | -55°C ~ 125°C | Scan Test Device with D-Type Edge-Triggered Flip-Flops | 4.5V ~ 5.5V | 8 |
|
|
SN54S182J
LOOK-AHEAD CARRY GENERATORS 16-C
|
54S | Tube | Active | Through Hole | 16-CDIP (0.300", 7.62mm) | 16-CDIP | -55°C ~ 125°C | Look-ahead Carry Generator | 4.5V ~ 5.5V | 4 |
|

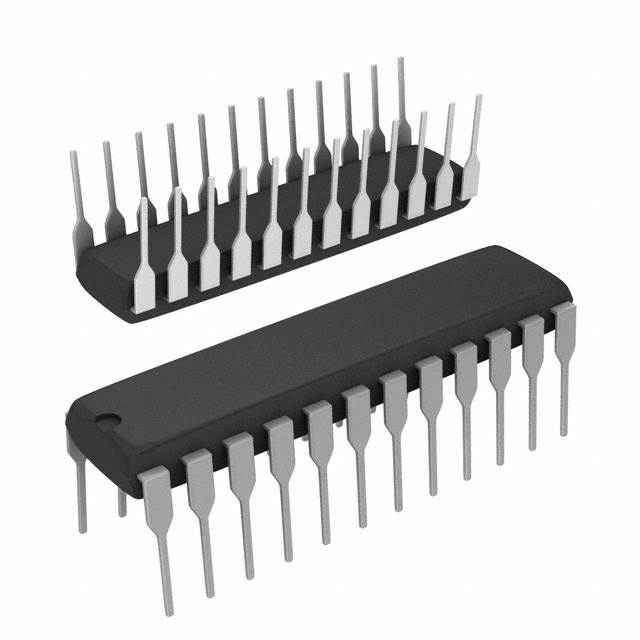

SN74BCT8244ANTG4
IC SCAN TEST DEVICE BUFF 24-DIP
|
74BCT | Tube | Obsolete | Through Hole | 24-DIP (0.300", 7.62mm) | 24-PDIP | 0°C ~ 70°C | Scan Test Device with Buffers | 4.5V ~ 5.5V | 8 |
|
SN74SSTU32866ZKER
IC 25BIT CONFIG REG BUFF 96-BGA
|
- | Tape & Reel (TR) | Obsolete | Surface Mount | 96-LFBGA | 96-PBGA MICROSTAR (13.6x5.6) | 0°C ~ 70°C | 1:1, 1:2 Configurable Registered Buffer with Parity | 1.7V ~ 1.9V | 25, 14 |
|

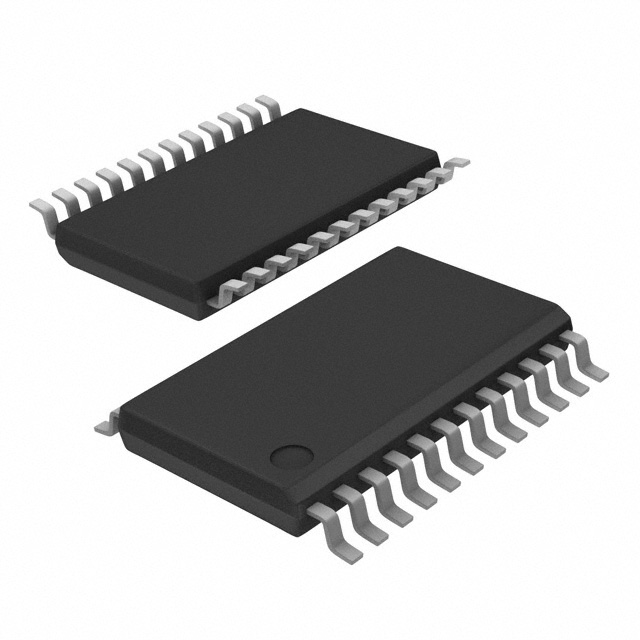

SN74ABT8996PWR
IC ADDRESSABLE SCAN PORT 24TSSOP
|
74ABT | Tape & Reel (TR) | Obsolete | Surface Mount | 24-TSSOP (0.173", 4.40mm Width) | 24-TSSOP | -40°C ~ 85°C | Addressable Scan Ports | 4.5V ~ 5.5V | 10 |
|
SN74BCT8240ADWRE4
IC SCAN TEST DEVICE BUFF 24-SOIC
|
74BCT | Tape & Reel (TR) | Obsolete | Surface Mount | 24-SOIC (0.295", 7.50mm Width) | 24-SOIC | 0°C ~ 70°C | Scan Test Device with Inverting Buffers | 4.5V ~ 5.5V | 8 |
