| Image | Mfr Part # | Series | Package | Product Status | Type | Circuit | Current - Output High, Low | Voltage Supply Source | Voltage - Supply | Operating Temperature | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|
|
SN74LS148D
IC PRIORITY ENCOD 1 X 8:3 16SOIC
|
74LS | Tube | Active | Priority Encoder | 1 x 8:3 | - | Single Supply | 4.75V ~ 5.25V | 0°C ~ 70°C | Surface Mount |
|

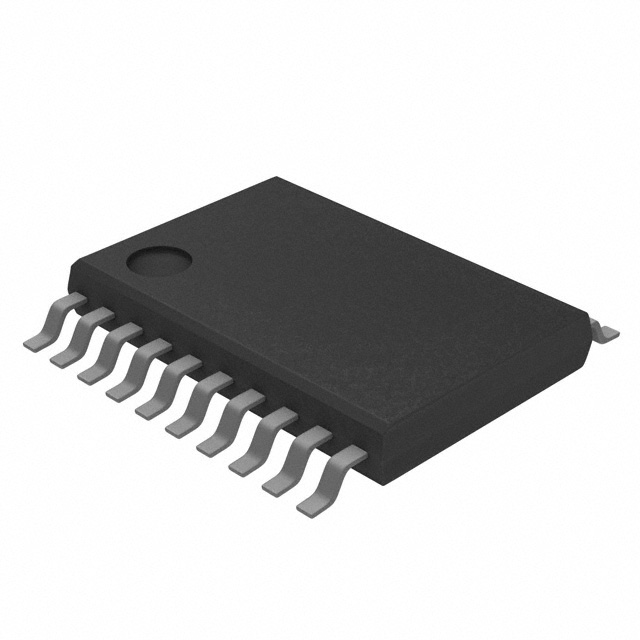

74CBTLV3245APWRG4
IC BUS SWITCH 8 X 1:1 20TSSOP
|
74CBTLV | Tape & Reel (TR) | Discontinued at | Bus Switch | 8 x 1:1 | - | Single Supply | 2.3V ~ 3.6V | -40°C ~ 85°C | Surface Mount |
|
SN74LS253NS
IC DATA SELECT/MUX 4-1 16SO
|
74LS | Bulk | Active | Multiplexer | 2 x 4:1 | - | Single Supply | 4.75V ~ 5.25V | 0°C ~ 70°C | Surface Mount |
|
SN74HCT138D
IC DECODER/DEMUX 1X3:8 16SOIC
|
74HCT | Tube | Discontinued at | Decoder/Demultiplexer | 1 x 3:8 | - | Single Supply | 4.5V ~ 5.5V | -40°C ~ 85°C | Surface Mount |
|
MM54HC138J/883
DECODER/DRIVER
|
MM54HC138 | Bulk | Active | Decoder/Demultiplexer | 1 x 3:8 | - | Single Supply | 2V ~ 6V | -55°C ~ 125°C | Through Hole |
|
SN74LS258BN3
MULTIPLEXER, LS SERIES TTL
|
74LS | Bulk | Active | Multiplexer | 4 x 2:1 | - | Single Supply | 4.75V ~ 5.25V | 0°C ~ 70°C | Through Hole |
|
CD74HCT670M96E4
IC 4X4 REGISTER FILE 3ST 16SOIC
|
74HCT | Tape & Reel (TR) | Obsolete | Register File | 1 x 1:1 | - | Single Supply | 4.5V ~ 5.5V | -55°C ~ 125°C | Surface Mount |
|
|
CD74HCT670MTG4
IC 4X4 REGISTER FILE 3ST 16SOIC
|
74HCT | Tape & Reel (TR) | Obsolete | Register File | 1 x 1:1 | - | Single Supply | 4.5V ~ 5.5V | -55°C ~ 125°C | Surface Mount |
|

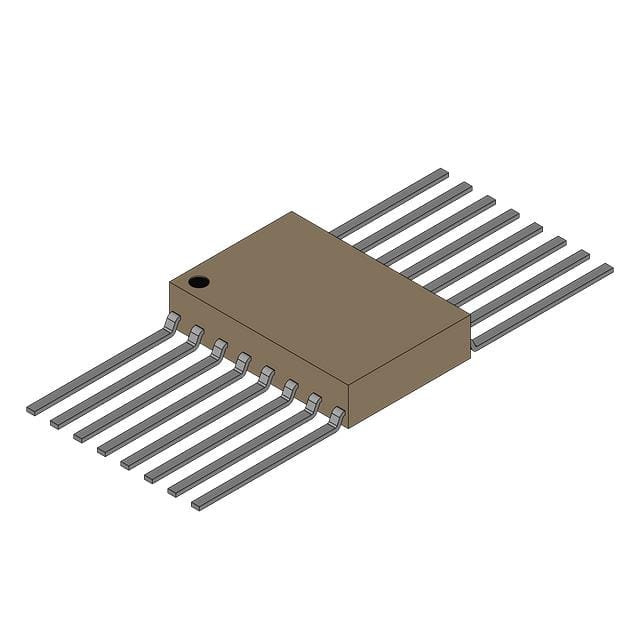

DM54S157W-MIL
MUX, 4-FUNC, 2 LINE INPUT, TTL
|
DM54S157 | Bulk | Active | Data Selector/Multiplexer | 4 x 2:1 | - | Single Supply | 4.5V ~ 5.5V | -55°C ~ 125°C | Surface Mount |
|
CD4016BF
CMOS QUAD BILATERAL SWITCH 14-CD
|
CD4016B | Tube | Active | Bilateral, FET Switches | 1 x 1:1 | - | Dual Supply | 3V ~ 18V | -55°C ~ 125°C | Through Hole |
|

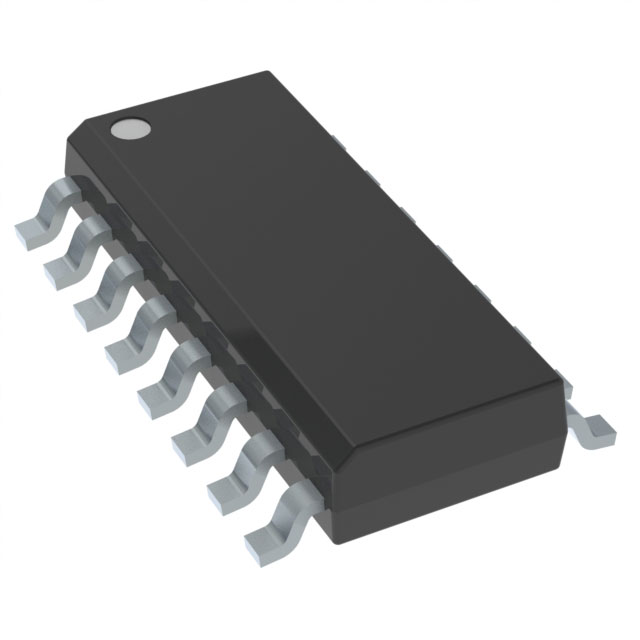

SN74LS151NSR
IC MULTIPLEXER 1 X 8:1 16SO
|
74LS | Tape & Reel (TR) | Active | Multiplexer | 1 x 8:1 | - | Single Supply | 4.75V ~ 5.25V | 0°C ~ 70°C | Surface Mount |
|

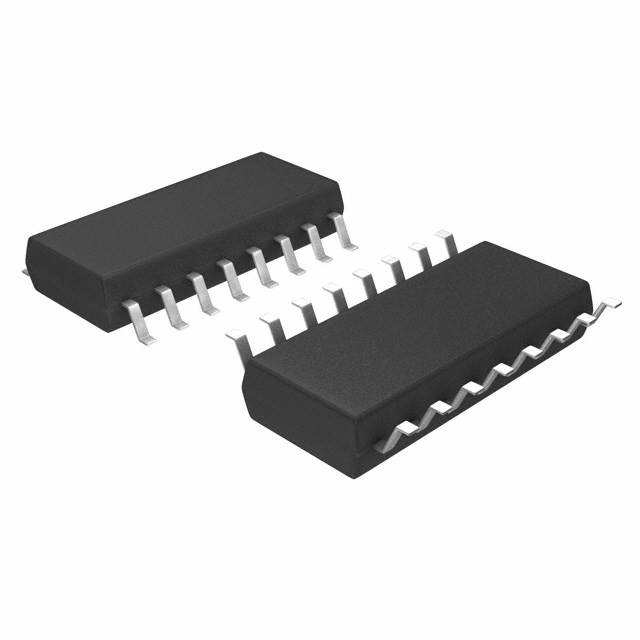

CD40147BNSRE4
IC PRIORITY ENCOD 10 X 1:4 16SO
|
4000B | Tape & Reel (TR) | Obsolete | Priority Encoder | 10 x 1:4 | - | Single Supply | 3V ~ 18V | -55°C ~ 125°C | Surface Mount |
