| Image | Mfr Part # | Series | Package | Product Status | Type | Circuit | Current - Output High, Low | Voltage Supply Source | Voltage - Supply | Operating Temperature | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|
|
74LS158DC
MUX, 4-FUNC, 2 LINE INPUT, TTL
|
74LS | Bulk | Active | Data Selector/Multiplexer | 4 x 2:1 | - | Single Supply | 4.75V ~ 5.25V | 0°C ~ 70°C | Through Hole |
|
54S153FM
MULTIPLEXER 4 LINE INPUT, TTL
|
- | Bulk | Active | Data Selector/Multiplexer | 2 x 4:1 | - | Single Supply | 4.5V ~ 5.5V | -55°C ~ 125°C | Surface Mount |
|
4539BDM
MULTIPLEXER, 2 FUNC, 4 LINE INPU
|
4539B | Bulk | Active | Data Selector/Multiplexer | 2 x 4:1 | - | Dual Supply | - | - | Through Hole |
|
54ALS253W/883
MULTIPLEXER 4 LINE INPUT, TTL
|
- | Bulk | Active | - | - | - | - | - | - | - |
|
JD54F138SEA
54F138 - 1-OF-8 DECODER-DEMULTIP
|
54F138 | Bulk | Active | Decoder/Demultiplexer | 1 x 3:8 | - | Single Supply | 4.5V ~ 5.5V | -55°C ~ 125°C | Through Hole |
|
MM74HCT147N
ENCODER, HCT SERIES, 9-BIT, CMOS
|
74HCT | Bulk | Active | Priority Encoder | 1 x 10:4 | - | Single Supply | 4.5V ~ 5.5V | -55°C ~ 125°C | Through Hole |
|
74LS153PC
MUX, 2-FUNC, 4 LINE INPUT, TTL
|
74LS | Bulk | Active | Data Selector/Multiplexer | 2 x 4:1 | - | Single Supply | 4.75V ~ 5.25V | 0°C ~ 70°C | Through Hole |
|
|
JD54F258BFA
QUAD 2 INPUT MULTIPLEXER WITH T
|
* | Bulk | Active | - | - | - | - | - | - | - |
|
|
4019BDM
OR GATE
|
- | Bulk | Active | Data Selector/Multiplexer | 4 x 2:1 | - | Dual Supply | - | - | Through Hole |
|
|
9302DM
DECODER/DRIVER
|
- | Bulk | Active | Decoder | 1 x 4:10 | - | Single Supply | 4.5V ~ 5.5V | -55°C ~ 125°C | Through Hole |
|
4016BDMQB
MULTIPLEXERS/SWITCHES
|
4016B | Bulk | Active | Bilateral, FET Switches | 1 x 1:1 | - | - | - | - | Through Hole |
|

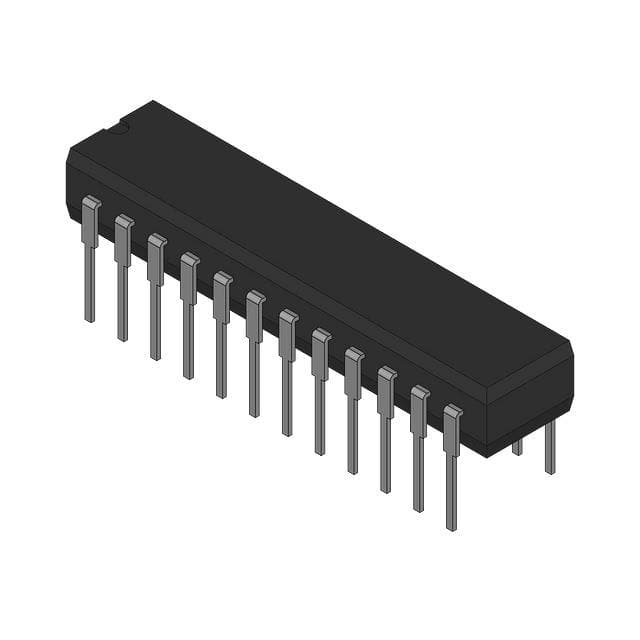

100165DC
ENCODER, 100K SERIES
|
100165 | Bulk | Active | Encoder | 1 x 8:4 | - | Dual Supply | -4.2V ~ -5.7V | 0°C ~ 70°C | Through Hole |
