| Image | Mfr Part # | Series | Package | Product Status | Function | Data Rate | Input Type | Output Type | Number of Inputs | Number of Outputs | Voltage - Supply |
|---|---|---|---|---|---|---|---|---|---|---|---|
|

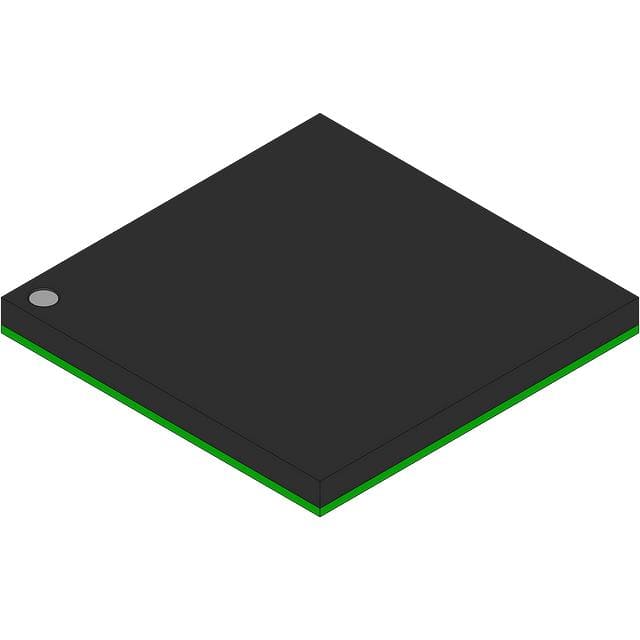

DS92LV8028TUF/NOPB
DS92LV8028 8 CHANNEL 10:1 SERIAL
|
- | Bulk | Active | Serializer | 5.28Gbps | LVTTL | LVDS | 80 | 8 | 3V ~ 3.6V |
|
DS90CR483VJDX
8 FUNC, 8 DRIVER, PQFP100
|
Automotive, AEC-Q100 | Bulk | Active | Serializer | 5.38Gbps | CMOS/TTL | LVDS | 48 | 8 | 3V ~ 3.6V |
|
DS90UR124IVS/NOPB
DS90UR124 5-43MHZ DC-BALANCED 24
|
- | Bulk | Active | Deserializer | 1.03Gbps | FPD-Link II, LVDS | LVCMOS | 1 | 24 | 3V ~ 3.6V |
|

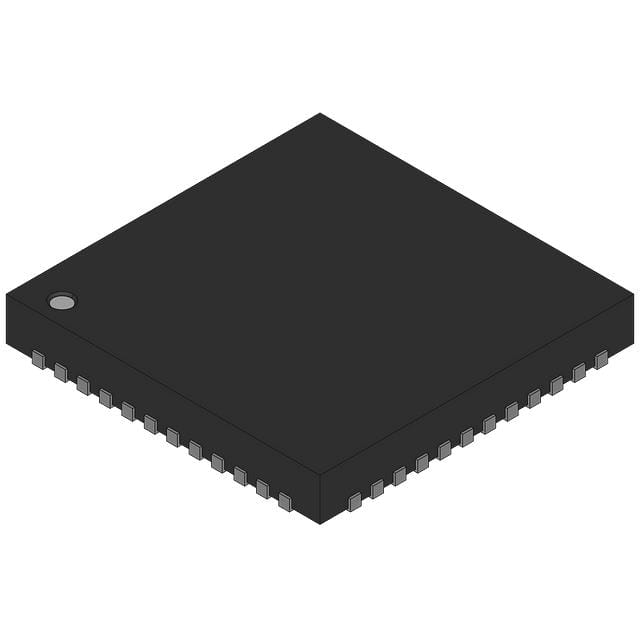

LMH0050SQX/NOPB
LINE DRIVER, 5 FUNC, 5 DRIVER
|
- | Bulk | Active | Serializer | 1.485Gbps | LVDS | CML | 5 | 1 | 2.375V ~ 2.625V, 3.135V ~ 3.465V |
|

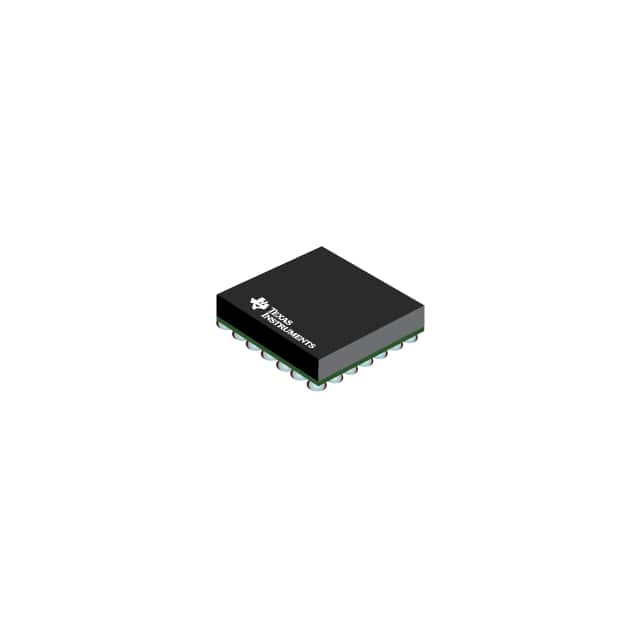

SCAN921025HSM-NS
LINE DRIVER, 1 FUNC, 1 DRIVER, C
|
- | Bulk | Active | Serializer | 800Mbps | LVCMOS, LVTTL | LVDS | 10 | 1 | 3V ~ 3.6V |
|
DS99R103TSQ
1 FUNC, 1 DRIVER, 1 RCVR, CMOS
|
- | Bulk | Active | Serializer | 960Mbps | LVCMOS | LVDS | 24 | 1 | 3V ~ 3.6V |
|
DS90UR908QSQE/NOPB
DS90UR908Q-Q1 5 - 65 MHZ 24-BIT
|
Automotive, AEC-Q100 | Bulk | Active | Deserializer | 1.82Gbps | FPD-Link II, LVDS | FPD-Link, LVDS | 1 | 5 | 1.71V ~ 1.89V, 3V ~ 3.6V |
|
LM2506SQ/NOPB
LINE TRANSCEIVER, 1 FUNC, 1 DRIV
|
- | Bulk | Active | Serializer/Deserializer | 320Mbps | LVCMOS | MPL | 22/3 | 3/22 | 1.74V ~ 3V |
|
LMH0071SQE/NOPB
LMH0071 SD, DVB-ASI SDI DESERIAL
|
- | Bulk | Active | Deserializer | 2.97Gbps | LVCMOS | LVDS | 2 | 5 | 2.5V, 3.3V |
|

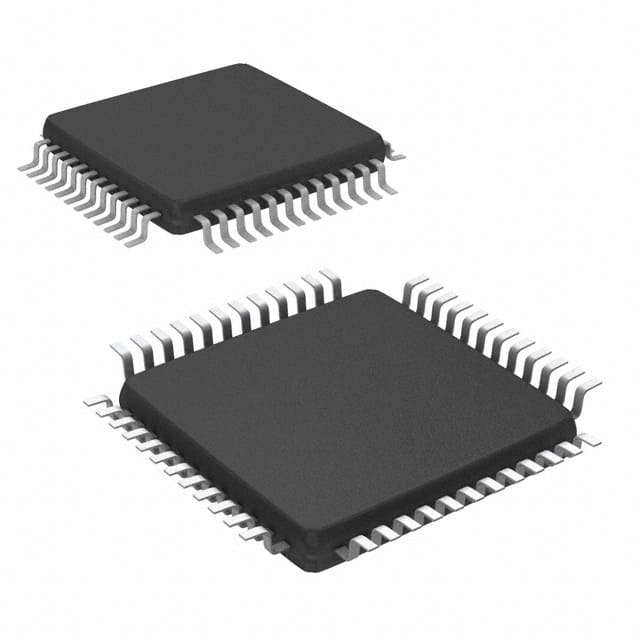

DS90C124IVSX/NOPB
DS90C124 5-35MHZ DC- BALANCED 24
|
Automotive, AEC-Q100 | Bulk | Active | Deserializer | 840Mbps | FPD-Link II, LVDS | LVCMOS | 1 | 24 | 3V ~ 3.6V |
|

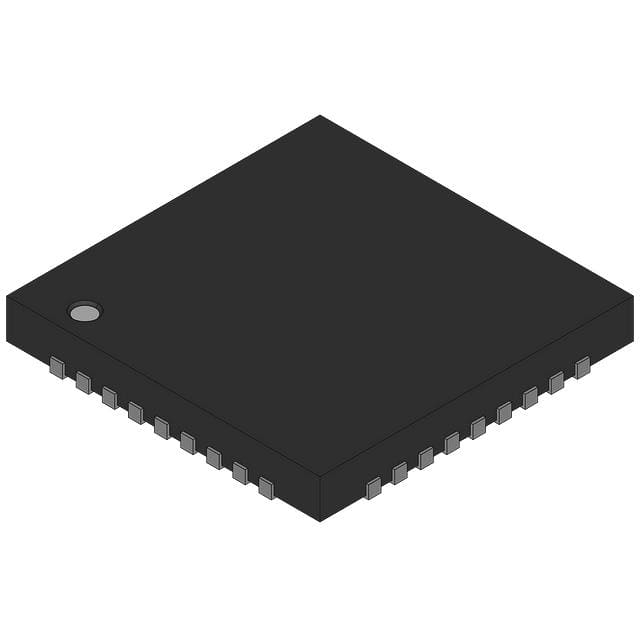

DS92LV0411SQE/NOPB
DS92LV0411 5 - 50 MHZ CHANNEL LI
|
- | Bulk | Active | Serializer | 1.4Gbps | LVDS | CML | 5 | 1 | 1.71V ~ 1.89V, 3V ~ 3.6V |
|
DS92LV1023EMQX/NOPB
LINE DRIVER, 1 FUNC, 1 DRIVER
|
Automotive, AEC-Q100 | Bulk | Obsolete | Serializer | 660Mbps | LVCMOS, LVTTL | LVDS | 10 | 1 | 3V ~ 3.6V |
