| Image | Mfr Part # | Series | Package | Product Status | Type | Number of Elements | Output Type | Voltage - Supply, Single/Dual (±) | Voltage - Input Offset (Max) | Current - Input Bias (Max) | Current - Output (Typ) |
|---|---|---|---|---|---|---|---|---|---|---|---|
|
LM293AD
IC COMPARATOR 2 GEN PUR 8SOIC
|
- | Tube | Obsolete | General Purpose | 2 | CMOS, DTL, ECL, MOS, Open-Collector, TTL | 2V ~ 36V, ±1V ~ 18V | 2mV @ 30V | 0.1µA @ 5V | 18mA @ 5V |
|
|
TS3022ID
IC COMPARATOR 2 GEN PUR 8SOIC
|
- | Tube | Obsolete | General Purpose | 2 | Push-Pull | 1.8V ~ 5V | 8mV @ 5V | 0.16µA @ 5V | - |
|
LM293AQT
IC COMPARATOR 2 GEN PUR 8UFSON
|
- | Tape & Reel (TR) | Obsolete | General Purpose | 2 | CMOS, DTL, ECL, MOS, Open-Collector, TTL | 2V ~ 36V, ±1V ~ 18V | - | - | - |
|

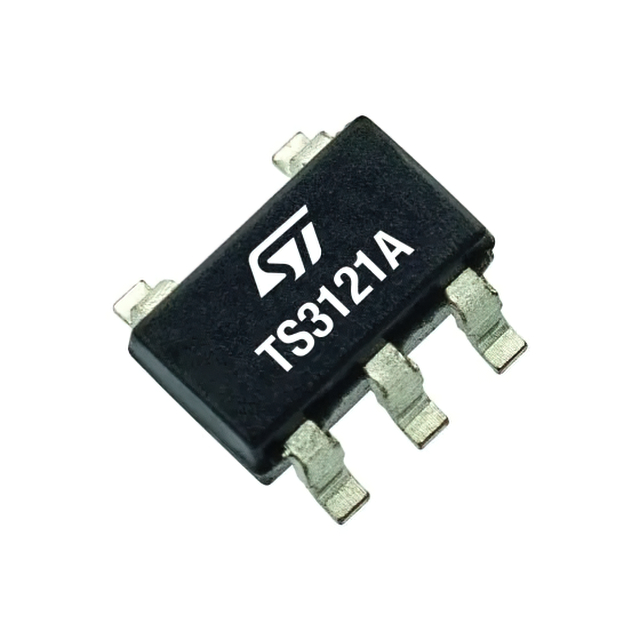

TS3121AIYLT
RAIL-TO-RAIL, OPEN-DRAIN COMPARA
|
* | Tape & Reel (TR) | Active | - | - | - | - | - | - | - |
|
LM339AD
IC COMPARATOR 4 GEN PUR 14SO
|
- | Tube | Active | General Purpose | 4 | CMOS, DTL, ECL, MOS, Open-Collector, TTL | 2V ~ 32V, ±1V ~ 16V | 2mV @ 30V | 0.1µA @ 5V | 16mA @ 5V |
|

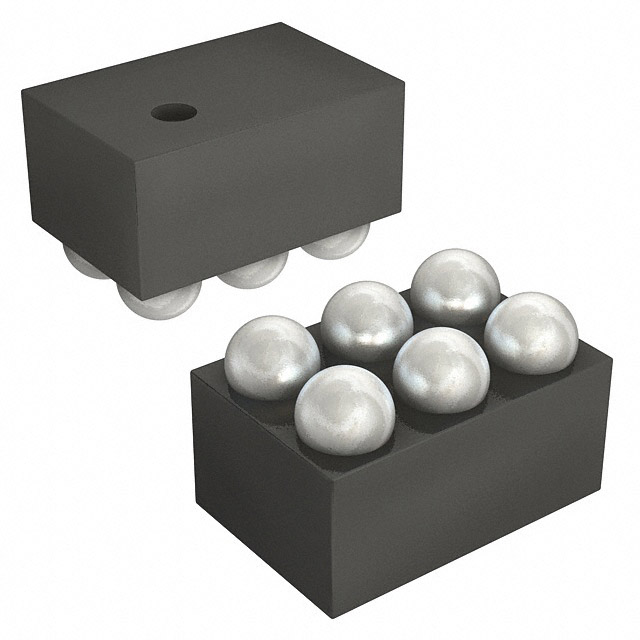

TS985IJT
IC COMPARATOR 1 GEN PUR 6CSP
|
- | Tape & Reel (TR) | Active | General Purpose | 1 | Push-Pull | 1.8V ~ 5V | 8mV @ 5V | 0.04µA | - |
|

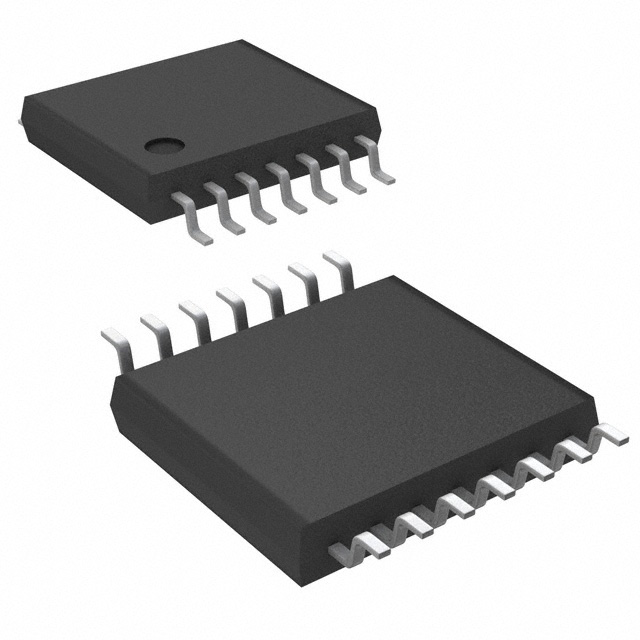

LM239APT
IC COMPARATOR 4 GEN PUR 14TSSOP
|
- | Tape & Reel (TR) | Active | General Purpose | 4 | CMOS, DTL, ECL, MOS, Open-Collector, TTL | 2V ~ 32V, ±1V ~ 16V | 2mV @ 30V | 0.1µA @ 5V | 16mA @ 5V |
|
TS3702CDT
IC COMPARATOR 2 GEN PUR 8SOIC
|
- | Tape & Reel (TR) | Active | General Purpose | 2 | CMOS, Push-Pull | 2.7V ~ 16V, ±1.35V ~ 8V | 5mV @ 10V | 1pA @ 5V | 20mA |
|
TS339CDT
IC COMPARATOR 4 GEN PUR 14SO
|
- | Tape & Reel (TR) | Active | General Purpose | 4 | CMOS, Open-Drain | 2.7V ~ 16V, ±1.35V ~ 8V | 5mV @ 10V | 1pA @ 5V | 20mA |
|
LM2903N
IC COMPARATOR 2 GEN PUR 8DIP
|
- | Tube | Obsolete | General Purpose | 2 | CMOS, DTL, ECL, MOS, Open-Collector, TTL | 2V ~ 36V, ±1V ~ 18V | 7mV @ 5V | 0.25µA @ 5V | 16mA @ 5V |
|
LM2903WYDT
IC COMPARATOR 2 DIFF 8SOIC
|
Automotive, AEC-Q100 | Tape & Reel (TR) | Active | Differential | 2 | CMOS, DTL, ECL, MOS, Open-Collector, TTL | 2V ~ 36V, ±1V ~ 18V | 7mV @ 30V | 0.25µA @ 5V | 20mA |
|
TS3702IPT
IC COMPARATOR 2 GEN PUR 8TSSOP
|
- | Tape & Reel (TR) | Active | General Purpose | 2 | CMOS, Push-Pull | 2.7V ~ 16V, ±1.35V ~ 8V | 5mV @ 10V | 1pA @ 5V | 20mA |
