| Image | Mfr Part # | Series | Package | Product Status | Logic Type | Circuit | Output Type | Voltage - Supply | Independent Circuits | Delay Time - Propagation | Current - Output High, Low |
|---|---|---|---|---|---|---|---|---|---|---|---|
|
SNJ54ALS563BJ
OCTAL D-TYPE TRANSPARENT LATCHES
|
54ALS | Tube | Active | D-Type Transparent Latch | 8:8 | Tri-State, Inverted | 4.5V ~ 5.5V | 1 | 8ns | 1mA, 24mA |
|
54LS279FMQB
R-S LATCH 1-BIT, TTL
|
54LS | Bulk | Active | S-R Latch | 1:1 | Standard | 4.5V ~ 5.5V | 4 | 27ns | 400µA, 4mA |
|
|
76018012A
QUADRUPLE /S-/R LATCHES 20-LCCC
|
54LS | Tube | Active | S-R Latch | 1:1 | Standard | 4.5V ~ 5.5V | 4 | 27ns | 400µA, 4mA |
|
|
M38510/32502BSA
OCTAL D-TYPE TRANSPARENT LATCHES
|
54LS | Tube | Active | D-Type Transparent Latch | 8:8 | Tri-State, Non-Inverted | - | 1 | 20ns | 1mA, 12mA |
|

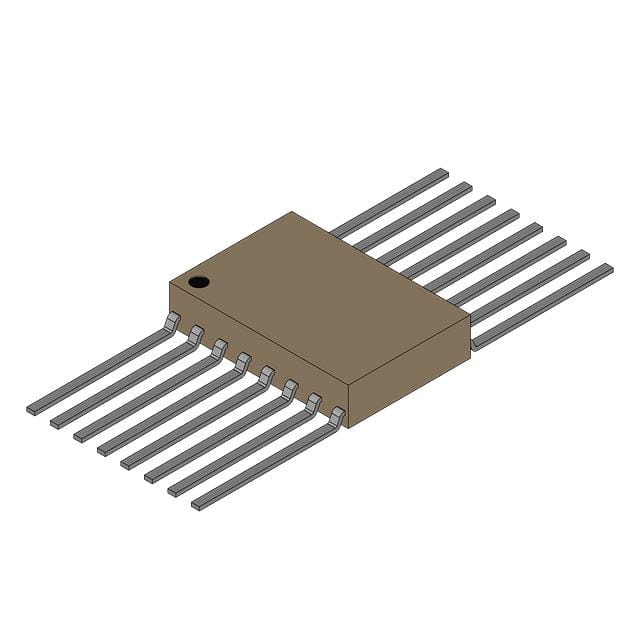

54LS375FMQB
D LATCH, LS SERIES TTL
|
54LS | Bulk | Active | D-Type Transparent Latch | 2:2 | Complementary | 4.5V ~ 5.5V | 2 | 30ns | 400µA, 4mA |
|
|
SN54ALS259J
8-BIT ADDRESSABLE LATCHES 16-CDI
|
54ALS | Tube | Active | D-Type, Addressable | 1:8 | Standard | 4.5V ~ 5.5V | 1 | 4ns | 400µA, 24mA |
|
|
CD54HC75F3A
HIGH SPEED CMOS LOGIC DUAL 2-BIT
|
54HC | Tube | Active | D-Type Transparent Latch | 2:2 | Complementary | 2V ~ 6V | 2 | 10ns | 5.2mA, 5.2mA |
|
|
M38510/32502SSA
OCTAL D-TYPE TRANSPARENT LATCHES
|
54LS | Tube | Active | D-Type Transparent Latch | 8:8 | Tri-State, Non-Inverted | - | 1 | 20ns | 1mA, 12mA |
|
|
7601201FA
4-BIT BISTABLE LATCHES 16-CFP -5
|
54LS | Tube | Active | D-Type Transparent Latch | 2:2 | Complementary | 4.5V ~ 5.5V | 2 | 15ns | 400µA, 16mA |
|
|
SNJ54LS375J
4-BIT BISTABLE LATCHES 16-CDIP -
|
54LS | Tube | Active | D-Type Transparent Latch | 2:2 | Complementary | 4.5V ~ 5.5V | 2 | 15ns | 400µA, 8mA |
|
|
M38510/65403B2A
OCTAL D-TYPE TRANSPARENT LATCHES
|
54HC | Tube | Active | D-Type Transparent Latch | 8:8 | Tri-State, Non-Inverted | 2V ~ 6V | 1 | 20ns | 7.8mA, 7.8mA |
|
|
SN54HC373VTDG2
IC OCT TRANSP D LATCH DIE
|
54HC | Tube | Active | D-Type Transparent Latch | - | Tri-State | 2V ~ 6V | 1 | 13ns | 7.8mA, 7.8mA |
