| Image | Mfr Part # | Series | Package | Product Status | Logic Type | Number of Inputs | Features | Voltage - Supply | Current - Output High, Low | Input Logic Level - Low | Input Logic Level - High |
|---|---|---|---|---|---|---|---|---|---|---|---|
|
SN74LS32DRG4
IC GATE OR 4CH 2-INP 14SOIC
|
74LS | Tape & Reel (TR) | Discontinued at | OR Gate | 2 | - | 4.75V ~ 5.25V | 400µA, 8mA | 0.8V | 2V |
|
SN74LS32NSRG4
IC GATE OR 4CH 2-INP 14SOP
|
74LS | Tape & Reel (TR) | Discontinued at | OR Gate | 2 | - | 4.75V ~ 5.25V | 400µA, 8mA | 0.8V | 2V |
|

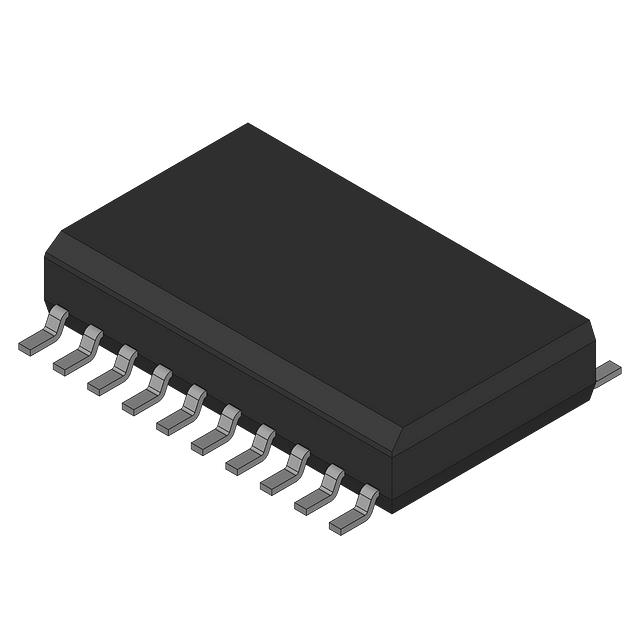

SN74HC804DW
NAND GATE, HC/UH SERIES, 6-FUNC
|
74HC | Bulk | Active | - | - | - | - | - | - | - |
|
SN74HC05D
IC INVERTER OD 6CH 1-INP 14SOIC
|
74HC | Tube | Discontinued at | Inverter | 1 | Open Drain | 2V ~ 6V | -, 5.2mA | 0.5V ~ 1.8V | 1.5V ~ 4.2V |
|
SN74LS27NSR
IC GATE NOR 3CH 3-INP 14SOP
|
74LS | Tape & Reel (TR) | Active | NOR Gate | 3 | - | 4.75V ~ 5.25V | 400µA, 8mA | 0.8V | 2V |
|
SN74LV08ADR
IC GATE AND 4CH 2-INP 14SOIC
|
74LV | Tape & Reel (TR) | Active | AND Gate | 2 | - | 2V ~ 5.5V | 12mA, 12mA | 0.5V | 1.5V |
|
SN74LV04ADR
IC INVERTER 6CH 1-INP 14SOIC
|
74LV | Tape & Reel (TR) | Active | Inverter | 1 | - | 2V ~ 5.5V | 12mA, 12mA | 0.5V | 1.5V |
|
|
SN74LS14DRG4
IC INV SCHMITT 6CH 1-IN 14SOIC
|
74LS | Tape & Reel (TR) | Discontinued at | Inverter | 1 | Schmitt Trigger | 4.75V ~ 5.25V | 400µA, 8mA | 0.5V | 1.9V |
|
8404101DA
MILITARY 4-CH, 2-INPUT, 2-V TO 6
|
54HC | Tube | Active | NOR Gate | 2 | - | 2V ~ 6V | 5.2mA, 5.2mA | 0.5V ~ 1.8V | 1.5V ~ 4.2V |
|
|
SN74LS00DG4
IC GATE NAND 4CH 2-INP 14SOIC
|
74LS | Tube | Discontinued at | NAND Gate | 2 | - | 4.75V ~ 5.25V | 400µA, 8mA | 0.8V | 2V |
|
|
SN74LS06DB
PROTOTYPE
|
74LS | Bulk | Discontinued at | Inverter | 6 | Open Collector | 4.5V ~ 5.5V | - | 0.8V | 2V |
|
SN74LV10APW
IC GATE NAND 3CH 3-INP 14TSSOP
|
74LV | Tube | Discontinued at | NAND Gate | 3 | - | 2V ~ 5.5V | 12mA, 12mA | 0.5V | 1.5V |
