| Image | Mfr Part # | Series | Package | Product Status | Logic Type | Number of Inputs | Features | Voltage - Supply | Current - Output High, Low | Input Logic Level - Low | Input Logic Level - High |
|---|---|---|---|---|---|---|---|---|---|---|---|
|

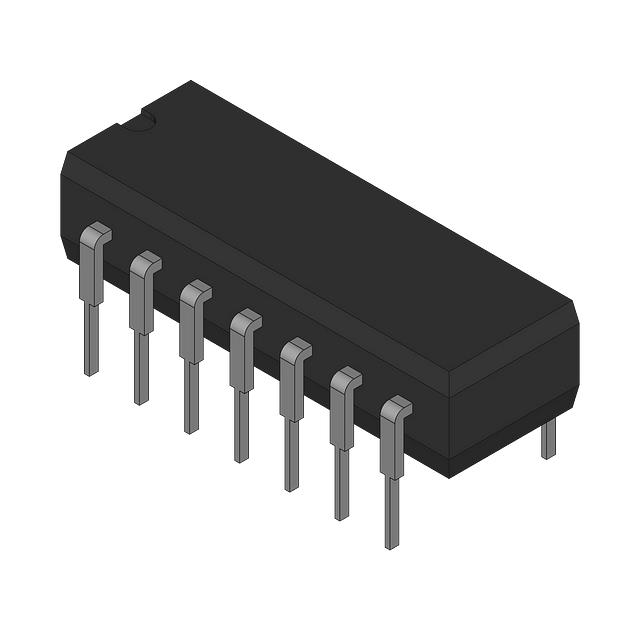

SN74AS27N-J
GP55-06006-99,99/06/14 (FCC TIM)
|
* | Bulk | Active | - | - | - | - | - | - | - |
|

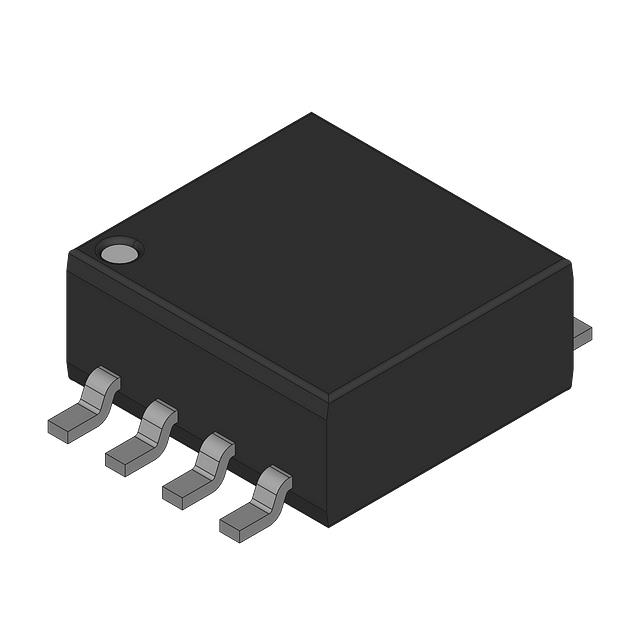

SN74AHC2G04HDCTR
INVERTER 3-ELEMENT CMOS 8PIN SSO
|
* | Bulk | Active | - | - | - | - | - | - | - |
|
SN74LS386AN
XOR GATE, LS SERIES TTL
|
* | Bulk | Active | - | - | - | - | - | - | - |
|
5962-9682501Q2A
MILITARY 4-CH, 2-INPUT, 2-V TO 5
|
54AHC | Tube | Active | OR Gate | 2 | - | 2V ~ 5.5V | 8mA, 8mA | 0.5V ~ 1.65V | 1.5V ~ 3.85V |
|
|
SN74AHCT132BQAR
IC GATE NAND 4CH 2-INP 14WQFN
|
74AHCT | Tape & Reel (TR) | Active | NAND Gate | 2 | Schmitt Trigger | 4.5V ~ 5.5V | 8mA, 8mA | 0.5V ~ 0.6V | 1.9V ~ 2.1V |
|
|
SN700033N
TRIPLE 3-INPUT AND GATE
|
* | Bulk | Active | - | - | - | - | - | - | - |
|
SN74LVC2GU04DBVR
IC INVERTER 2CH 2-INP SOT23-6
|
74LVC | Tape & Reel (TR) | Active | Inverter | 2 | - | 1.65V ~ 5.5V | 32mA, 32mA | 0.41V ~ 1.38V | 1.24V ~ 4.13V |
|
SN74LVC2G38DCUT
IC GATE NAND OD 2CH 2-INP 8VSSOP
|
74LVC | Tape & Reel (TR) | Active | NAND Gate | 2 | Open Drain | 1.65V ~ 5.5V | -, 32mA | 0.7V ~ 0.8V | 1.7V ~ 2V |
|
SN74S03D
NAND GATE, S SERIES, TTL
|
* | Bulk | Active | - | - | - | - | - | - | - |
|
SN74ALS1032AD
OR GATE, ALS SERIES
|
* | Bulk | Active | - | - | - | - | - | - | - |
|
|
5962-9761801QCA
MILITARY 4-CH, 2-INPUT, 2-V TO 3
|
54LVC | Tube | Active | OR Gate | 2 | - | 2V ~ 3.6V | 24mA, 24mA | 0.7V ~ 0.8V | 1.7V ~ 2V |
|
SN74AHCT32QDRG4Q1
IC GATE OR 4CH 2-INP 14SOIC
|
Automotive, AEC-Q100, 74AHCT | Tape & Reel (TR) | Active | OR Gate | 2 | - | 4.5V ~ 5.5V | 8mA, 8mA | 0.8V | 2V |
