| Image | Mfr Part # | Series | Package | Product Status | Logic Type | Number of Inputs | Features | Voltage - Supply | Current - Output High, Low | Input Logic Level - Low | Input Logic Level - High |
|---|---|---|---|---|---|---|---|---|---|---|---|
|
SN74LVC14ADRE4
IC INV SCHMITT 6CH 1-IN 14SOIC
|
74LVC | Tape & Reel (TR) | Discontinued at | Inverter | 1 | Schmitt Trigger | 1.65V ~ 3.6V | 24mA, 24mA | 0.15V ~ 0.8V | 1.3V ~ 2V |
|
M38510/00401BDA
IC GATE NOR 4CH 2-INP 14CFP
|
5402 | Tube | Active | NOR Gate | 2 | - | 4.5V ~ 5.5V | 400µA, 16mA | 0.8V | 2V |
|
SN74AHCT32D
IC GATE OR 4CH 2-INP 14SOIC
|
74AHCT | Tube | Active | OR Gate | 2 | - | 4.5V ~ 5.5V | 8mA, 8mA | 0.8V | 2V |
|
|
SN32171N
TRIPLE 3-INPUT NAND GATE
|
* | Bulk | Active | - | - | - | - | - | - | - |
|
74LVC1GU04DCKTE4
IC INVERTER 1CH 1-INP SC70-5
|
74LVC | Tape & Reel (TR) | Discontinued at | Inverter | 1 | - | 1.65V ~ 5.5V | 32mA, 32mA | 0.41V ~ 1.38V | 1.24V ~ 4.13V |
|
SNJ5403W
NAND GATE, TTL/H/L SERIES, TTL
|
* | Bulk | Active | - | - | - | - | - | - | - |
|
|
JM38510/00104BCA
MILITARY 4-CH, 2-INPUT, 4.5-V TO
|
5400 | Tube | Active | NAND Gate | 2 | - | 4.5V ~ 5.5V | 400µA, 16mA | 0.8V | 2V |
|
SN74AHCT32DBR
IC GATE OR 4CH 2-INP 14SSOP
|
74AHCT | Tape & Reel (TR) | Active | OR Gate | 2 | - | 4.5V ~ 5.5V | 8mA, 8mA | 0.8V | 2V |
|

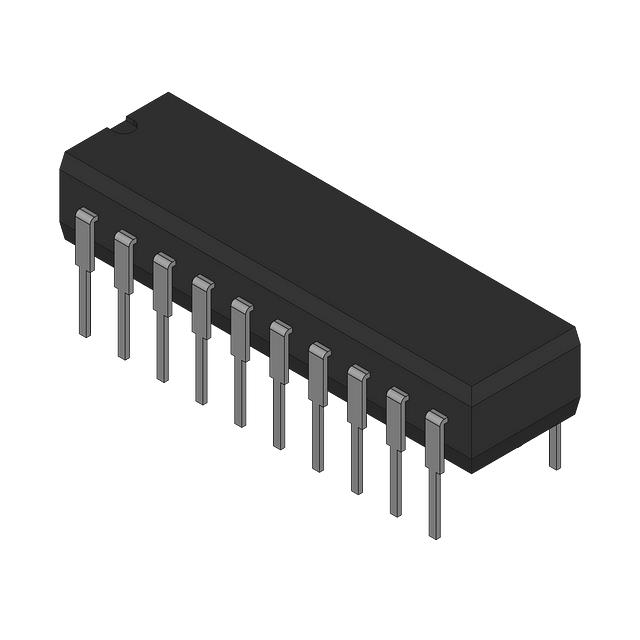

SN74AS1832N
OR GATE, AS SERIES, 6-FUNC, TTL
|
* | Bulk | Active | - | - | - | - | - | - | - |
|
74LVC2G132DCURE4
IC GATE NAND 2CH 2-INP 8VSSOP
|
74LVC | Tape & Reel (TR) | Discontinued at | NAND Gate | 2 | Schmitt Trigger | 1.65V ~ 5.5V | 32mA, 32mA | 0.39V ~ 1.87V | 1.16V ~ 3.33V |
|
|
SN32154N
QUAD 2-INPUT OR GATE
|
* | Bulk | Active | - | - | - | - | - | - | - |
|
SN74ALVC08IDRQ1
IC GATE AND 4CH 2-INP 14SOIC
|
Automotive, AEC-Q100, 74ALVC | Tape & Reel (TR) | Obsolete | AND Gate | 2 | - | 1.65V ~ 3.6V | 24mA, 24mA | 0.7V ~ 0.8V | 1.7V ~ 2V |
