| Image | Mfr Part # | Series | Package | Product Status | Logic Type | Number of Inputs | Features | Voltage - Supply | Current - Output High, Low | Input Logic Level - Low | Input Logic Level - High |
|---|---|---|---|---|---|---|---|---|---|---|---|
|
74LS136PC
XOR GATE, LS SERIES TTL
|
74LS | Bulk | Active | XOR (Exclusive OR) | 2 | Open Collector | 4.75V ~ 5.25V | - | - | - |
|
SN74AHC132PWR
IC GATE NAND 4CH 2-INP 14TSSOP
|
74AHC | Tape & Reel (TR) | Active | NAND Gate | 2 | Schmitt Trigger | 2V ~ 5.5V | 8mA, 8mA | 0.9V ~ 1.65V | 2.2V ~ 3.85V |
|
JM38510/07008BDA
NAND GATE, 8-INPUT
|
* | Bulk | Active | - | - | - | - | - | - | - |
|

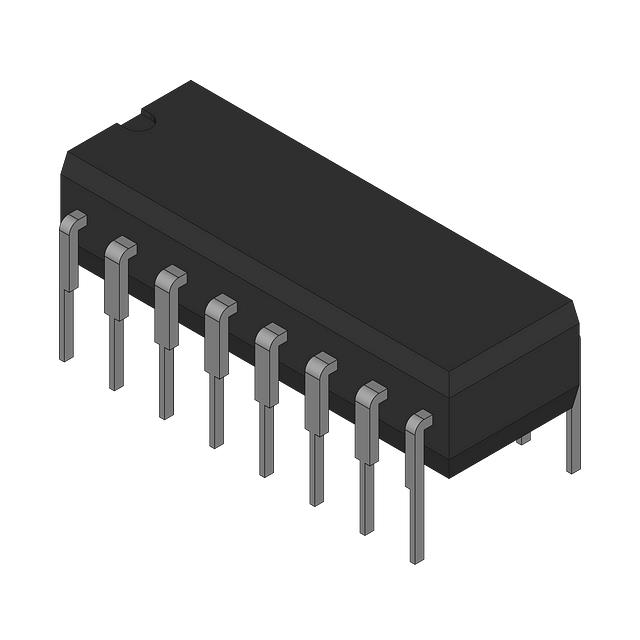

74AC11008NSR
AND GATE 4-ELEMENT 2-IN
|
* | Bulk | Active | - | - | - | - | - | - | - |
|
|
SNJ54AC10J
MILITARY 3-CH, 3-INPUT, 2-V TO 6
|
54AC | Tube | Active | NAND Gate | 3 | - | 2V ~ 6V | 24mA, 24mA | 0.9V ~ 1.65V | 2.1V ~ 3.85V |
|
SN74AHC1G86DCKRG4
IC GATE XOR 1CH 2-INP SC70-5
|
74AHC | Tape & Reel (TR) | Discontinued at | XOR (Exclusive OR) | 2 | Schmitt Trigger Input | 2V ~ 5.5V | 8mA, 8mA | 0.5V ~ 1.65V | 1.5V ~ 3.85V |
|
SN74F21DR
IC GATE AND 2CH 4-INP 14SOIC
|
74F | Tape & Reel (TR) | Active | AND Gate | 4 | - | 4.5V ~ 5.5V | 1mA, 20mA | 0.8V | 2V |
|
SN74LS26DE4
IC GATE NAND OPEN 4CH 2IN 14SOIC
|
74LS | Tube | Discontinued at | NAND Gate | 2 | Open Collector | 4.75V ~ 5.25V | -, 8mA | 0.8V | 2V |
|
|
SN74F86DR
IC GATE XOR 4CH 2-INP 14SOIC
|
74F | Tape & Reel (TR) | Active | XOR (Exclusive OR) | 2 | - | 4.5V ~ 5.5V | 1mA, 20mA | 0.8V | 2V |
|
SN74AHC1G32DCKRG4
IC GATE OR 1CH 2-INP SC70-5
|
74AHC | Tape & Reel (TR) | Discontinued at | OR Gate | 2 | - | 2V ~ 5.5V | 8mA, 8mA | 0.5V ~ 1.65V | 1.5V ~ 3.85V |
|
SN74LS32DG4
IC GATE OR 4CH 2-INP 14SOIC
|
74LS | Tube | Discontinued at | OR Gate | 2 | - | 4.75V ~ 5.25V | 400µA, 8mA | 0.8V | 2V |
|
SN74AHC00NSR
IC GATE NAND 4CH 2-INP 14SOP
|
74AHC | Tape & Reel (TR) | Active | NAND Gate | 2 | - | 2V ~ 5.5V | 8mA, 8mA | 0.5V ~ 1.65V | 1.5V ~ 3.85V |
