| Image | Mfr Part # | Series | Package | Product Status | Output Configuration | Applications | Interface | Load Type | Technology | Rds On (Typ) | Current - Output / Channel |
|---|---|---|---|---|---|---|---|---|---|---|---|
|
IRSM515-015PAALMA1
IC HALF BRIDGE DRIVER 1.2A SOP23
|
IRSM505-015 | Tube | Obsolete | Half Bridge (3) | AC Motors | Logic, PWM | Inductive | MOSFET (Metal Oxide) | 5Ohm LS, 5Ohm HS | 1.2A |
|

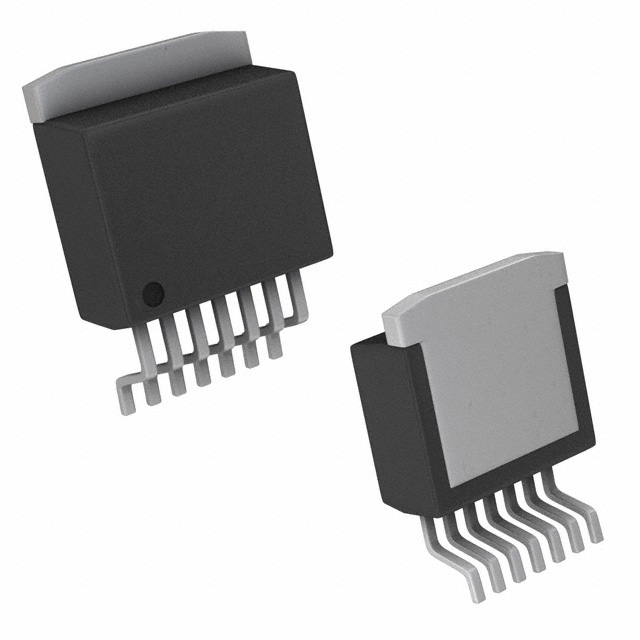

BTN8962TAAUMA1
IC HALF BRIDGE DRVR 30A TO263-7
|
NovalithIC™ | Tape & Reel (TR) | Not For New Designs | Half Bridge | DC Motors, General Purpose | Logic | Inductive | DMOS | 7.5mOhm LS, 6.7mOhm HS | 30A |
|

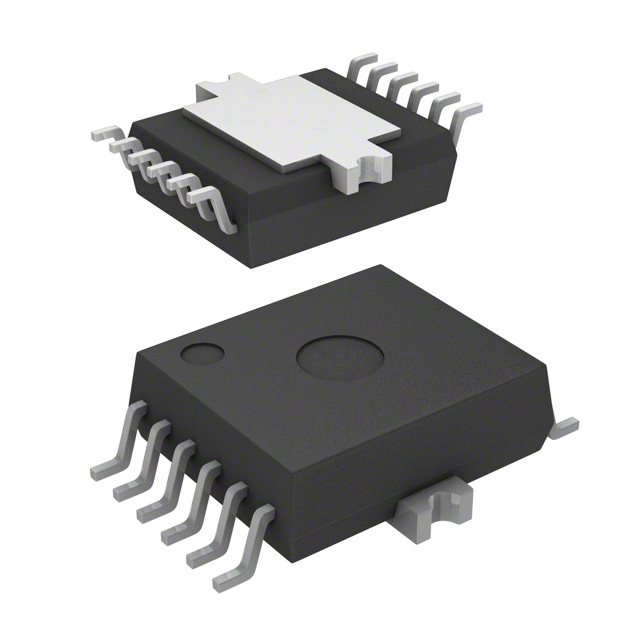

TLE9201SGAUMA1
IC HALF BRIDGE DRIVER 6A 12DSO
|
Automotive, AEC-Q100 | Tape & Reel (TR) | Active | Half Bridge (2) | DC Motors, General Purpose | PWM, SPI | Inductive | Power MOSFET | 100mOhm LS, 100mOhm HS | 6A |
|
|
IRSM505-055DA2
IC HALF BRIDGE DRIVER 2.4A 23DIP
|
µIPM™-DIP | Tube | Discontinued at | Half Bridge (3) | AC Motors | Logic | Inductive | UMOS | 1.3Ohm | 2.4A |
|
BTM7700GXUMA1
IC HALF BRIDGE DRIVER DSO28
|
TrilithIC™ | Tape & Reel (TR) | Obsolete | Half Bridge (2) | DC Motors, General Purpose | Logic | Inductive | DMOS | 80mOhm LS, 110mOhm HS | - |
|
BTN8960TAAUMA1
IC HALF BRIDGE DRVR 30A TO263-7
|
NovalithIC™ | Tape & Reel (TR) | Obsolete | Half Bridge | DC Motors, General Purpose | Logic | Inductive | DMOS | 7.5mOhm LS, 6.7mOhm HS | 30A |
|

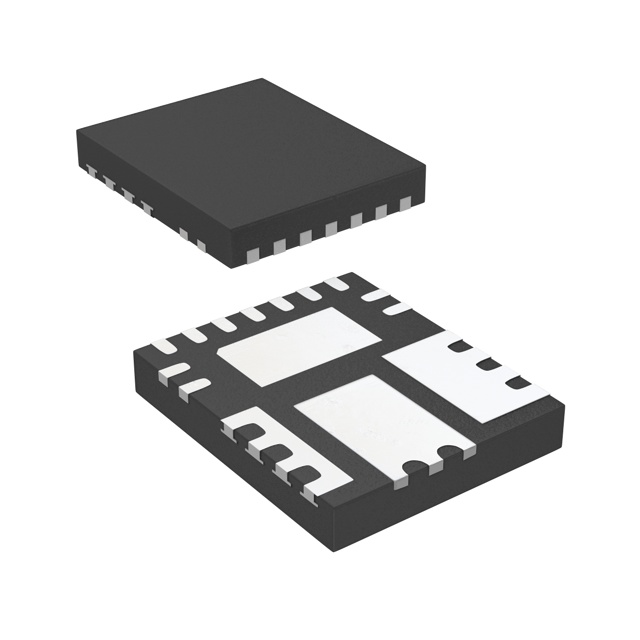

IR3742MTRPBF
IC HALF BRIDGE DRIVER 20A 17QFN
|
PowIRstage® | Tape & Reel (TR) | Obsolete | Half Bridge | Synchronous Buck Converters | PWM | Inductive | Power MOSFET | 4mOhm LS, 8mOhm HS | 20A |
|
|
IRSM505-065DA2
IC HALF BRIDGE DRIVER 2.6A 23DIP
|
µIPM™-DIP | Tube | Obsolete | Half Bridge (3) | AC Motors | Logic | Inductive | UMOS | 1Ohm | 2.6A |
|
|
IRSM515-015DA
IC HALF BRIDGE DRIVER 1.2A 23DIP
|
µIPM™-DIP | Tube | Discontinued at | Half Bridge (3) | AC Motors | Logic | Inductive | UMOS | 5Ohm | 1.2A |
|

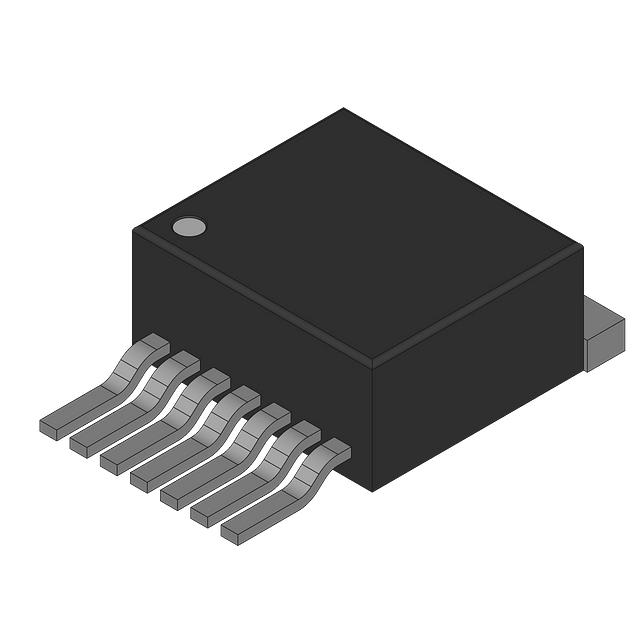

BTN7970B
IC HALF BRIDGE DRVR 70A TO263-7
|
NovalithIC™ | Bulk | Active | Half Bridge | General Purpose | Logic, PWM | Inductive | DMOS | 9mOhm LS, 7mOhm HS | 70A |
|
IR3556MTRPBF
IC GATE DRIVER 50A 30PQFN
|
PowIRstage® | Tape & Reel (TR) | Obsolete | - | Synchronous Buck Converters, Voltage Regulators | PWM | Inductive | - | - | 50A |
|
|
IRSM505-015PAALMA1
IC HALF BRIDGE DRIVER 1.2A 23SOP
|
IRSM505-015 | Tube | Obsolete | Half Bridge (3) | AC Motors | Logic, PWM | Inductive | MOSFET (Metal Oxide) | 5Ohm LS, 5Ohm HS | 1.2A |
