| Image | Mfr Part # | Series | Package | Product Status | Voltage - Supply | Mounting Type | Operating Temperature | Package / Case | Supplier Device Package | Programmable | Number of Logic Elements/Cells |
|---|---|---|---|---|---|---|---|---|---|---|---|
|
EP1M350F780I6AA
IC FPGA 486 I/O 780FBGA
|
Mercury | Tray | Obsolete | 1.71V ~ 1.89V | Surface Mount | -40°C ~ 100°C (TJ) | 780-BBGA, FCBGA | 780-FBGA (29x29) | Not Verified | 14400 |
|

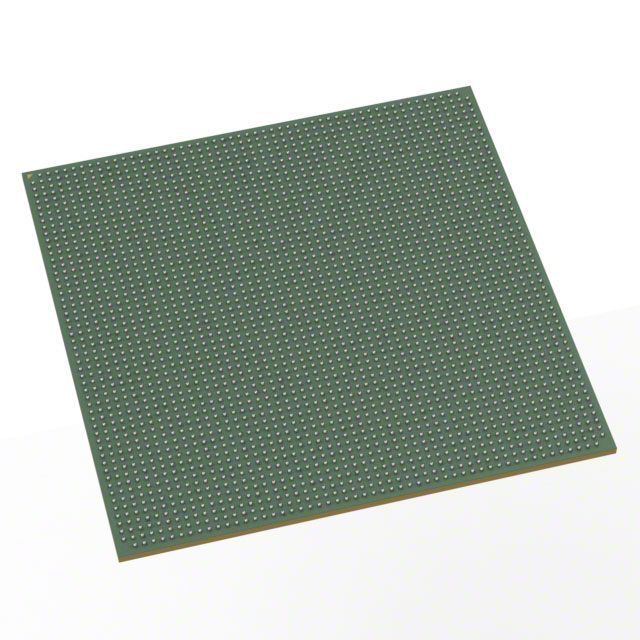

1SD280PT2F55E2VG
IC FPGA 816 I/O 2912FBGA
|
Stratix® 10 DX | Tray | Active | - | Surface Mount | 0°C ~ 100°C (TJ) | 2912-BBGA, FCBGA | 2912-FBGA (55x55) | Not Verified | 2753000 |
|
1SD110PJ2F43I1VG
IC FPGA 528 I/O 1760FBGA
|
Stratix® 10 DX | Tray | Active | 0.87V ~ 0.97V | Surface Mount | -40°C ~ 100°C (TJ) | 1760-BBGA, FCBGA | 1760-FBGA (42.5x42.5) | Not Verified | 1325000 |
|
5SGTMC7K3F40I2N
IC FPGA 600 I/O 1517FBGA
|
Stratix® V GT | Tray | Obsolete | 0.87V ~ 0.93V | Surface Mount | -40°C ~ 100°C (TJ) | 1517-BBGA, FCBGA | 1517-FBGA (40x40) | Not Verified | 622000 |
|

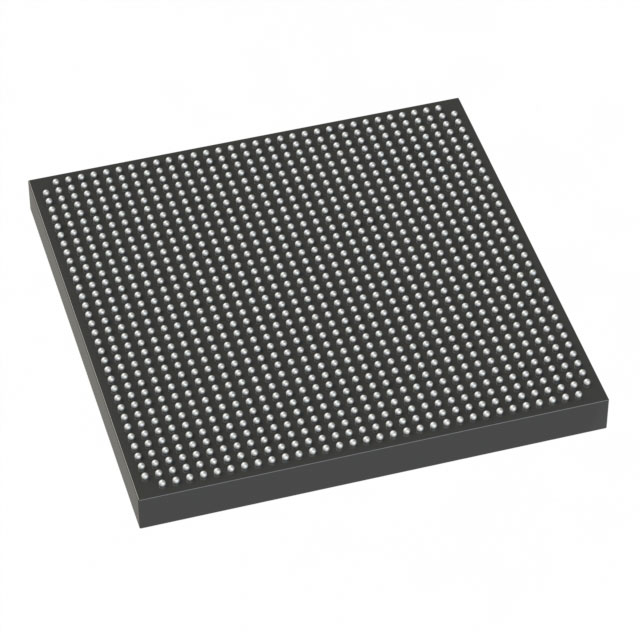

EP2SGX90EF1152C4N
IC FPGA 558 I/O 1152FBGA
|
Stratix® II GX | Tray | Obsolete | 1.15V ~ 1.25V | Surface Mount | 0°C ~ 85°C (TJ) | 1152-BBGA | 1152-FBGA (35x35) | Not Verified | 90960 |
|
EP1AGX60CF484C6N
IC FPGA 229 I/O 484FBGA
|
Arria GX | Tray | Obsolete | 1.15V ~ 1.25V | Surface Mount | 0°C ~ 85°C (TJ) | 484-BBGA | 484-FBGA (23x23) | Not Verified | 60100 |
|
EP1SGX25DF672C6
IC FPGA 455 I/O 672FBGA
|
Stratix® GX | Tray | Obsolete | 1.425V ~ 1.575V | Surface Mount | 0°C ~ 85°C (TJ) | 672-BBGA | 672-FBGA (27x27) | Not Verified | 25660 |
|
EP1SGX25DF672C6N
IC FPGA 455 I/O 672FBGA
|
Stratix® GX | Tray | Obsolete | 1.425V ~ 1.575V | Surface Mount | 0°C ~ 85°C (TJ) | 672-BBGA | 672-FBGA (27x27) | Not Verified | 25660 |
|
EP4S100G2F40I1
IC FPGA 654 I/O 1517FBGA
|
STRATIX® IV GT | Tray | Obsolete | 0.92V ~ 0.98V | Surface Mount | 0°C ~ 100°C (TJ) | 1517-BBGA, FCBGA | 1517-FBGA (40x40) | Not Verified | 228000 |
|
EP4S40GH40I2NGB
IC FPGA 1517HBGA
|
STRATIX® IV GT | Tray | Obsolete | 0.92V ~ 0.98V | Surface Mount | -40°C ~ 100°C (TJ) | 1517-BBGA, FCBGA | 1517-HBGA (42.5x42.5) | Not Verified | - |
|
EPF6024ATC144-3N
IC FPGA 117 I/O 144TQFP
|
FLEX 6000 | Tray | Obsolete | 3V ~ 3.6V | Surface Mount | 0°C ~ 85°C (TJ) | 144-LQFP | 144-TQFP (20x20) | Not Verified | 1960 |
|

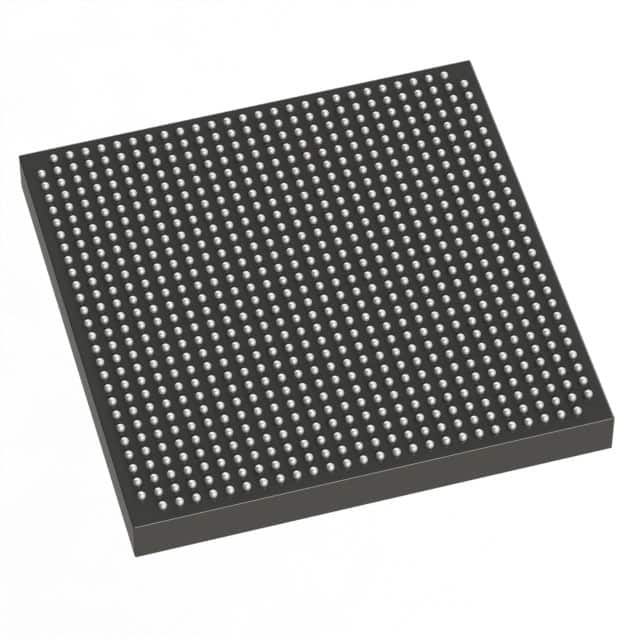

HC1S40F780NAL
IC FPGA 613 I/O 780FBGA
|
Stratix® HardCopy® | Tray | Obsolete | 1.425V ~ 1.575V | Surface Mount | - | 780-BBGA, FCBGA | 780-FBGA (29x29) | Not Verified | 41250 |
