| Image | Mfr Part # | Series | Package | Product Status | Voltage - Supply | Mounting Type | Operating Temperature | Package / Case | Supplier Device Package | Programmable | Number of Logic Elements/Cells |
|---|---|---|---|---|---|---|---|---|---|---|---|
|
5SGSMD6K2F40I3G
IC FPGA 696 I/O 1517FBGA
|
Stratix® V GS | Tray | Active | 0.82V ~ 0.88V | Surface Mount | -40°C ~ 100°C (TJ) | 1517-BBGA, FCBGA | 1517-FBGA (40x40) | Not Verified | 583000 |
|
5SGSMD8K3F40C3G
IC FPGA 696 I/O 1517FBGA
|
Stratix® V GS | Tray | Active | 0.82V ~ 0.88V | Surface Mount | 0°C ~ 85°C (TJ) | 1517-BBGA, FCBGA | 1517-FBGA (40x40) | Not Verified | 695000 |
|
5SGSED6N2F45I3LG
IC FPGA 840 I/O 1932FBGA
|
Stratix® V GS | Tray | Active | 0.82V ~ 0.88V | Surface Mount | -40°C ~ 100°C (TJ) | 1932-BBGA, FCBGA | 1932-FBGA, FC (45x45) | Not Verified | 583000 |
|

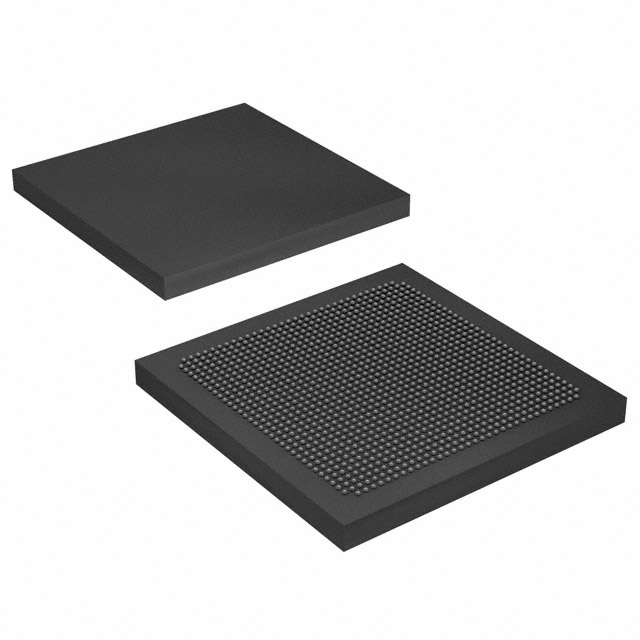

10AX027H1F35E1SG
IC FPGA 384 I/O 1152FBGA
|
Arria 10 GX | Tray | Discontinued at | 0.87V ~ 0.98V | Surface Mount | 0°C ~ 100°C (TJ) | 1152-BBGA, FCBGA | 1152-FCBGA (35x35) | Not Verified | 270000 |
|
5SGSED6N2F45C3G
IC FPGA 840 I/O 1932FBGA
|
Stratix® V GS | Tray | Active | 0.82V ~ 0.88V | Surface Mount | 0°C ~ 85°C (TJ) | 1932-BBGA, FCBGA | 1932-FBGA, FC (45x45) | Not Verified | 583000 |
|
5SGSMD4K3F40C3G
IC FPGA 696 I/O 1517FBGA
|
Stratix® V GS | Tray | Active | 0.82V ~ 0.88V | Surface Mount | 0°C ~ 85°C (TJ) | 1517-BBGA, FCBGA | 1517-FBGA (40x40) | Not Verified | 360000 |
|
10AX032E1F27I1HG
IC FPGA 240 I/O 672FBGA
|
Arria 10 GX | Tray | Active | 0.87V ~ 0.98V | Surface Mount | -40°C ~ 100°C (TJ) | 672-BBGA, FCBGA | 672-FBGA (27x27) | Not Verified | 320000 |
|
10AX022E4F29I3LG
IC FPGA 288 I/O 780FBGA
|
Arria 10 GX | Tray | Active | 0.87V ~ 0.98V | Surface Mount | -40°C ~ 100°C (TJ) | 780-BBGA, FCBGA | 780-FBGA, FC (29x29) | Not Verified | 220000 |
|
|
10AX048E2F29I2SG
IC FPGA 360 I/O 780FBGA
|
Arria 10 GX | Tray | Active | 0.87V ~ 0.98V | Surface Mount | -40°C ~ 100°C (TJ) | 780-BBGA, FCBGA | 780-FBGA, FC (29x29) | Not Verified | 480000 |
|
5SGSED8K3F40I3G
IC FPGA 696 I/O 1517FBGA
|
Stratix® V GS | Tray | Active | 0.82V ~ 0.88V | Surface Mount | -40°C ~ 100°C (TJ) | 1517-BBGA, FCBGA | 1517-FBGA (40x40) | Not Verified | 695000 |
|
5SGSMD4E2H29C2G
IC FPGA 360 I/O 780HBGA
|
Stratix® V GS | Tray | Active | 0.87V ~ 0.93V | Surface Mount | 0°C ~ 85°C (TJ) | 780-BBGA, FCBGA | 780-HBGA (33x33) | Not Verified | 360000 |
|
|
10AX022E3F27E1HG
IC FPGA 240 I/O 672FBGA
|
Arria 10 GX | Tray | Active | 0.87V ~ 0.93V | Surface Mount | 0°C ~ 100°C (TJ) | 672-BBGA, FCBGA | 672-FBGA (27x27) | Not Verified | 220000 |
