| Image | Mfr Part # | Series | Package | Product Status | Voltage - Supply | Mounting Type | Operating Temperature | Package / Case | Supplier Device Package | Programmable | Number of Logic Elements/Cells |
|---|---|---|---|---|---|---|---|---|---|---|---|
|
EP4CE15U14A7N
IC FPGA 165 I/O 256UBGA
|
Cyclone® IV E | Tray | Active | 1.15V ~ 1.25V | Surface Mount | -40°C ~ 125°C (TJ) | 256-LFBGA | 256-UBGA (14x14) | Not Verified | 15408 |
|
EP4CE55F23C8N
IC FPGA 324 I/O 484FBGA
|
Cyclone® IV E | Tray | Active | 1.15V ~ 1.25V | Surface Mount | 0°C ~ 85°C (TJ) | 484-BGA | 484-FBGA (23x23) | Not Verified | 55856 |
|
10M16DAU324I7P
IC FPGA 246 I/O 324UBGA
|
MAX® 10 | Tray | Active | 1.15V ~ 1.25V | Surface Mount | -40°C ~ 100°C (TJ) | 324-LFBGA | 324-UBGA (15x15) | Not Verified | 16000 |
|
10M16SCU169C8G
IC FPGA 130 I/O 169UBGA
|
MAX® 10 | Tray | Active | 2.85V ~ 3.465V | Surface Mount | 0°C ~ 85°C (TJ) | 169-LFBGA | 169-UBGA (11x11) | Not Verified | 16000 |
|
10M04DAF256A7G
IC FPGA 178 I/O 256FBGA
|
MAX® 10 | Tray | Active | 1.15V ~ 1.25V | Surface Mount | -40°C ~ 125°C (TJ) | 256-LBGA | 256-FBGA (17x17) | Not Verified | 4000 |
|
10M50DDF672I7G
IC FPGA/CPLD NV 500 I/O 672FBGA
|
MAX® 10 | Tray | Active | 2.85V ~ 3.15V, 3.135V ~ 3.465V | Surface Mount | -40°C ~ 100°C (TJ) | 672-BGA | 672-FBGA (27x27) | Not Verified | 50000 |
|

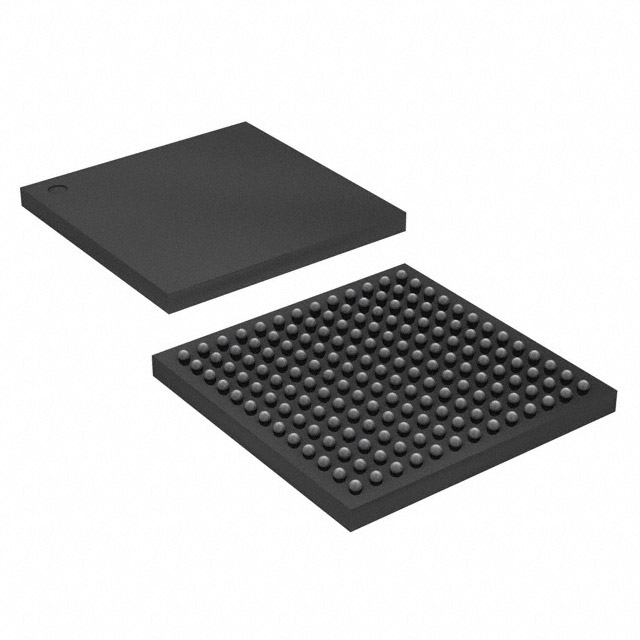

10M16SCU169A7P
IC FPGA 130 I/O 169UBGA
|
MAX® 10 | Tray | Active | 2.85V ~ 3.465V | Surface Mount | -40°C ~ 125°C (TJ) | 169-LFBGA | 169-UBGA (11x11) | Not Verified | 16000 |
|
10M40DDF484I7G
IC FPGA/CPLD NV 360 I/O 484FBGA
|
MAX® 10 | Tray | Active | 2.85V ~ 3.15V, 3.135V ~ 3.465V | Surface Mount | -40°C ~ 100°C (TJ) | 484-BGA | 484-FBGA (23x23) | Not Verified | 40000 |
|
EP1S60F1020C6NGB
IC FPGA 773 I/O 1020FBGA
|
Stratix® | Tray | Obsolete | 1.425V ~ 1.575V | Surface Mount | 0°C ~ 85°C (TJ) | 1020-BBGA | 1020-FBGA (33x33) | Not Verified | 57120 |
|
EP1S30F780C6GA
IC FPGA 597 I/O 780FBGA
|
Stratix® | Tray | Obsolete | 1.425V ~ 1.575V | Surface Mount | 0°C ~ 85°C (TJ) | 780-BBGA, FCBGA | 780-FBGA (29x29) | Not Verified | 32470 |
|

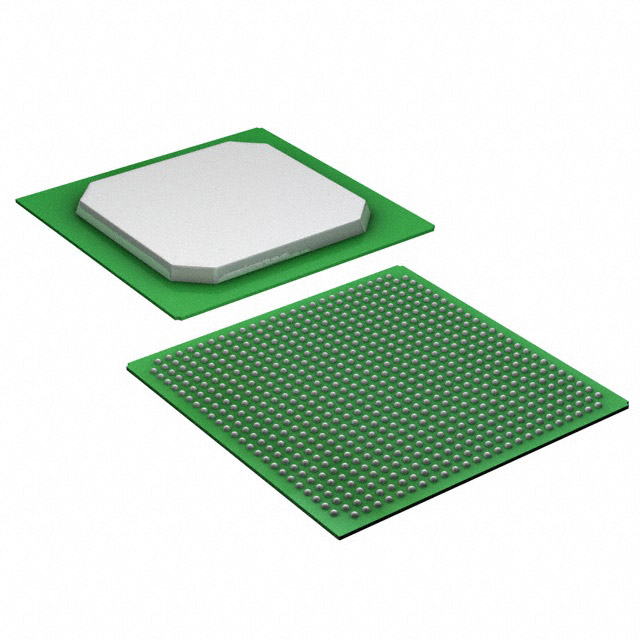

10M50DAF672C7G
IC FPGA 500 I/O 672FBGA
|
MAX® 10 | Tray | Active | 1.15V ~ 1.25V | Surface Mount | 0°C ~ 85°C (TJ) | 672-BGA | 672-FBGA (27x27) | Not Verified | 50000 |
|
EP1S30F1020C5
IC FPGA 726 I/O 1020FBGA
|
Stratix® | Bulk | Active | 1.425V ~ 1.575V | Surface Mount | 0°C ~ 85°C (TJ) | 1020-BBGA, FCBGA | 1020-FBGA (33x33) | Not Verified | 32470 |
