| Image | Mfr Part # | Series | Package | Product Status | Voltage - Supply | Mounting Type | Operating Temperature | Package / Case | Supplier Device Package | Programmable | Number of Logic Elements/Cells |
|---|---|---|---|---|---|---|---|---|---|---|---|
|
EP1M350F780C7ES
IC FPGA 486 I/O 780FBGA
|
Mercury | Tray | Obsolete | 1.71V ~ 1.89V | Surface Mount | 0°C ~ 85°C (TJ) | 780-BBGA, FCBGA | 780-FBGA (29x29) | Not Verified | 14400 |
|
EP2SGX60CF780C3
IC FPGA 364 I/O 780FBGA
|
Stratix® II GX | Tray | Obsolete | 1.15V ~ 1.25V | Surface Mount | 0°C ~ 85°C (TJ) | 780-BBGA | 780-FBGA (29x29) | Not Verified | 60440 |
|
5SGTMC7K3F40C2N
IC FPGA 600 I/O 1517FBGA
|
Stratix® V GT | Tray | Obsolete | 0.87V ~ 0.93V | Surface Mount | 0°C ~ 85°C (TJ) | 1517-BBGA, FCBGA | 1517-FBGA (40x40) | Not Verified | 622000 |
|

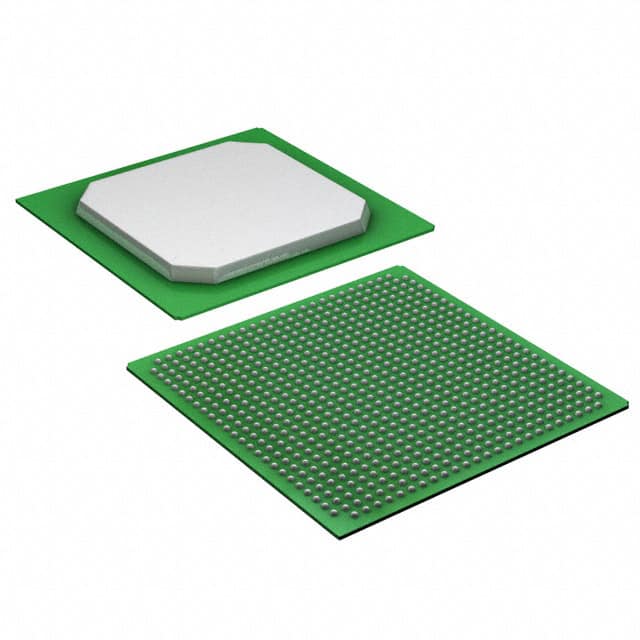

5CGTFD7D5F27C7N
IC FPGA 336 I/O 672FBGA
|
Cyclone® V GT | Tray | Active | 1.07V ~ 1.13V | Surface Mount | 0°C ~ 85°C (TJ) | 672-BGA | 672-FBGA (27x27) | Not Verified | 149500 |
|
|
5SGTMC5K3F40C1
IC FPGA 600 I/O 1517FBGA
|
Stratix® V GT | Tray | Obsolete | 0.87V ~ 0.93V | Surface Mount | 0°C ~ 85°C (TJ) | 1517-BBGA, FCBGA | 1517-FBGA (40x40) | Not Verified | 425000 |
|
HC20K600FC672AA
IC FPGA 672FBGA
|
APEX® HardCopy® | Tray | Obsolete | 1.71V ~ 1.89V | Surface Mount | 0°C ~ 85°C (TJ) | 672-BBGA | 672-FBGA (27x27) | Not Verified | 24320 |
|
1SD110PJ1F43E1VG
IC FPGA 528 I/O 1760FBGA
|
Stratix® 10 DX | Tray | Active | 0.87V ~ 0.97V | Surface Mount | 0°C ~ 100°C (TJ) | 1760-BBGA, FCBGA | 1760-FBGA (42.5x42.5) | Not Verified | 1325000 |
|
EP2AGZ300HF40I4
IC FPGA 11920 I/O 1517FBGA
|
Arria II GZ | Tray | Obsolete | 0.87V ~ 0.93V | Surface Mount | -40°C ~ 100°C (TJ) | 1517-BBGA, FCBGA | 1517-FBGA (40x40) | Not Verified | - |
|
EPF6016AFC100-2
IC FPGA 81 I/O 100FBGA
|
FLEX 6000 | Bulk | Active | 3V ~ 3.6V | Surface Mount | 0°C ~ 85°C (TJ) | 100-LBGA | 100-FBGA (11x11) | Not Verified | - |
|
10AT115U2F45E2SGE2
IC FPGA 624 I/O 1932FCBGA
|
Arria 10 GT | Tray | Obsolete | 0.87V ~ 0.93V | Surface Mount | 0°C ~ 100°C (TJ) | 1932-BBGA, FCBGA | 1932-FCBGA (45x45) | Not Verified | 1150000 |
|
EP2SGX90FF1508I4
IC FPGA 650 I/O 1508FBGA
|
Stratix® II GX | Tray | Obsolete | 1.15V ~ 1.25V | Surface Mount | -40°C ~ 100°C (TJ) | 1508-BBGA, FCBGA | 1508-FBGA, FC (40x40) | Not Verified | 90960 |
|
EP4S40G5H40I2N
IC FPGA 654 I/O 1517HBGA
|
STRATIX® IV GT | Tray | Obsolete | 0.92V ~ 0.98V | Surface Mount | 0°C ~ 100°C (TJ) | 1517-BBGA, FCBGA | 1517-HBGA (42.5x42.5) | Not Verified | 531200 |
