| Image | Mfr Part # | Series | Package | Product Status | Voltage - Supply | Mounting Type | Operating Temperature | Package / Case | Supplier Device Package | Programmable | Number of Logic Elements/Cells |
|---|---|---|---|---|---|---|---|---|---|---|---|
|
5SGSMD5K1F40C2G
IC FPGA 696 I/O 1517FBGA
|
Stratix® V GS | Tray | Active | 0.87V ~ 0.93V | Surface Mount | 0°C ~ 85°C (TJ) | 1517-BBGA, FCBGA | 1517-FBGA (40x40) | Not Verified | 457000 |
|
5SGSED6K1F40C2LG
IC FPGA 696 I/O 1517FBGA
|
Stratix® V GS | Tray | Active | 0.82V ~ 0.88V | Surface Mount | 0°C ~ 85°C (TJ) | 1517-BBGA, FCBGA | 1517-FBGA (40x40) | Not Verified | 583000 |
|
5AGTFD7H3F35I3G
IC FPGA 342 I/O 1152FBGA
|
Arria V GT | Tray | Active | 0.82V ~ 0.88V | Surface Mount | -40°C ~ 100°C (TJ) | 1152-BBGA, FCBGA | 1152-FBGA, FC (35x35) | Not Verified | 504000 |
|
5SGSMD4H2F35I3G
IC FPGA 432 I/O 1152FBGA
|
Stratix® V GS | Tray | Active | 0.82V ~ 0.88V | Surface Mount | -40°C ~ 100°C (TJ) | 1152-BBGA, FCBGA | 1152-FBGA (35x35) | Not Verified | 360000 |
|
5SGSMD8K2F40C2G
IC FPGA 696 I/O 1517FBGA
|
Stratix® V GS | Tray | Active | 0.87V ~ 0.93V | Surface Mount | 0°C ~ 85°C (TJ) | 1517-BBGA, FCBGA | 1517-FBGA (40x40) | Not Verified | 695000 |
|
1SG250HN1F43I2VG
IC FPGA 688 I/O 1760FBGA
|
Stratix® 10 GX | Tray | Active | 0.77V ~ 0.97V | Surface Mount | -40°C ~ 100°C (TJ) | 1760-BBGA, FCBGA | 1760-FBGA (42.5x42.5) | Not Verified | 2500000 |
|
EP1S25F672C7AA
IC FPGA 473 I/O 672FBGA
|
Stratix® | Tray | Obsolete | 1.425V ~ 1.575V | Surface Mount | 0°C ~ 85°C (TJ) | 672-BBGA | 672-FBGA (27x27) | Not Verified | 25660 |
|

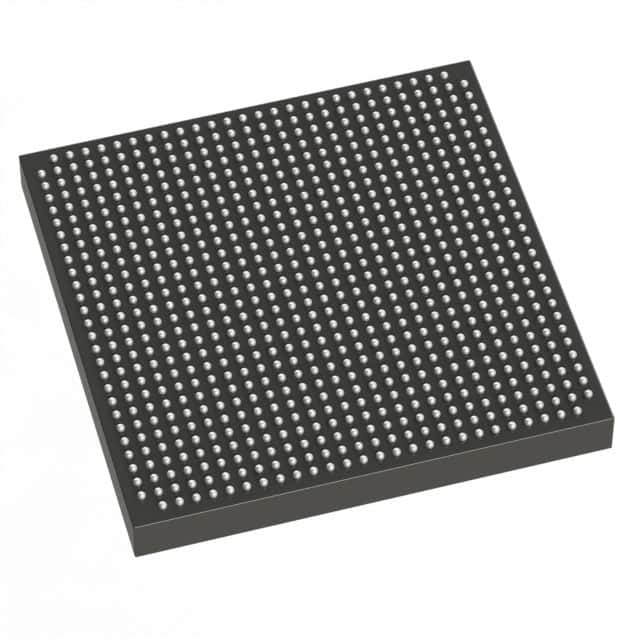

HC1S30F780NAC
IC FPGA 597 I/O 780FBGA
|
Stratix® HardCopy® | Tray | Obsolete | 1.425V ~ 1.575V | Surface Mount | - | 780-BBGA, FCBGA | 780-FBGA (29x29) | Not Verified | 32470 |
|
EP1S60F1020C7
IC FPGA 773 I/O 1020FBGA
|
Stratix® | Tray | Active | 1.425V ~ 1.575V | Surface Mount | 0°C ~ 85°C (TJ) | 1020-BBGA | 1020-FBGA (33x33) | Not Verified | 57120 |
|
5SGSED8N2F45I3LG
IC FPGA 840 I/O 1932FBGA
|
Stratix® V GS | Tray | Active | 0.82V ~ 0.88V | Surface Mount | -40°C ~ 100°C (TJ) | 1932-BBGA, FCBGA | 1932-FBGA, FC (45x45) | Not Verified | 695000 |
|
5SGSED8K2F40C2LG
IC FPGA 696 I/O 1517FBGA
|
Stratix® V GS | Tray | Active | 0.82V ~ 0.88V | Surface Mount | 0°C ~ 85°C (TJ) | 1517-BBGA, FCBGA | 1517-FBGA (40x40) | Not Verified | 695000 |
|

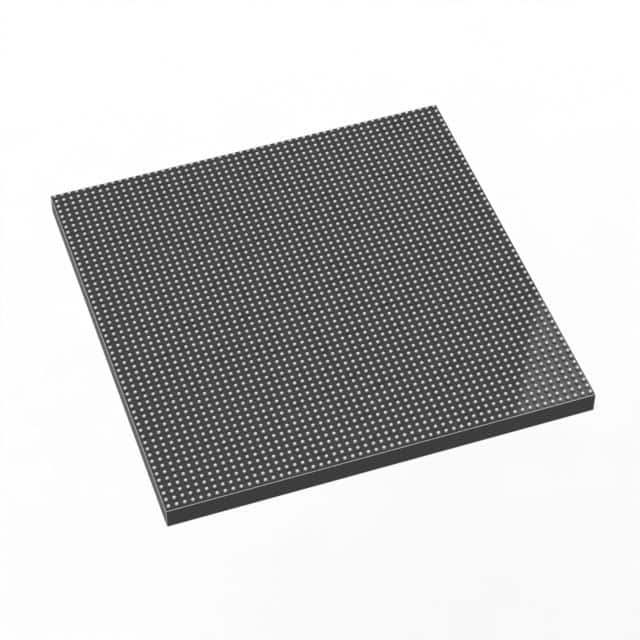

1SG280HH2F55I2LG
IC FPGA 1160 I/O 2912BGA
|
Stratix® 10 GX | Tray | Active | 0.82V ~ 0.88V | Surface Mount | -40°C ~ 100°C (TJ) | 2912-BBGA, FCBGA | 2912-FBGA, FC (55x55) | Not Verified | 2800000 |
