| Image | Mfr Part # | Series | Package | Product Status | Voltage - Supply | Mounting Type | Operating Temperature | Package / Case | Supplier Device Package | Programmable | Number of Logic Elements/Cells |
|---|---|---|---|---|---|---|---|---|---|---|---|
|
5AGXBA3D4F27C4G
IC FPGA 336 I/O 672FBGA
|
Arria V GX | Tray | Active | 1.07V ~ 1.13V | Surface Mount | 0°C ~ 85°C (TJ) | 672-BBGA, FCBGA | 672-FBGA (27x27) | Not Verified | 156000 |
|
EP1M120F484C8ES
IC FPGA 303 I/O 484FBGA
|
Mercury | Tray | Obsolete | 1.71V ~ 1.89V | Surface Mount | 0°C ~ 85°C (TJ) | 484-BBGA, FCBGA | 484-FBGA (23x23) | Not Verified | 4800 |
|
EP4CE55F23C8L
IC FPGA 324 I/O 484FBGA
|
Cyclone® IV E | Tray | Active | 0.97V ~ 1.03V | Surface Mount | 0°C ~ 85°C (TJ) | 484-BGA | 484-FBGA (23x23) | Not Verified | 55856 |
|
5AGXBB1D4F40I5G
IC FPGA 704 I/O 1517FBGA
|
Arria V GX | Tray | Active | 1.07V ~ 1.13V | Surface Mount | -40°C ~ 100°C (TJ) | 1517-BBGA, FCBGA | 1517-FBGA, FC (40x40) | Not Verified | 300000 |
|
EP4CE115F29C9L
IC FPGA 528 I/O 780FBGA
|
Cyclone® IV E | Tray | Active | 0.97V ~ 1.03V | Surface Mount | 0°C ~ 85°C (TJ) | 780-BGA | 780-FBGA (29x29) | Not Verified | 114480 |
|
5SGSMD3E2H29I2L
IC FPGA 360 I/O 780HBGA
|
Stratix® V GS | Tray | Obsolete | 0.82V ~ 0.88V | Surface Mount | -40°C ~ 100°C (TJ) | 780-BBGA, FCBGA | 780-HBGA (33x33) | Not Verified | 236000 |
|
5SGSMD4H3F35C2N
IC FPGA 432 I/O 1152FBGA
|
Stratix® V GS | Tray | Obsolete | 0.87V ~ 0.93V | Surface Mount | 0°C ~ 85°C (TJ) | 1152-BBGA, FCBGA | 1152-FBGA (35x35) | Not Verified | 360000 |
|
EP2AGZ350HF40I3N
IC FPGA 734 I/O 1517FBGA
|
Arria II GZ | Tray | Obsolete | 0.87V ~ 0.93V | Surface Mount | -40°C ~ 100°C (TJ) | 1517-BBGA, FCBGA | 1517-FBGA (40x40) | Not Verified | 348500 |
|

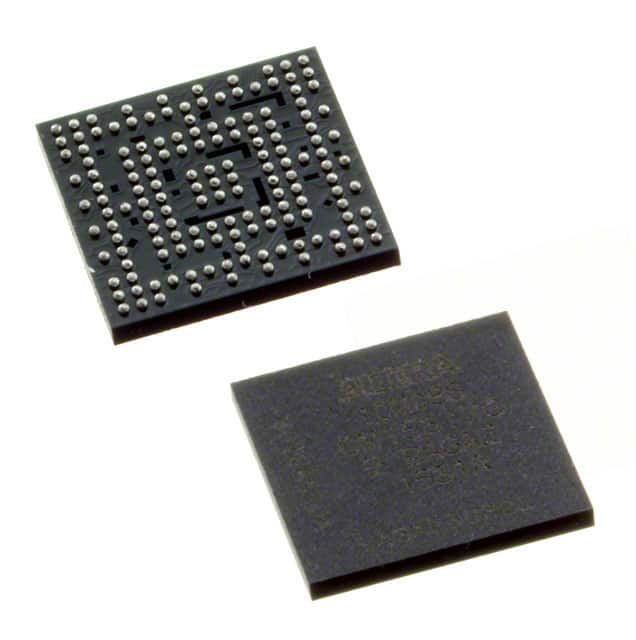

10M08SCM153C8G
IC FPGA 112 I/O 153MBGA
|
MAX® 10 | Tray | Active | 2.85V ~ 3.465V | Surface Mount | 0°C ~ 85°C (TJ) | 153-VFBGA | 153-MBGA (8x8) | Not Verified | 8000 |
|
|
5SGSMD3H2F35C3N
IC FPGA 432 I/O 1152FBGA
|
Stratix® V GS | Tray | Obsolete | 0.82V ~ 0.88V | Surface Mount | 0°C ~ 85°C (TJ) | 1152-BBGA, FCBGA | 1152-FBGA (35x35) | Not Verified | 236000 |
|
|
5SGSMD3H3F35C2L
IC FPGA 432 I/O 1152FBGA
|
Stratix® V GS | Tray | Obsolete | 0.82V ~ 0.88V | Surface Mount | 0°C ~ 85°C (TJ) | 1152-BBGA, FCBGA | 1152-FBGA (35x35) | Not Verified | 236000 |
|
|
5AGXFB1H4F40C5G
IC FPGA 704 I/O 1517FBGA
|
Arria V GX | Tray | Active | 1.07V ~ 1.13V | Surface Mount | 0°C ~ 85°C (TJ) | 1517-BBGA, FCBGA | 1517-FBGA, FC (40x40) | Not Verified | 300000 |
