| Image | Mfr Part # | Series | Package | Product Status | Voltage - Supply | Mounting Type | Operating Temperature | Package / Case | Supplier Device Package | Programmable | Number of Logic Elements/Cells |
|---|---|---|---|---|---|---|---|---|---|---|---|
|
EP2S30F672C4
IC FPGA 500 I/O 672FBGA
|
Stratix® II | Tray | Obsolete | 1.15V ~ 1.25V | Surface Mount | 0°C ~ 85°C (TJ) | 672-BBGA | 672-FBGA (27x27) | Not Verified | 33880 |
|
EP2S130F1020C4N
IC FPGA 742 I/O 1020FBGA
|
Stratix® II | Tray | Obsolete | 1.15V ~ 1.25V | Surface Mount | 0°C ~ 85°C (TJ) | 1020-BBGA | 1020-FBGA (33x33) | Not Verified | 132540 |
|
EP2S90F780I4
IC FPGA 534 I/O 780FBGA
|
Stratix® II | Tray | Obsolete | 1.15V ~ 1.25V | Surface Mount | -40°C ~ 100°C (TJ) | 780-BBGA | 780-FBGA (29x29) | Not Verified | 90960 |
|

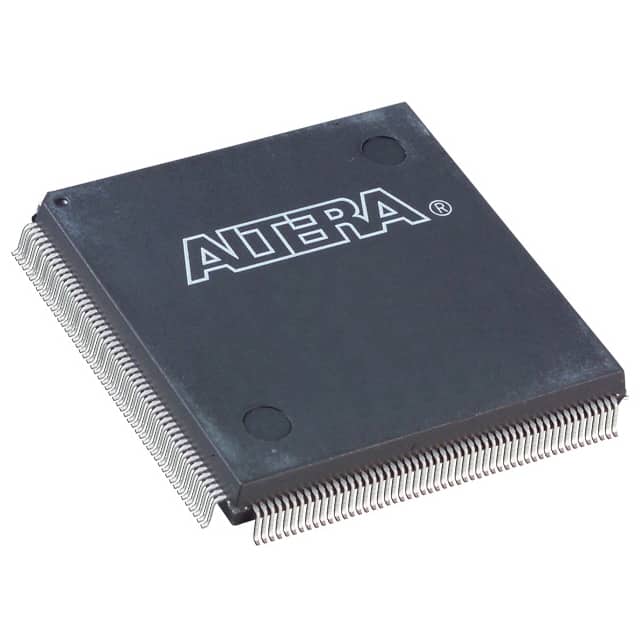

EP20K100QC208-2
IC FPGA 159 I/O 208QFP
|
APEX-20K® | Tray | Obsolete | 2.375V ~ 2.625V | Surface Mount | 0°C ~ 85°C (TJ) | 208-BFQFP | 208-PQFP (28x28) | Not Verified | 4160 |
|

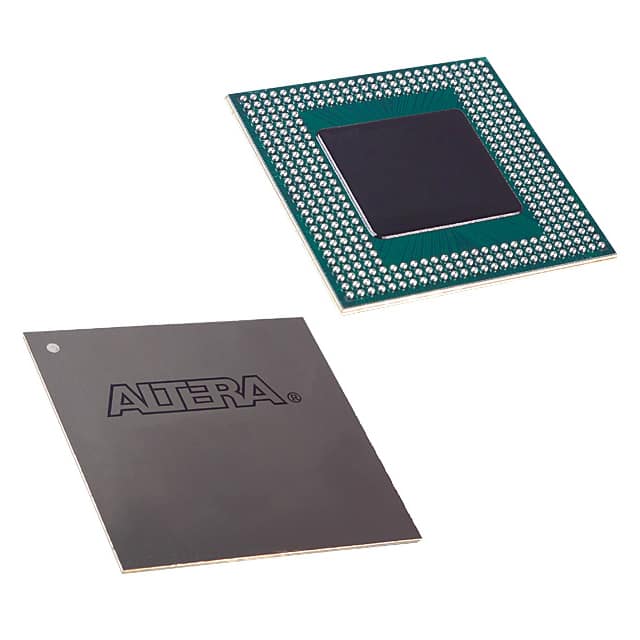

EP20K200BI356-3
IC FPGA 277 I/O 356BGA
|
APEX-20K® | Tray | Obsolete | 2.375V ~ 2.625V | Surface Mount | -40°C ~ 100°C (TJ) | 356-LBGA | 356-BGA (35x35) | Not Verified | 8320 |
|
5SGSMD3H2F35I3L
IC FPGA 432 I/O 1152FBGA
|
Stratix® V GS | Tray | Obsolete | 0.82V ~ 0.88V | Surface Mount | -40°C ~ 100°C (TJ) | 1152-BBGA, FCBGA | 1152-FBGA (35x35) | Not Verified | 236000 |
|
5SGSED8K3F40I3LN
IC FPGA 696 I/O 1517FBGA
|
Stratix® V GS | Tray | Obsolete | 0.82V ~ 0.88V | Surface Mount | -40°C ~ 100°C (TJ) | 1517-BBGA, FCBGA | 1517-FBGA (40x40) | Not Verified | 695000 |
|
5SGSMD4E3H29C2N
IC FPGA 360 I/O 780HBGA
|
Stratix® V GS | Tray | Obsolete | 0.87V ~ 0.93V | Surface Mount | 0°C ~ 85°C (TJ) | 780-BBGA, FCBGA | 780-HBGA (33x33) | Not Verified | 360000 |
|

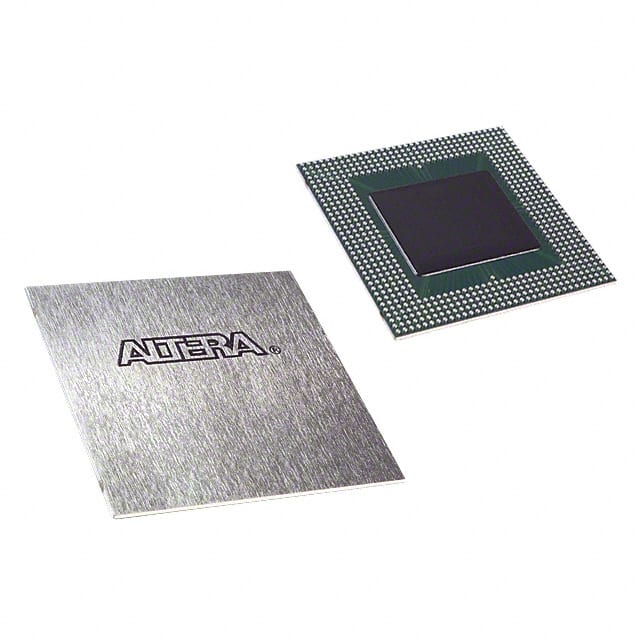

EP20K400BI652-2V
IC FPGA 502 I/O 652BGA
|
APEX-20K® | Tray | Obsolete | 2.375V ~ 2.625V | Surface Mount | -40°C ~ 100°C (TJ) | 652-BGA | 652-BGA (45x45) | Not Verified | 16640 |
|
EP20K200FI672-3
IC FPGA 672FBGA
|
APEX-20K® | Tray | Obsolete | 2.375V ~ 2.625V | Surface Mount | -40°C ~ 100°C (TJ) | 672-BBGA | 672-FBGA (27x27) | Not Verified | 8320 |
|
|
5SGSMD8K2F40I3LN
IC FPGA 696 I/O 1517FBGA
|
Stratix® V GS | Tray | Obsolete | 0.82V ~ 0.88V | Surface Mount | -40°C ~ 100°C (TJ) | 1517-BBGA, FCBGA | 1517-FBGA (40x40) | Not Verified | 695000 |
|
|
5SGSMD3E3H29C2LN
IC FPGA 360 I/O 780HBGA
|
Stratix® V GS | Tray | Obsolete | 0.82V ~ 0.88V | Surface Mount | 0°C ~ 85°C (TJ) | 780-BBGA, FCBGA | 780-HBGA (33x33) | Not Verified | 236000 |
