| Image | Mfr Part # | Series | Package | Product Status | Voltage - Supply | Mounting Type | Operating Temperature | Package / Case | Supplier Device Package | Programmable | Number of Logic Elements/Cells |
|---|---|---|---|---|---|---|---|---|---|---|---|
|
EP4S40G2F40I2NAA
IC FPGA 654 I/O 1517FBGA
|
STRATIX® IV GT | Tray | Obsolete | 0.92V ~ 0.98V | Surface Mount | -40°C ~ 100°C (TJ) | 1517-BBGA, FCBGA | 1517-FBGA (40x40) | Not Verified | 228000 |
|
EP4CE30F23C8N
IC FPGA 328 I/O 484FBGA
|
Cyclone® IV E | Tray | Active | 1.15V ~ 1.25V | Surface Mount | 0°C ~ 85°C (TJ) | 484-BGA | 484-FBGA (23x23) | Not Verified | 28848 |
|
EPF6024ATC144-2N
IC FPGA 117 I/O 144TQFP
|
FLEX 6000 | Tray | Obsolete | 3V ~ 3.6V | Surface Mount | 0°C ~ 85°C (TJ) | 144-LQFP | 144-TQFP (20x20) | Not Verified | 1960 |
|
EP4SGX70HF35C3
IC FPGA 488 I/O 1152FBGA
|
Stratix® IV GX | Tray | Obsolete | 0.87V ~ 0.93V | Surface Mount | 0°C ~ 85°C (TJ) | 1152-BBGA, FCBGA | 1152-FBGA (35x35) | Not Verified | 72600 |
|
EP1SGX25FF1020C6
IC FPGA 607 I/O 1020FBGA
|
Stratix® GX | Tray | Obsolete | 1.425V ~ 1.575V | Surface Mount | 0°C ~ 85°C (TJ) | 1020-BBGA | 1020-FBGA (33x33) | Not Verified | 25660 |
|
|
EP2AGX125EF35C5N
IC FPGA 452 I/O 1152FBGA
|
Arria II GX | Tray | Obsolete | 0.87V ~ 0.93V | Surface Mount | 0°C ~ 85°C (TJ) | 1152-BBGA, FCBGA | 1152-FBGA (35x35) | Not Verified | 118143 |
|

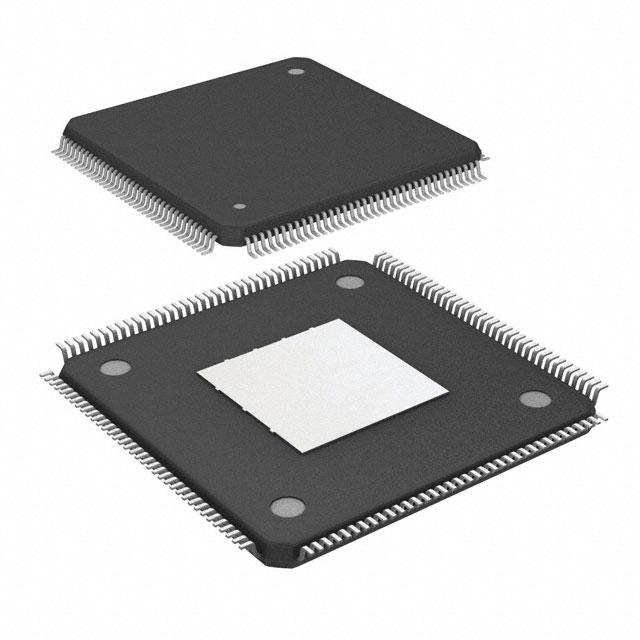

EP4CE22E22C8LN
IC FPGA 79 I/O 144EQFP
|
Cyclone® IV E | Tray | Active | 0.97V ~ 1.03V | Surface Mount | 0°C ~ 85°C (TJ) | 144-LQFP Exposed Pad | 144-EQFP (20x20) | Not Verified | 22320 |
|

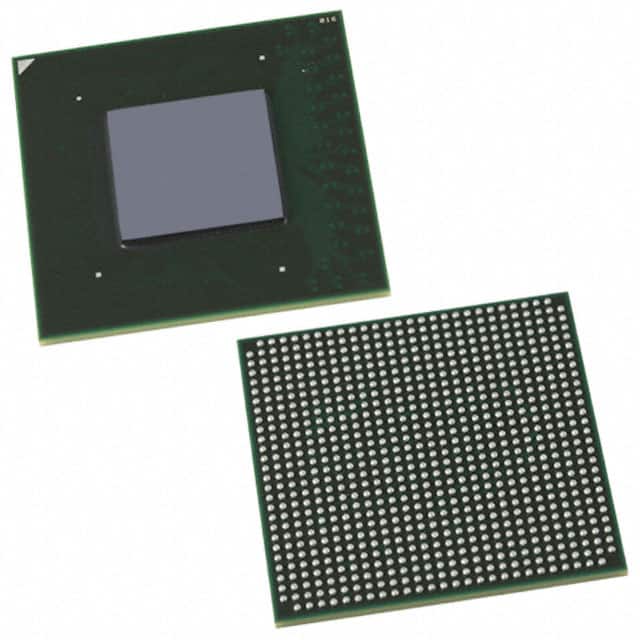

EP2AGX260EF29C6NES
IC FPGA 372 I/O 780FBGA
|
Arria II GX | Tray | Obsolete | 0.87V ~ 0.93V | Surface Mount | 0°C ~ 85°C (TJ) | 780-BBGA, FCBGA | 780-FBGA (29x29) | Not Verified | 244188 |
|
EP2AGX65DF29I3N
IC FPGA 364 I/O 780FBGA
|
Arria II GX | Tray | Obsolete | 0.87V ~ 0.93V | Surface Mount | -40°C ~ 100°C (TJ) | 780-BBGA, FCBGA | 780-FBGA (29x29) | Not Verified | 60214 |
|
EP1SGX25DF672C5
IC FPGA 455 I/O 672FBGA
|
Stratix® GX | Tray | Obsolete | 1.425V ~ 1.575V | Surface Mount | 0°C ~ 85°C (TJ) | 672-BBGA | 672-FBGA (27x27) | Not Verified | 25660 |
|
5AGTMC3D3F31I5G
IC FPGA 416 I/O 896FBGA
|
Arria V GT | Tray | Active | 1.07V ~ 1.13V | Surface Mount | -40°C ~ 100°C (TJ) | 896-BBGA, FCBGA | 896-FBGA (31x31) | Not Verified | 156000 |
|
EP4CE15F23C8L
IC FPGA 343 I/O 484FBGA
|
Cyclone® IV E | Tray | Active | 0.97V ~ 1.03V | Surface Mount | 0°C ~ 85°C (TJ) | 484-BGA | 484-FBGA (23x23) | Not Verified | 15408 |
