| Image | Mfr Part # | Series | Package | Product Status | Voltage - Supply | Mounting Type | Operating Temperature | Package / Case | Supplier Device Package | Programmable | Number of Logic Elements/Cells |
|---|---|---|---|---|---|---|---|---|---|---|---|
|
EP4SGX180HF35C4
IC FPGA 564 I/O 1152FBGA
|
Stratix® IV GX | Tray | Obsolete | 0.87V ~ 0.93V | Surface Mount | 0°C ~ 85°C (TJ) | 1152-BBGA, FCBGA | 1152-FBGA (35x35) | Not Verified | 175750 |
|
EP2A40F1020C8
IC FPGA 735 I/O 1020FBGA
|
APEX II | Tray | Obsolete | 1.425V ~ 1.575V | Surface Mount | 0°C ~ 85°C (TJ) | 1020-BBGA | 1020-FBGA (33x33) | Not Verified | 38400 |
|
5AGXBB7D4F35I5G
IC FPGA 544 I/O 1152FBGA
|
Arria V GX | Tray | Active | 1.07V ~ 1.13V | Surface Mount | -40°C ~ 100°C (TJ) | 1152-BBGA, FCBGA | 1152-FBGA, FC (35x35) | Not Verified | 504140 |
|
EP4SGX290NF45I3N
IC FPGA 920 I/O 1932FBGA
|
Stratix® IV GX | Tray | Obsolete | 0.87V ~ 0.93V | Surface Mount | -40°C ~ 100°C (TJ) | 1932-BBGA, FCBGA | 1932-FBGA, FC (45x45) | Not Verified | 291200 |
|
1SG280HU3F50E2VGAS
IC FPGA 704 I/O 2397BGA
|
Stratix® 10 GX | Tray | Active | 0.77V ~ 0.97V | Surface Mount | 0°C ~ 100°C (TJ) | 2397-BBGA, FCBGA | 2397-FBGA, FC (50x50) | Not Verified | 2800000 |
|
EP20K400CF672C9
IC FPGA 488 I/O 672FBGA
|
APEX-20KC® | Tray | Obsolete | 1.71V ~ 1.89V | Surface Mount | 0°C ~ 85°C (TJ) | 672-BBGA | 672-FBGA (27x27) | Not Verified | 16640 |
|
EP4SGX180DF29C4N
IC FPGA 372 I/O 780FBGA
|
Stratix® IV GX | Tray | Obsolete | 0.87V ~ 0.93V | Surface Mount | 0°C ~ 85°C (TJ) | 780-BBGA, FCBGA | 780-FBGA (29x29) | Not Verified | 175750 |
|

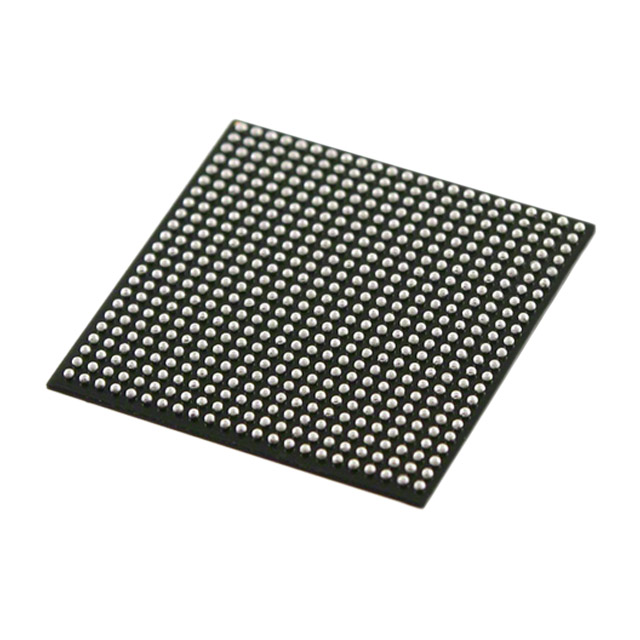

5CEBA7U19C8N
IC FPGA 240 I/O 484UBGA
|
Cyclone® V E | Tray | Active | 1.07V ~ 1.13V | Surface Mount | 0°C ~ 85°C (TJ) | 484-FBGA | 484-UBGA (19x19) | Not Verified | 149500 |
|
1SG280HU3F50E1VGS3
IC FPGA 704 I/O 2397FBGA
|
Stratix® 10 GX | Tray | Discontinued at | 0.77V ~ 0.97V | Surface Mount | 0°C ~ 100°C (TJ) | 2397-BBGA, FCBGA | 2397-FBGA, FC (50x50) | Not Verified | 2800000 |
|
EP20K400CF672C8
IC FPGA 488 I/O 672FBGA
|
APEX-20KC® | Tray | Obsolete | 1.71V ~ 1.89V | Surface Mount | 0°C ~ 85°C (TJ) | 672-BBGA | 672-FBGA (27x27) | Not Verified | 16640 |
|
1SG250HU3F50E3XG
IC FPGA 704 I/O 2397BGA
|
Stratix® 10 GX | Tray | Active | 0.82V ~ 0.88V | Surface Mount | 0°C ~ 100°C (TJ) | 2397-BBGA, FCBGA | 2397-FBGA, FC (50x50) | Not Verified | 2500000 |
|
5CEBA2F17I7N
IC FPGA 128 I/O 256FBGA
|
Cyclone® V E | Tray | Active | 1.07V ~ 1.13V | Surface Mount | -40°C ~ 100°C (TJ) | 256-LBGA | 256-FBGA (17x17) | Not Verified | 25000 |
