| Image | Mfr Part # | Series | Package | Product Status | Voltage - Supply | Mounting Type | Operating Temperature | Package / Case | Supplier Device Package | Programmable | Number of Logic Elements/Cells |
|---|---|---|---|---|---|---|---|---|---|---|---|
|
EP2S60F1020C4TT
IC FPGA 718 I/O 1020FBGA
|
Stratix® II | Tray | Obsolete | 1.15V ~ 1.25V | Surface Mount | 0°C ~ 85°C (TJ) | 1020-BBGA | 1020-FBGA (33x33) | Not Verified | 60440 |
|
EP2S180F1508C3N
IC FPGA 1170 I/O 1508FBGA
|
Stratix® II | Tray | Obsolete | 1.15V ~ 1.25V | Surface Mount | 0°C ~ 85°C (TJ) | 1508-BBGA, FCBGA | 1508-FBGA, FC (40x40) | Not Verified | 179400 |
|
EP2S15F484I4N
IC FPGA 342 I/O 484FBGA
|
Stratix® II | Tray | Obsolete | 1.15V ~ 1.25V | Surface Mount | -40°C ~ 100°C (TJ) | 484-BBGA | 484-FBGA (23x23) | Not Verified | 15600 |
|
EP2S60F672C5N
IC FPGA 492 I/O 672FBGA
|
Stratix® II | Tray | Obsolete | 1.15V ~ 1.25V | Surface Mount | 0°C ~ 85°C (TJ) | 672-BBGA | 672-FBGA (27x27) | Not Verified | 60440 |
|

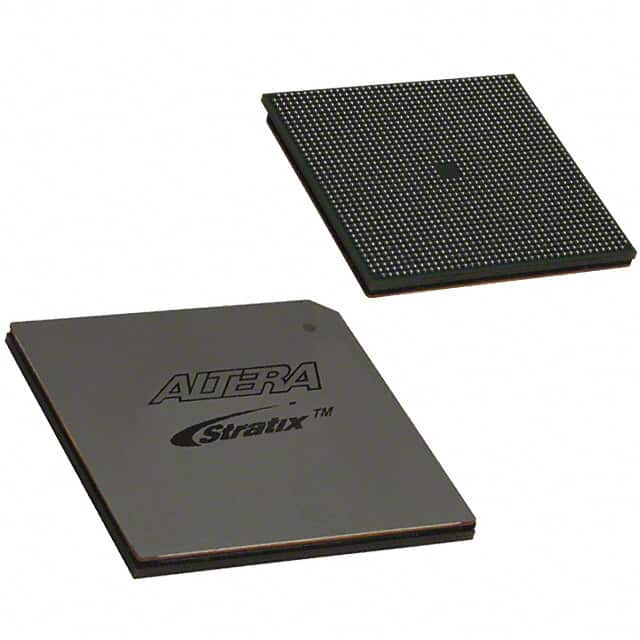

EP2S90F1508C3N
IC FPGA 902 I/O 1508FBGA
|
Stratix® II | Tray | Obsolete | 1.15V ~ 1.25V | Surface Mount | 0°C ~ 85°C (TJ) | 1508-BBGA, FCBGA | 1508-FBGA, FC (40x40) | Not Verified | 90960 |
|

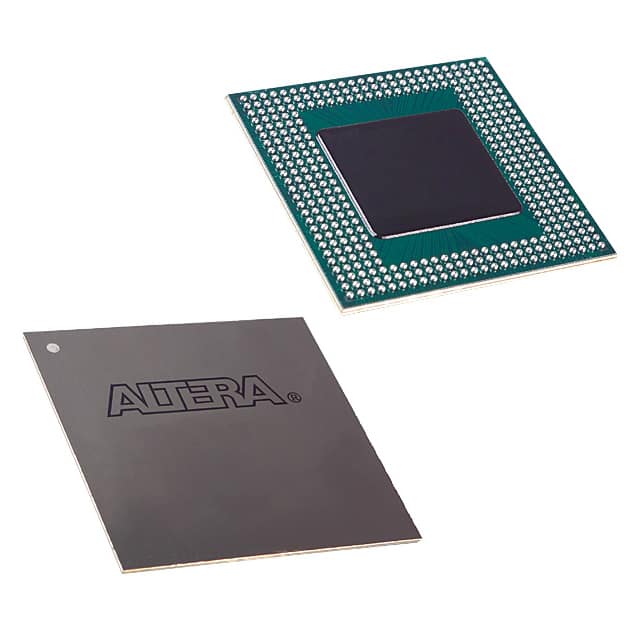

EP20K100CB356C7ES
IC FPGA 252 I/O 356BGA
|
APEX-20K® | Tray | Obsolete | 2.375V ~ 2.625V | Surface Mount | 0°C ~ 85°C (TJ) | 356-LBGA | 356-BGA (35x35) | Not Verified | 4160 |
|

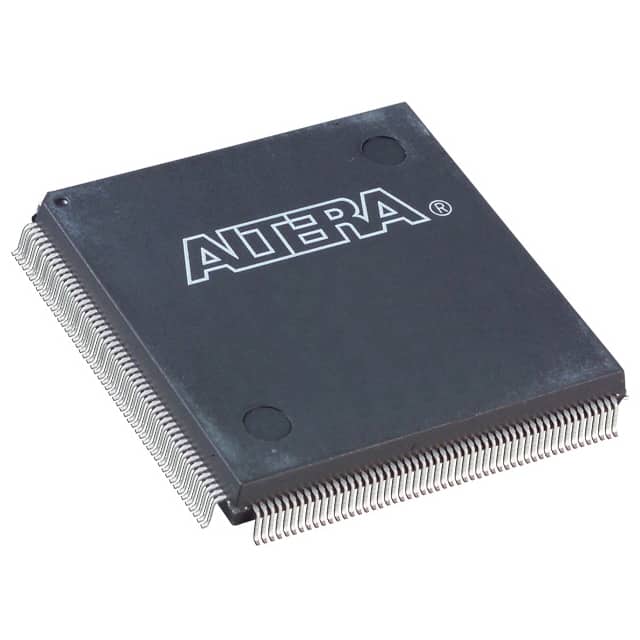

EP20K100CQ208C7
IC FPGA 159 I/O 208QFP
|
APEX-20K® | Tray | Obsolete | 2.375V ~ 2.625V | Surface Mount | 0°C ~ 85°C (TJ) | 208-BFQFP | 208-PQFP (28x28) | Not Verified | 4160 |
|
EP20K200EQC208-1X
IC FPGA 136 I/O 208QFP
|
APEX-20K® | Bulk | Active | 1.71V ~ 1.89V | Surface Mount | 0°C ~ 85°C (TJ) | 208-BFQFP | 208-PQFP (28x28) | Not Verified | 8320 |
|
EP20K200FC484-4
IC FPGA 382 I/O 484FBGA
|
APEX-20K® | Tray | Obsolete | 2.375V ~ 2.625V | Surface Mount | 0°C ~ 85°C (TJ) | 484-BBGA | 484-FBGA (23x23) | Not Verified | 8320 |
|
5CGTFD7D5F27I7N
IC FPGA 336 I/O 672FBGA
|
Cyclone® V GT | Tray | Active | 1.07V ~ 1.13V | Surface Mount | -40°C ~ 100°C (TJ) | 672-BGA | 672-FBGA (27x27) | Not Verified | 149500 |
|
EP20K200QC208-1
IC FPGA 144 I/O 208QFP
|
APEX-20K® | Tray | Obsolete | 2.375V ~ 2.625V | Surface Mount | 0°C ~ 85°C (TJ) | 208-BFQFP | 208-PQFP (28x28) | Not Verified | 8320 |
|
EP1M120F484C6
IC FPGA 303 I/O 484FBGA
|
Mercury | Tray | Obsolete | 1.71V ~ 1.89V | Surface Mount | 0°C ~ 85°C (TJ) | 484-BBGA, FCBGA | 484-FBGA (23x23) | Not Verified | 4800 |
