| Image | Mfr Part # | Series | Package | Product Status | Voltage - Supply | Mounting Type | Operating Temperature | Package / Case | Supplier Device Package | Programmable | Number of Logic Elements/Cells |
|---|---|---|---|---|---|---|---|---|---|---|---|
|
5SGSMD6K3F40C4G
IC FPGA 696 I/O 1517FBGA
|
Stratix® V GS | Tray | Active | 0.82V ~ 0.88V | Surface Mount | 0°C ~ 85°C (TJ) | 1517-BBGA, FCBGA | 1517-FBGA (40x40) | Not Verified | 583000 |
|

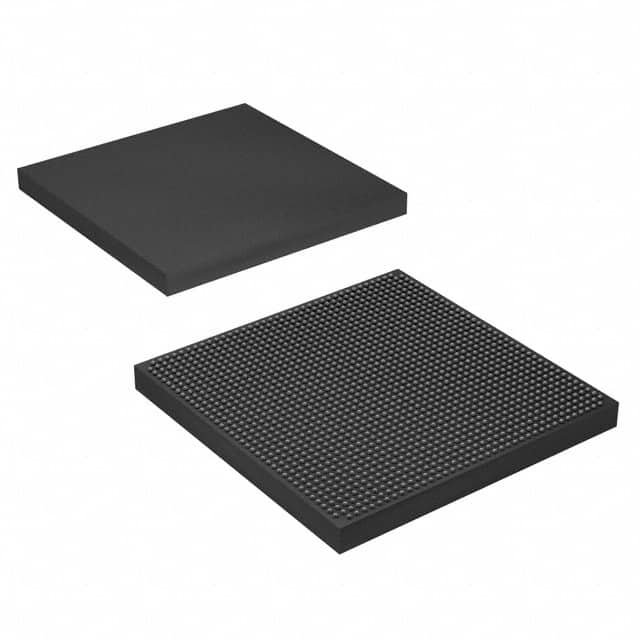

10AX115R3F40I2SGE2
IC FPGA 342 I/O 1517FCBGA
|
Arria 10 GX | Tray | Discontinued at | 0.87V ~ 0.93V | Surface Mount | -40°C ~ 100°C (TJ) | 1517-BBGA, FCBGA | 1517-FCBGA (40x40) | Not Verified | 1150000 |
|
5AGXBB1D4F40C4N
IC FPGA 704 I/O 1517FBGA
|
Arria V GX | Tray | Obsolete | 1.07V ~ 1.13V | Surface Mount | 0°C ~ 85°C (TJ) | 1517-BBGA | 1517-FBGA (40x40) | Not Verified | 300000 |
|
5AGXBA5D4F35I5N
IC FPGA 544 I/O 1152FBGA
|
Arria V GX | Tray | Obsolete | 1.07V ~ 1.13V | Surface Mount | -40°C ~ 100°C (TJ) | 1152-BBGA, FCBGA Exposed Pad | 1152-FBGA (35x35) | Not Verified | 190000 |
|
1ST110EN3F43I3VGAS
IC FPGA 440 I/O 1760FBGA
|
Stratix® 10 TX | Tray | Active | 0.77V ~ 0.97V | Surface Mount | -40°C ~ 100°C (TJ) | 1760-BBGA, FCBGA | 1760-FBGA (42.5x42.5) | Not Verified | 1100000 |
|
5SEEBH40C2L
IC FPGA 696 I/O 1517HBGA
|
Stratix® V E | Tray | Obsolete | 0.82V ~ 0.88V | Surface Mount | 0°C ~ 85°C (TJ) | 1517-BBGA, FCBGA | 1517-HBGA (45x45) | Not Verified | 952000 |
|
5SEE9F45I3G
IC FPGA 840 I/O 1932FBGA
|
Stratix® V E | Tray | Active | 0.82V ~ 0.88V | Surface Mount | -40°C ~ 100°C (TJ) | 1932-BBGA, FCBGA | 1932-FBGA, FC (45x45) | Not Verified | 840000 |
|
EP2A15F672C7N
IC FPGA 492 I/O 672FBGA
|
APEX II | Tray | Obsolete | 1.425V ~ 1.575V | Surface Mount | 0°C ~ 85°C (TJ) | 672-BBGA | 672-FBGA (27x27) | Not Verified | 16640 |
|
10AX090N3F40I2SG
IC FPGA 600 I/O 1517FCBGA
|
Arria 10 GX | Tray | Active | 0.87V ~ 0.93V | Surface Mount | -40°C ~ 100°C (TJ) | 1517-BBGA, FCBGA | 1517-FCBGA (40x40) | Not Verified | 900000 |
|
5AGXMA7D4F27I3N
IC FPGA 336 I/O 672FBGA
|
Arria V GX | Tray | Obsolete | 1.12V ~ 1.18V | Surface Mount | -40°C ~ 100°C (TJ) | 672-BBGA, FCBGA | 672-FBGA (27x27) | Not Verified | 242000 |
|
1ST250EU2F50E2VG
IC FPGA 440 I/O 2397BGA
|
Stratix® 10 TX | Tray | Active | 0.77V ~ 0.97V | Surface Mount | 0°C ~ 100°C (TJ) | 2397-BBGA, FCBGA | 2397-FBGA, FC (50x50) | Not Verified | 2500000 |
|
EP20K1000CF672C9ES
IC FPGA 508 I/O 672FBGA
|
APEX-20KC® | Tray | Obsolete | 1.71V ~ 1.89V | Surface Mount | 0°C ~ 85°C (TJ) | 672-BBGA | 672-FBGA (27x27) | Not Verified | 38400 |
