| Image | Mfr Part # | Series | Package | Product Status | Voltage - Supply | Mounting Type | Operating Temperature | Package / Case | Supplier Device Package | Programmable | Number of Logic Elements/Cells |
|---|---|---|---|---|---|---|---|---|---|---|---|
|
5SGSMD4H3F35I4G
IC FPGA 432 I/O 1152FBGA
|
Stratix® V GS | Tray | Active | 0.82V ~ 0.88V | Surface Mount | -40°C ~ 100°C (TJ) | 1152-BBGA, FCBGA | 1152-FBGA (35x35) | Not Verified | 360000 |
|
10AX115U3F45E2SG
IC FPGA 480 I/O 1932FCBGA
|
Arria 10 GX | Tray | Active | 0.87V ~ 0.93V | Surface Mount | 0°C ~ 100°C (TJ) | 1932-BBGA, FCBGA | 1932-FCBGA (45x45) | Not Verified | 1150000 |
|
10AX032H2F34E2LG
IC FPGA 384 I/O 1152FBGA
|
Arria 10 GX | Tray | Active | 0.87V ~ 0.98V | Surface Mount | 0°C ~ 100°C (TJ) | 1152-BBGA, FCBGA | 1152-FBGA, FC (35x35) | Not Verified | 320000 |
|

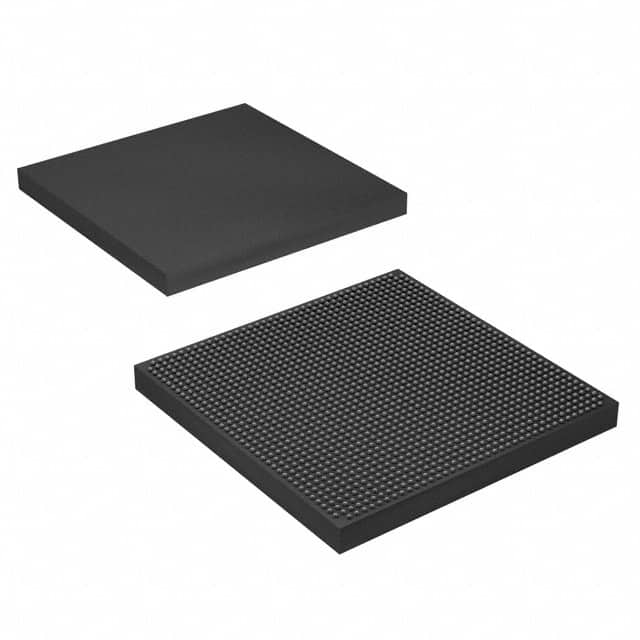

10AX115N2F40I1SG
IC FPGA 600 I/O 1517FCBGA
|
Arria 10 GX | Tray | Active | 0.87V ~ 0.98V | Surface Mount | -40°C ~ 100°C (TJ) | 1517-BBGA, FCBGA | 1517-FCBGA (40x40) | Not Verified | 1150000 |
|
10AX066N2F40I2SGES
IC FPGA 588 I/O 1517FCBGA
|
Arria 10 GX | Tray | Discontinued at | 0.87V ~ 0.98V | Surface Mount | -40°C ~ 100°C (TJ) | 1517-BBGA, FCBGA | 1517-FCBGA (40x40) | Not Verified | 660000 |
|
EP4SE530H40I4N
IC FPGA 976 I/O 1517HBGA
|
STRATIX® IV E | Tray | Obsolete | 0.87V ~ 0.93V | Surface Mount | -40°C ~ 100°C (TJ) | 1517-BBGA, FCBGA | 1517-HBGA (42.5x42.5) | Not Verified | 531200 |
|
EP4SGX180HF35C2G
IC FPGA 564 I/O 1152FBGA
|
* | Tray | Active | - | - | - | - | - | Not Verified | - |
|

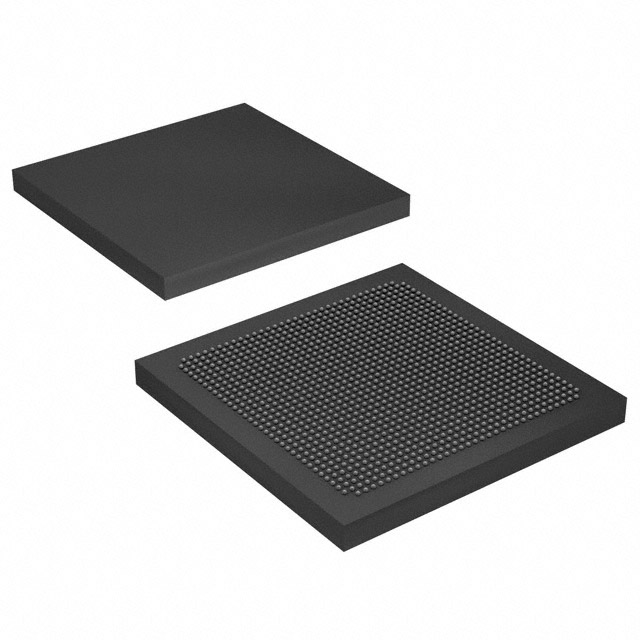

EP4SGX230FF35I3G
IC FPGA 564 I/O 1152FBGA
|
* | Tray | Active | - | - | - | - | - | Not Verified | - |
|
5SGSMD3E3H29C3G
IC FPGA 360 I/O 780HBGA
|
Stratix® V GS | Tray | Active | 0.82V ~ 0.88V | Surface Mount | 0°C ~ 85°C (TJ) | 780-BBGA, FCBGA | 780-HBGA (33x33) | Not Verified | 236000 |
|
10AX115U2F45I2LG
IC FPGA 480 I/O 1932FCBGA
|
Arria 10 GX | Tray | Active | 0.87V ~ 0.98V | Surface Mount | -40°C ~ 100°C (TJ) | 1932-BBGA, FCBGA | 1932-FCBGA (45x45) | Not Verified | 1150000 |
|
|
10AX066K2F40I1SG
IC FPGA 696 I/O 1517FCBGA
|
Arria 10 GX | Tray | Discontinued at | 0.87V ~ 0.98V | Surface Mount | -40°C ~ 100°C (TJ) | 1517-BBGA, FCBGA | 1517-FCBGA (40x40) | Not Verified | 660000 |
|
EP4SE530F43C2N
IC FPGA 1120 I/O 1760FCBGA
|
STRATIX® IV E | Tray | Obsolete | 0.87V ~ 0.93V | Surface Mount | 0°C ~ 85°C (TJ) | 1760-BBGA, FCBGA | 1760-FCBGA (42.5x42.5) | Not Verified | 531200 |
